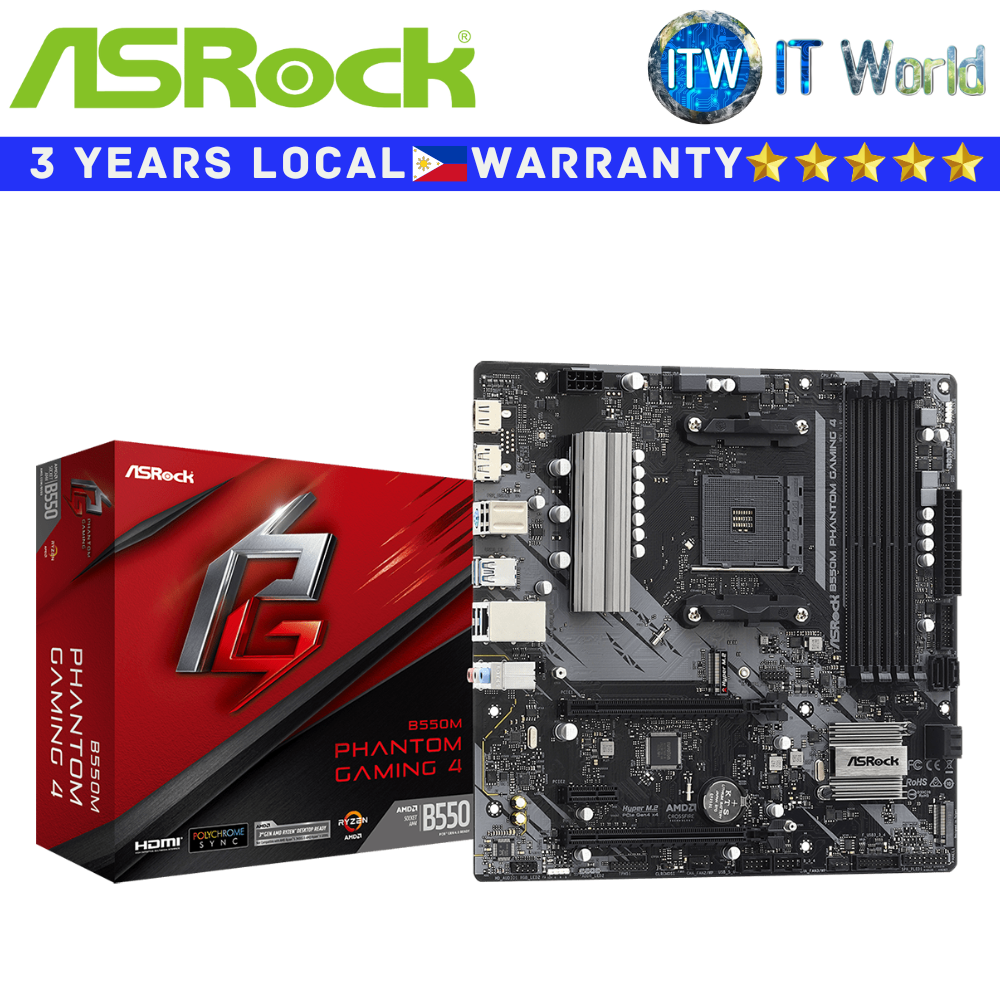

Product Name: Itw | ASRock Motherboard B550M Phantom Gaming 4 microATX AM4 DDR4
Specification
CPU
> Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
> Digi Power design
> 8 Power Phase design
Chipset
> AMD B550
Memory
> Dual Channel DDR4 Memory Technology
> 4 x DDR4 DIMM Slots
> AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
> Max. capacity of system memory: 128GB**
> Supports Extreme Memory Profile (XMP) memory modules
> 15μ Gold Contact in DIMM Slots
Graphics
> Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
> DirectX 12, Pixel Shader 5.0
> Shared memory default 2GB. Max Shared memory supports up to 16GB.**
> Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
> Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
> Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
> Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
> Supports HDR (High Dynamic Range) with HDMI 2.1
> Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***
> Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
> Supports Microsoft® PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio
> 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
> Supports Surge Protection
LAN
> PCIE x1 Gigabit LAN 10/100/1000 Mb/s
> Realtek RTL8111H
> Supports Wake-On-LAN
> Supports Lightning/ESD Protection
> Supports Energy Efficient Ethernet 802.3az
> Supports PXE
Slots
> AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Cezanne and Renoir)
-2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Picasso)
-2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
-1 x PCI Express 3.0 x1 Slot
-Supports AMD Quad CrossFireX™ and CrossFireX™
*Supports NVMe SSD as boot disks
Storage
> 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
> 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*
> 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)*
*Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Rear Panel I/O
> 1 x PS/2 Mouse/Keyboard Port
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
> 2 x USB 2.0 Ports (Supports ESD Protection)
> 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
> Solid Capacitor design
> 2oz Copper PCB
