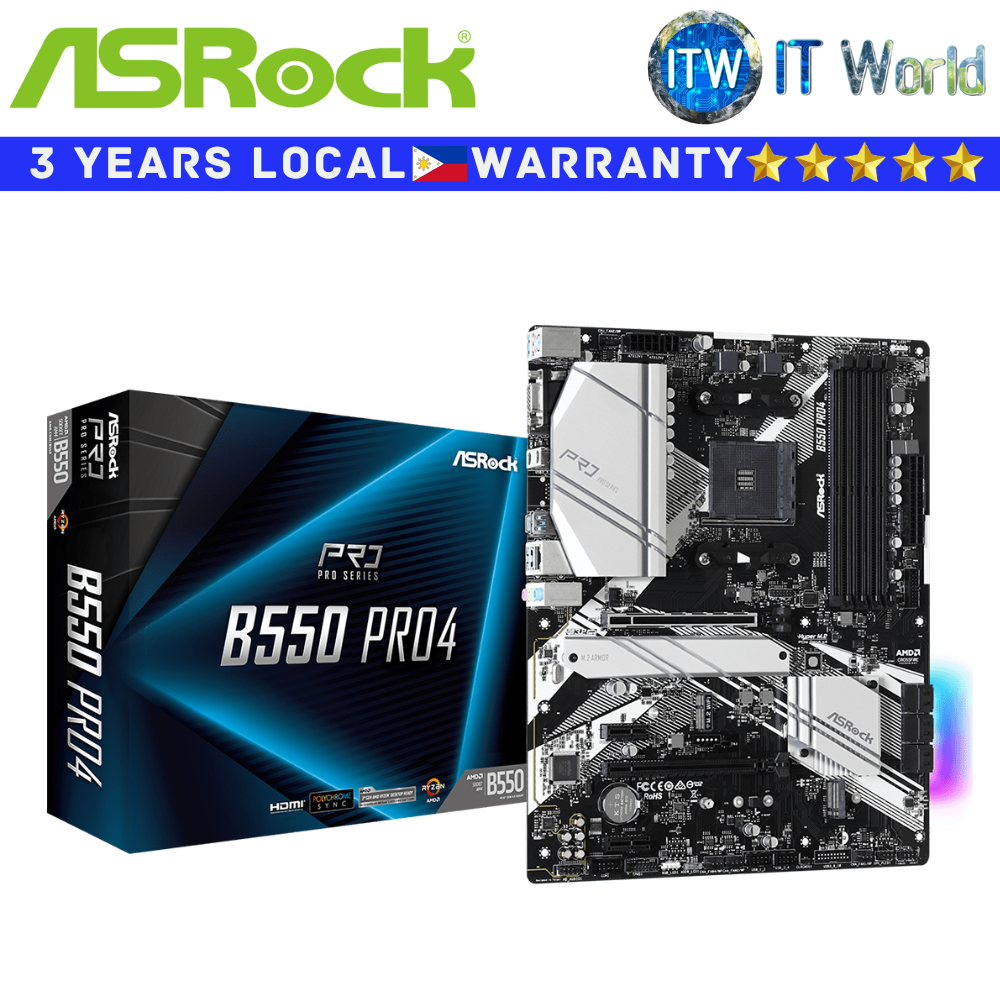

Product Name: Itw | ASRock Motherboard B550 Pro4 ATX AM4 DDR4
Specification
CPU
> Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
> Digi Power design
> 8 Power Phase design
Chipset
> AMD B550
Memory
> Dual Channel DDR4 Memory Technology
> 4 x DDR4 DIMM Slots
> AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Picasso) support DDR4 3400+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
> Max. capacity of system memory: 128GB*
> Supports Extreme Memory Profile (XMP) memory modules
> 15μ Gold Contact in DIMM Slots
Graphics
> Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
> DirectX 12, Pixel Shader 5.0
> Shared memory default 2GB. Max Shared memory supports up to 16GB.**
> Dual graphics output: support HDMI and D-Sub ports by independent display controllers
> Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
> Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
> Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
> Supports HDR (High Dynamic Range) with HDMI 2.1
> Supports HDCP 2.3 with HDMI 2.1 Port***
> Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
> Supports Microsoft® PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec)
> Premium Blu-ray Audio support
> Supports Surge Protection
> PCB Isolate Shielding
> Individual PCB Layers for R/L Audio Channel
> Nahimic Audio
LAN
> PCIE x1 Gigabit LAN 10/100/1000 Mb/s
> Realtek RTL8111H
> Supports Wake-On-LAN
> Supports Lightning/ESD Protection
> Supports Energy Efficient Ethernet 802.3az
> Supports PXE
Slots
> AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Picasso)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks
Storage
> 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
> 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)**
> 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
*M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.
**Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
Rear Panel I/O
> Antenna Bracket
> 1 x PS/2 Mouse/Keyboard Port
> 1 x D-Sub Port
> 1 x HDMI Port
> 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
> 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
> 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
> 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> ATX: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
> Solid Capacitor design
> 2oz Copper PCB
