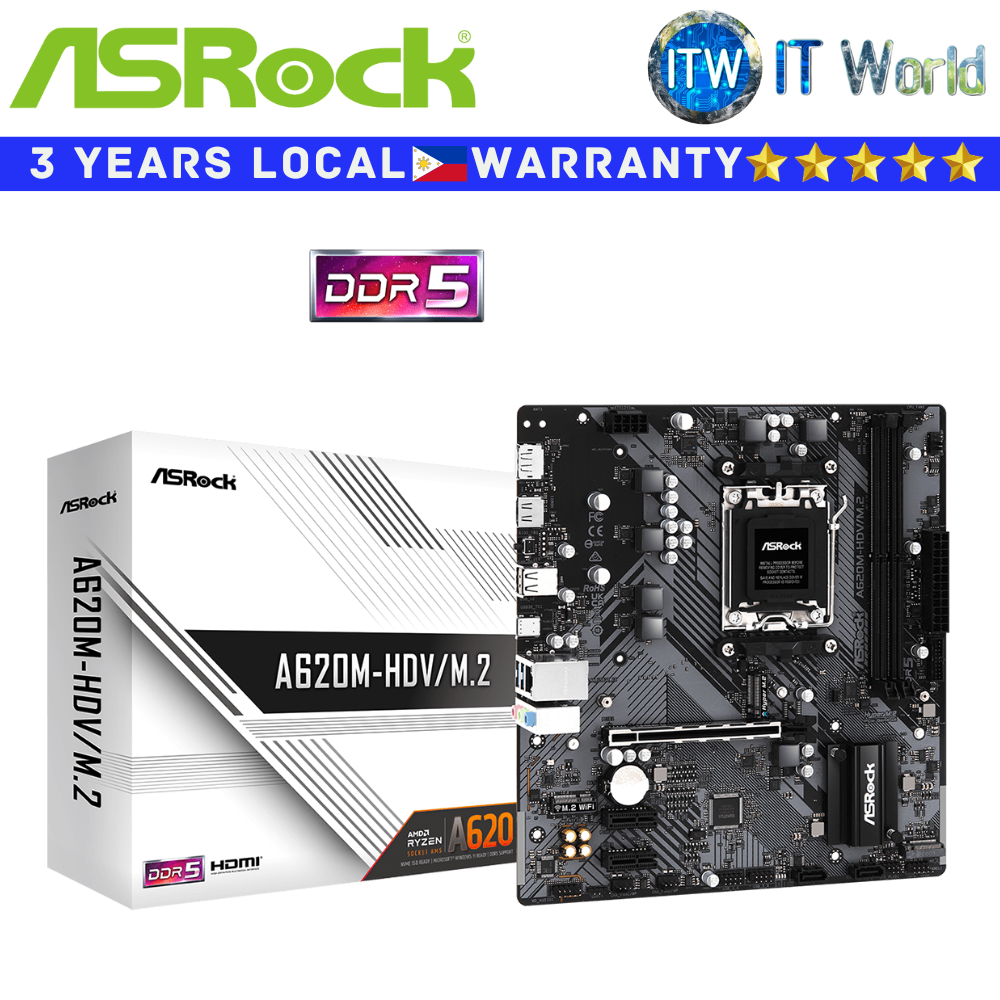

Product Name: Itw | ASRock Motherboard A620M-HDV/M.2 microATX AM5 DDR5
Details
> Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
> 4+1+1 Power Phase, Dr.MOS
> 2 x DDR5 DIMMs
> Supports Dual Channel, up to 6400+ (OC)
> 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
> Integrated AMD RDNA™ 2 Graphics*
> Graphics Output Options: HDMI, DisplayPort
> Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
> 2 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2)
> 5 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 2 Front)
> Realtek Gigabit LAN
> Supports ASRock Auto Driver Installer, BIOS Flashback
*Actual support may vary by CPU
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors*
*Please refer to CPU Support List on ASRock's website for more information. The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
> AMD A620
Memory
> Dual Channel DDR5 Memory Technology
> 2 x DDR5 DIMM Slots
> Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
> Max. capacity of system memory: 96GB
> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
*Please refer to Memory Support List for more information.
BIOS
> 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
> 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
> Nahimic Audio
LAN
> Gigabit LAN 10/100/1000 Mb/s
> Realtek RTL8111H
Slots
> CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
> Chipset
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Storage
> CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
> Chipset
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
RAID
> Supports RAID 0 and RAID 1 for SATA storage devices
> Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
> 1 x USB 3.2 Gen1 Type-C (Rear)
> 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
> 6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection
Connector
> 1 x Power LED and Speaker Header
> 1 x CPU Fan Connector (4-pin)*
> 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector
> 1 x Front Panel Audio Connector
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
> 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
> 2 x Antenna Mounting Points
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 1 x USB 3.2 Gen1 Type-C Port
> 2 x USB 3.2 Gen1 Type-A Ports
> 2 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x BIOS Flashback Button
> HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories
> 1 x User Manual
> 1 x I/O Shield
> 2 x SATA Data Cables
> 3 x Screws for M.2 Sockets
Form Factor
> Micro ATX: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
> 2oz Copper PCB
