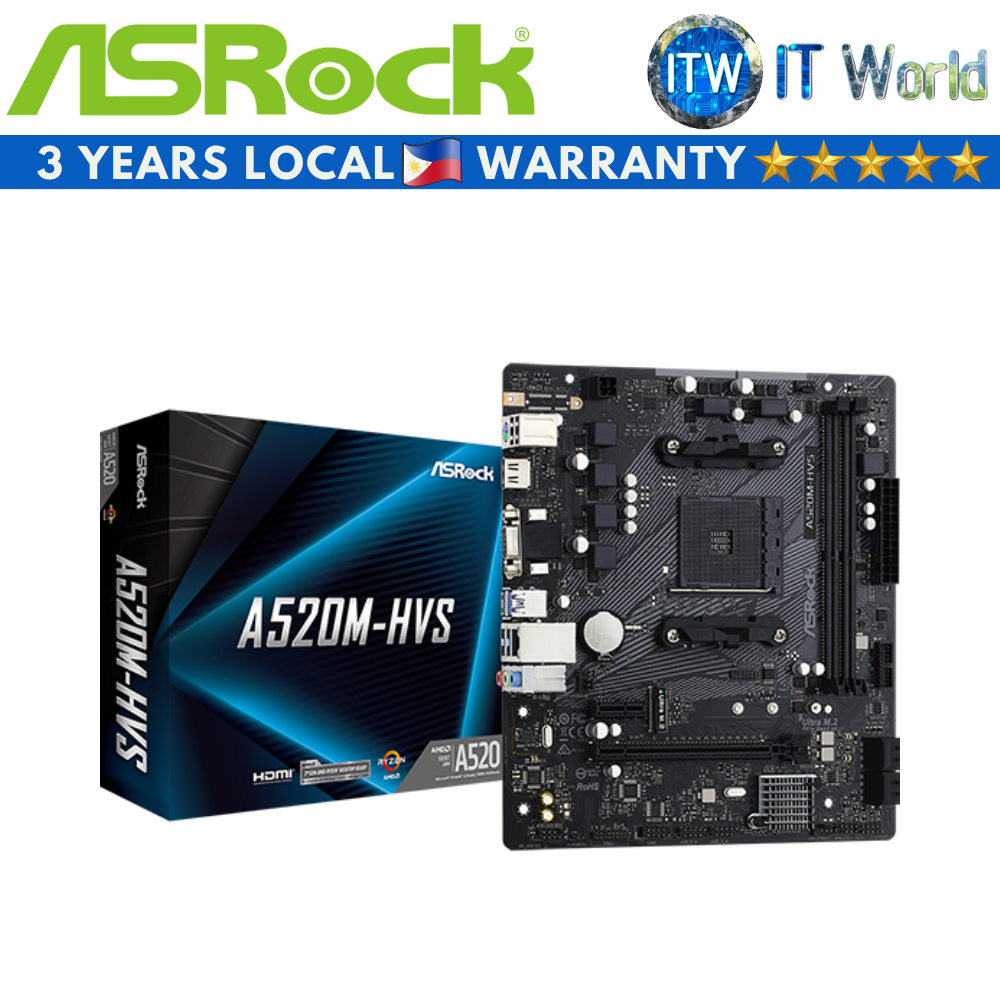

Product Name: Itw | ASRock A520M-HVS micro-ATX AM4 DDR4 Motherboard
Specification
Unique Feature
> ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
> ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
> ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
> ASRock Live Update & APP Shop
CPU
> Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
> 6 Power Phase design
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset
> AMD A520
Memory
> Dual Channel DDR4 Memory Technology
> 2 x DDR4 DIMM Slots
> AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> Max. capacity of system memory: 64GB**
> Supports Extreme Memory Profile (XMP) memory modules
> 5μ Gold Contact in DIMM Slots
Graphics
> Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
> DirectX 12, Pixel Shader 5.0
> Shared memory default 2GB. Max Shared memory supports up to 16GB.**
> Dual graphics output: support D-Sub and HDMI ports by independent display controllers
> Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
> Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
> Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
> Supports HDR (High Dynamic Range) with HDMI 2.1
> Supports HDCP 2.3 with HDMI 2.1 Port
> Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
> Supports Microsoft® PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
> 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
> Supports Surge Protection
LAN
> PCIE x1 Gigabit LAN 10/100/1000 Mb/s
> Realtek RTL8111H
> Supports Wake-On-LAN
> Supports Lightning/ESD Protection
> Supports Energy Efficient Ethernet 802.3az
> Supports PXE
Slots
> 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
> 1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage
> CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
> Chipset: 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
Connector
> 1 x SPI TPM Header
> 1 x COM Port Header
> 1 x Chassis Intrusion and Speaker Header
> 1 x CPU Fan Connector (4-pin)*
> 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
> 1 x 24 pin ATX Power Connector
> 1 x 4 pin 12V Power Connector
> 1 x Front Panel Audio Connector
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
> 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
> 1 x PS/2 Mouse/Keyboard Port
> 1 x D-Sub Port
> 1 x HDMI Port
> 2 x USB 2.0 Ports (Supports ESD Protection)
> 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
> 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
> Solid Capacitor design
