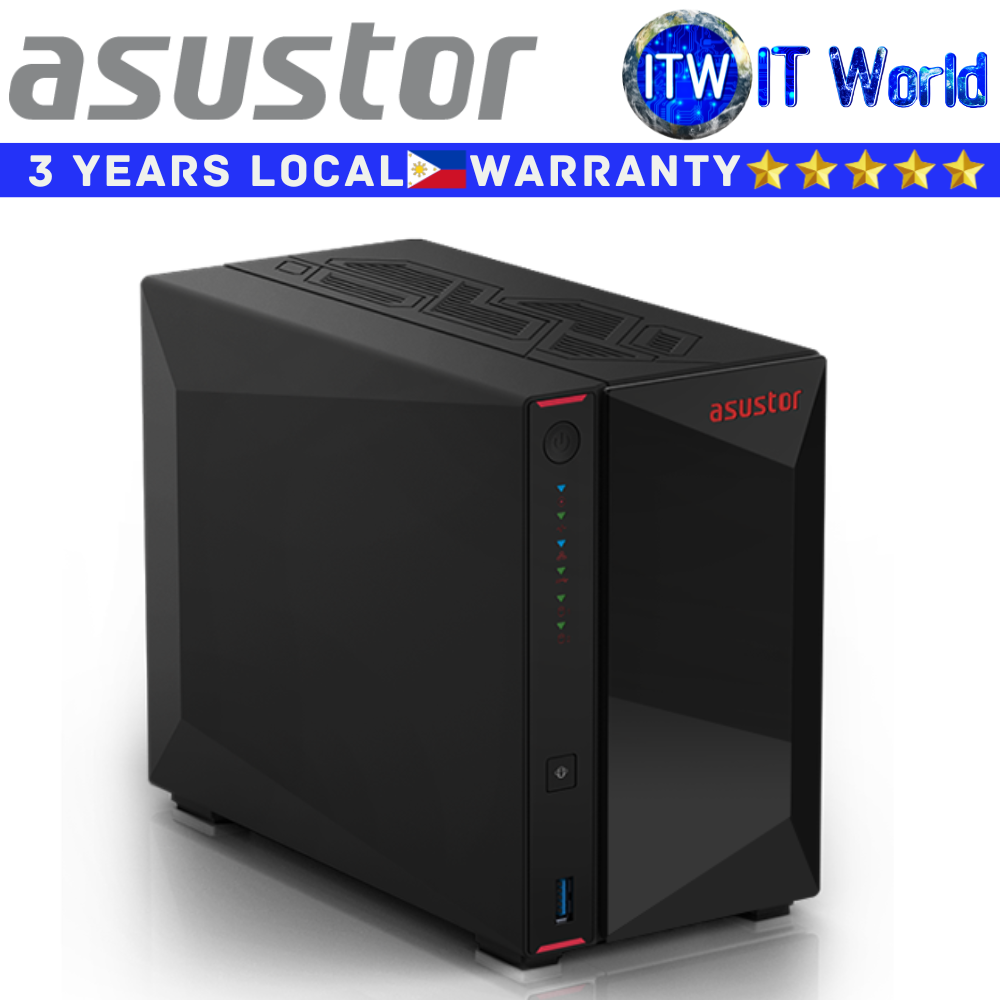

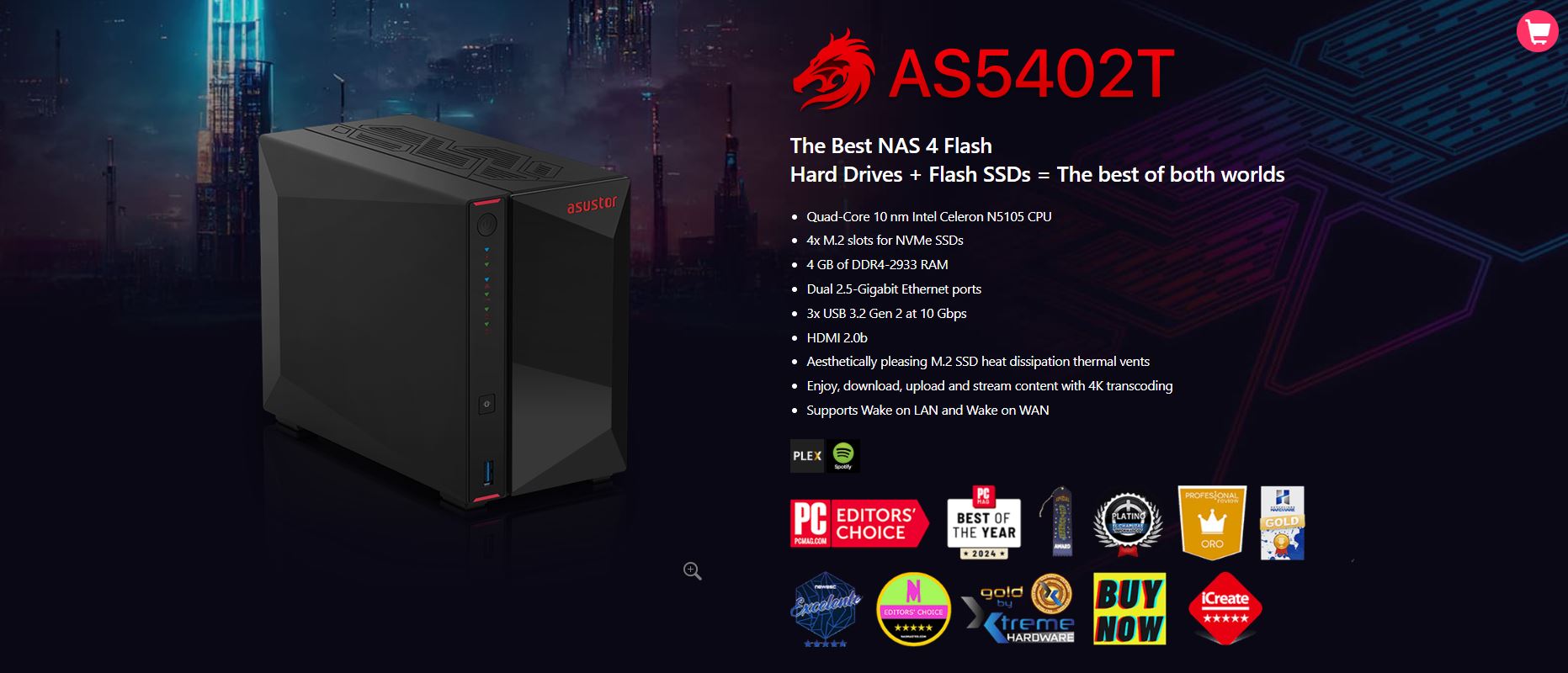

Product Name: Itw | Asustor NAS Storage AS5402T Network Attached Storage
The Best NAS 4 Flash Hard Drives + Flash SSDs = The best of both worlds
> Quad-Core 10 nm Intel Celeron N5105 CPU
> 4x M.2 slots for NVMe SSDs
> 4 GB of DDR4-2933 RAM

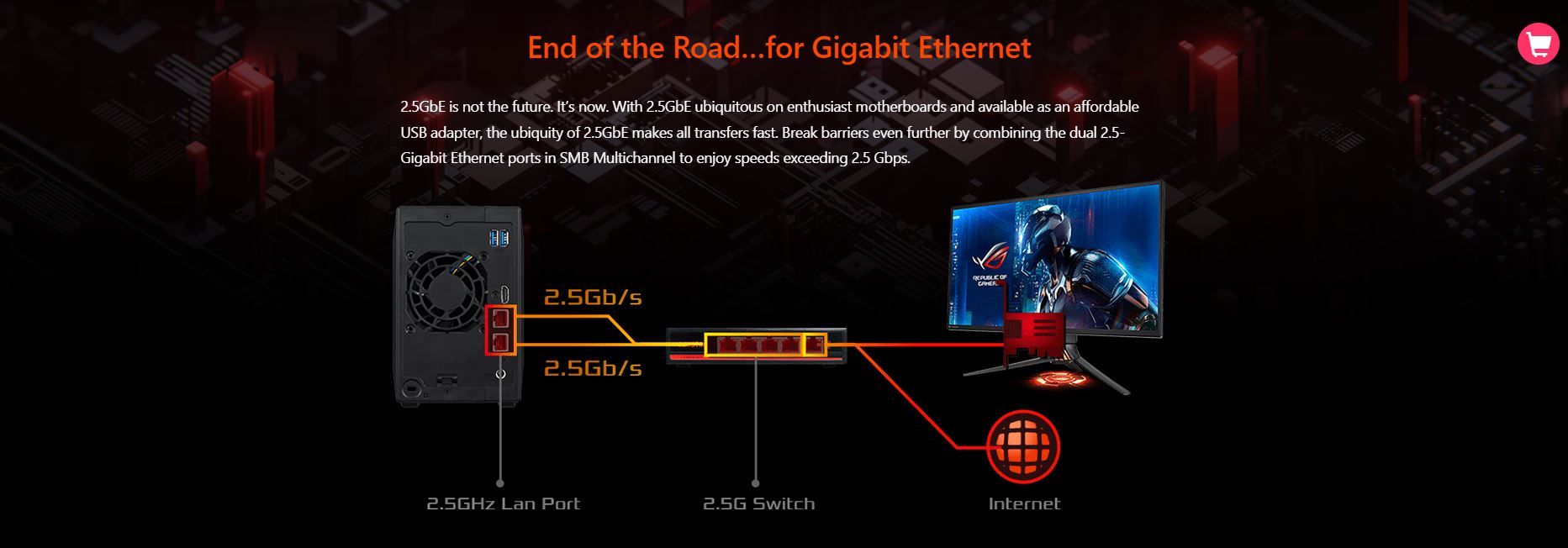

> Dual 2.5-Gigabit Ethernet ports

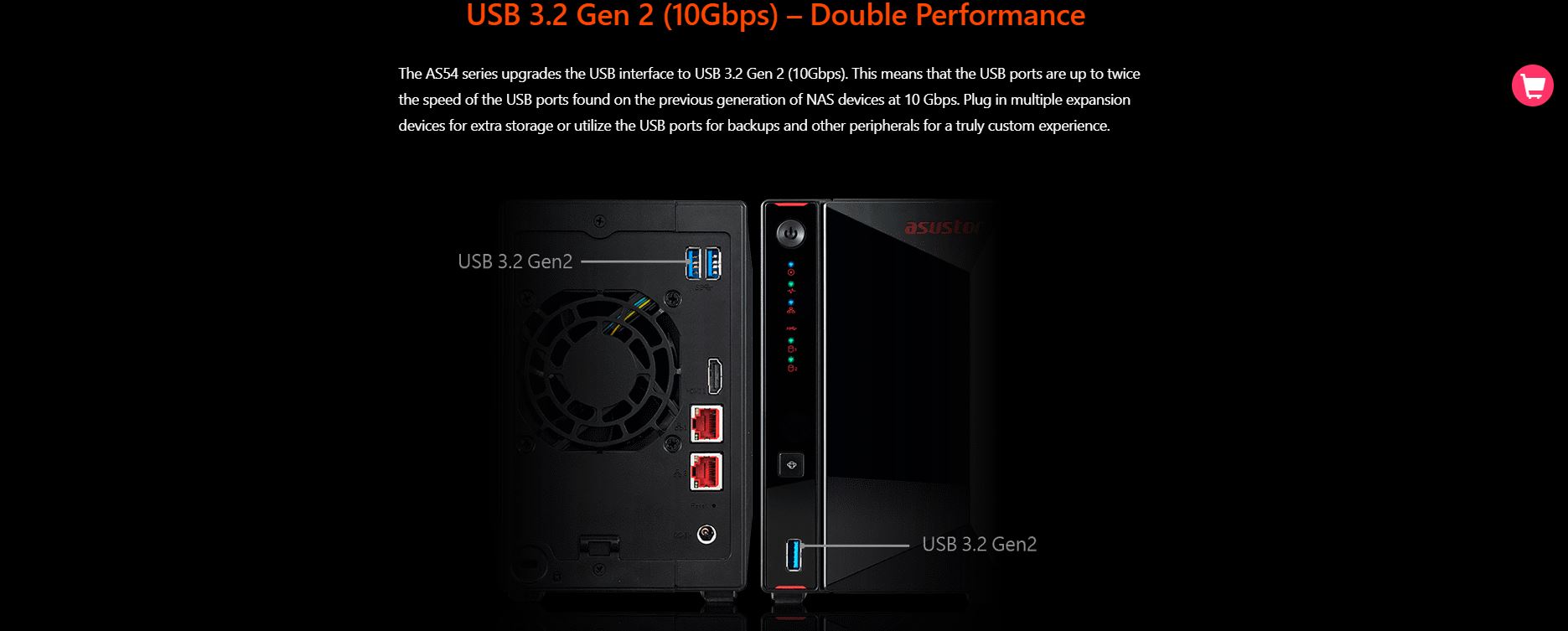

> 3x USB 3.2 Gen 2 at 10 Gbps
> HDMI 2.0b

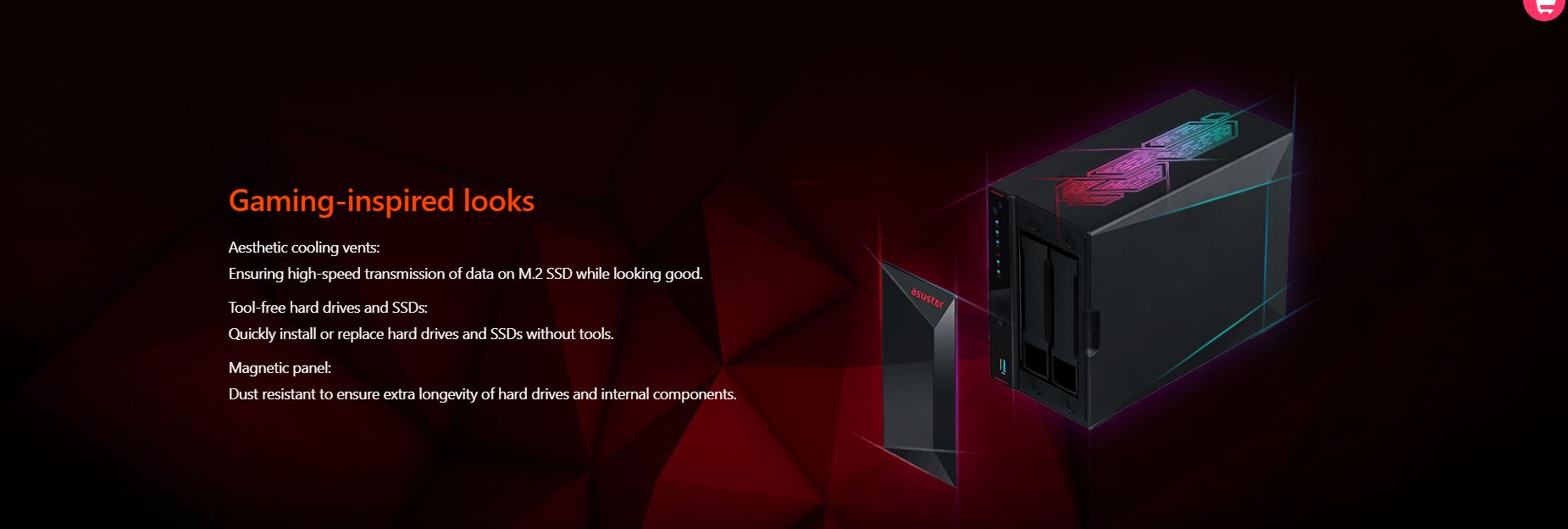

> Aesthetically pleasing M.2 SSD heat dissipation thermal vents
> Enjoy, download, upload and stream content with 4K transcoding
> Supports Wake on LAN and Wake on WAN
Specification
HARDWARE
* CPU
> CPU Model: Intel Celeron N5105
> CPU Architecture: x64 64-bit
> CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
* Memory
> Memory: 4GB SO-DIMM DDR4
> Memory Module Pre-installed: 4GB (1x 4GB)
> Total Memory Slots: 2
> Memory Expandable up to: 16GB (2x 8GB)
- Support mixed capacity
> Flash Memory 8GB eMMC
* Storage
> Drive Bays: 2
> M.2 Drive Slots: 4
> Compatible Drive Type
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe
> M.2 PCIe Interface: PCIe 3.0 x1
> Maximum Drive Bays with Expansion Unit: 14
> Supports Hot Swappable Drives: ✔
* External Ports
> Expansion: 3x USB 3.2 Gen 2 (10Gbps)
> Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
> Multimedia Output: 1x HDMI 2.0b
* Others
> System Fan: 1x 70mm
> Infrared Receiver: ✔
> Power Supply Unit / Adapter: 65W x1
> Input Power Voltage: 100V to 240V AC
> Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
* Operation
> Power Consumption
- 22.9 W (Operation)
- 12.7 W (Disk Hibernation)
- 0.71 W (Sleep Mode)
> Noise Level 18.6dB (HDD idle)
> Operation Temperature: 0°C~40°C (32°F~104°F)
> Storage Temperature: -20°C~70°C (-4°F~158°F)
> Humidity: 5% to 95% RH
* Size and Weight
> Size: 170 (H) x 114 (W) x 230 (D) mm
> Weight: 1.71 kg / 3.77 lb
SOFTWARE & FEATURES
General
* Supported OS
> Windows 10, 11, Server 2016, Server 2019, Server 2022
> macOS
> UNIX, Linux, and BSD
* Supported Browsers
> Firefox
> Chrome
> Safari
> Microsoft Edge
* Network
> Network Protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
> Connection and transmission
- TCP/IP (IPv4 & IPv6)
- Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
- Jumbo Frame (MTU)
- VLAN
- EZ Connect
- Wireless Network
- DDNS and EZ-Router
- Supports Wake-on-LAN (WOL)
- Supports Wake-on-WAN (WOW)
* File Management & Sharing
> File System
- Internal Disk: EXT4 ,Btrfs
- External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
> File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
> Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
~ File size
~ File extension
- Deletion Settings
~ File size
~ File date
* Storage management
> Supported RAID levels
- Single
- JBOD
- RAID 0
- RAID 1
> Supported RAID migration methods
- Single to RAID 1
* Volume
> RAID levels supporting storage expansion by complete drive replacement
- RAID 1
> RAID levels supporting storage expansion by drive addition: -
> RAID spare drive support: -
> Supported RAID levels
- Single
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
> Supported RAID migration methods
- Single to RAID 1
- Single to RAID 5
- Single to RAID 6
- Single to RAID 10
- RAID 1 to RAID 5
- RAID 1 to RAID 6
- RAID 1 to RAID 10
- RAID 5 to RAID 6
* M.2 Volume
> RAID levels supporting storage expansion by complete drive replacement
- RAID 1
- RAID 5
- RAID 6
- RAID 10
> RAID levels supporting storage expansion by drive addition
- RAID 5
> Supported RAID migration methods
- RAID 1
- RAID 5
> MyArchive
- Hot swappable design enables easy transfer or exchange of high amounts of data
- Works on any empty bay on an ASUSTOR NAS
- File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
- Supports AES 256-bit encryption on EXT4 and Btrfs
- Supports Btrfs snapshots
- Supports decryption with a USB key
