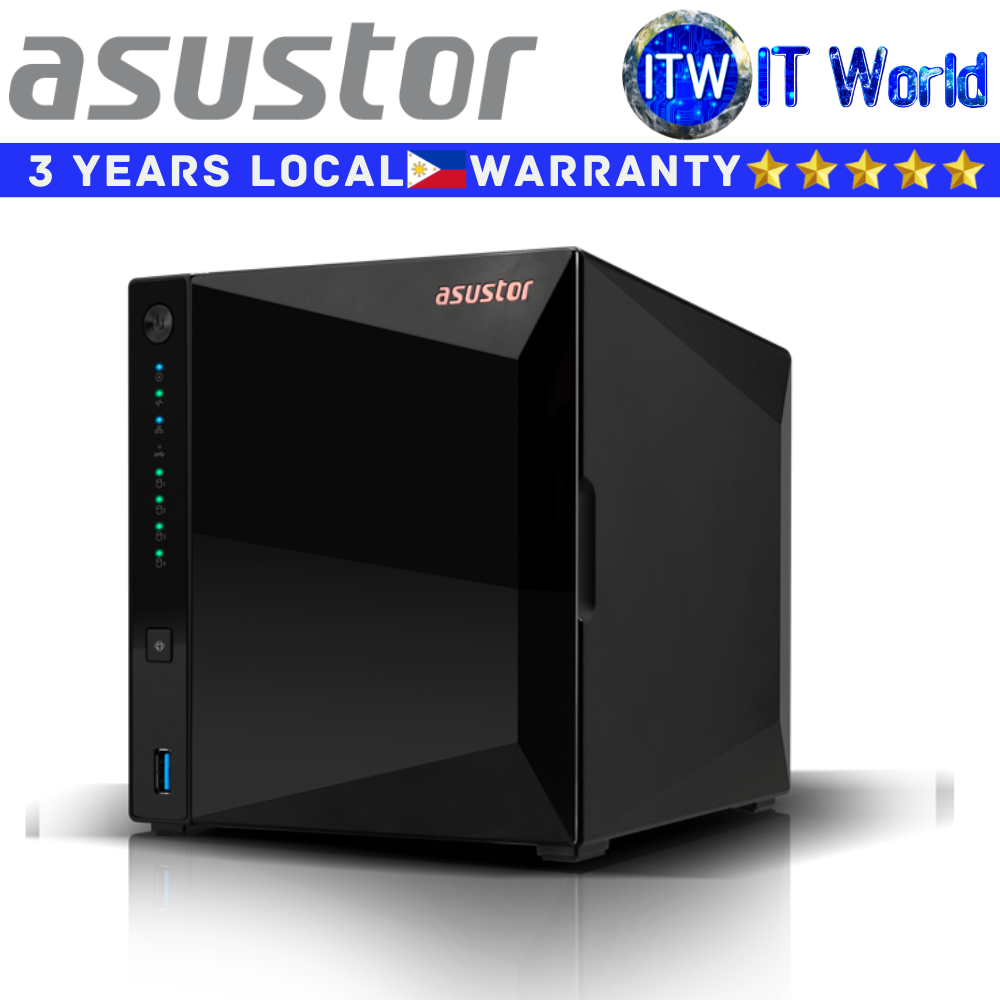

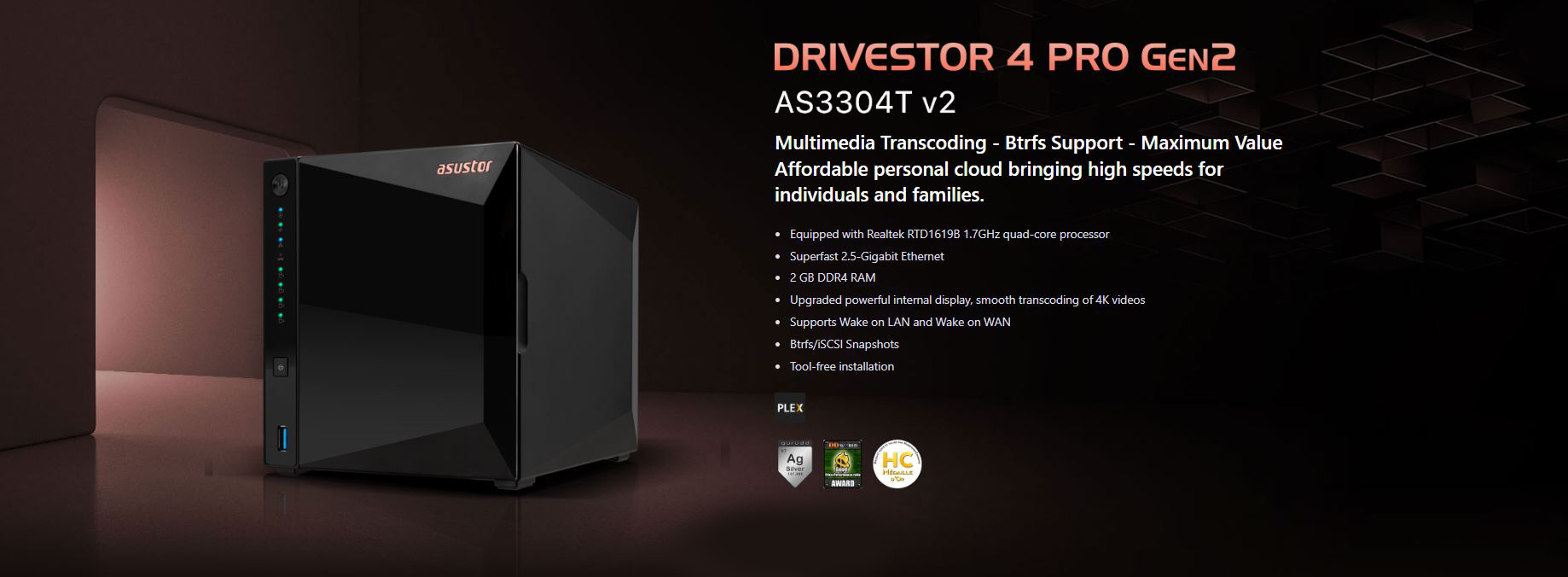

Product Name: Itw | Asustor NAS Storage Drivestor 4 Pro Gen2 AS3304T V2 Network Attached Storage
Multimedia Transcoding - Btrfs Support - Maximum Value Affordable personal cloud bringing high speeds for individuals and families.
> Equipped with Realtek RTD1619B 1.7GHz quad-core processor

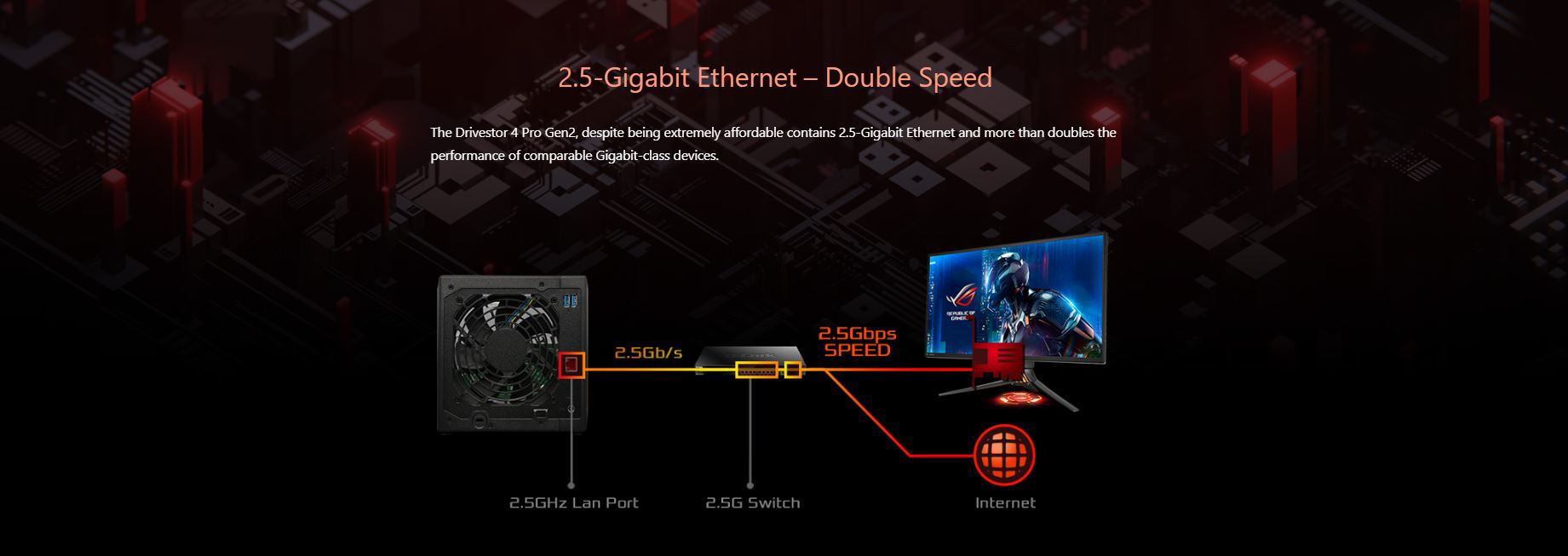

> Superfast 2.5-Gigabit Ethernet
> 2 GB DDR4 RAM
> Upgraded powerful internal display, smooth transcoding of 4K videos
> Supports Wake on LAN and Wake on WAN
> Btrfs/iSCSI Snapshots

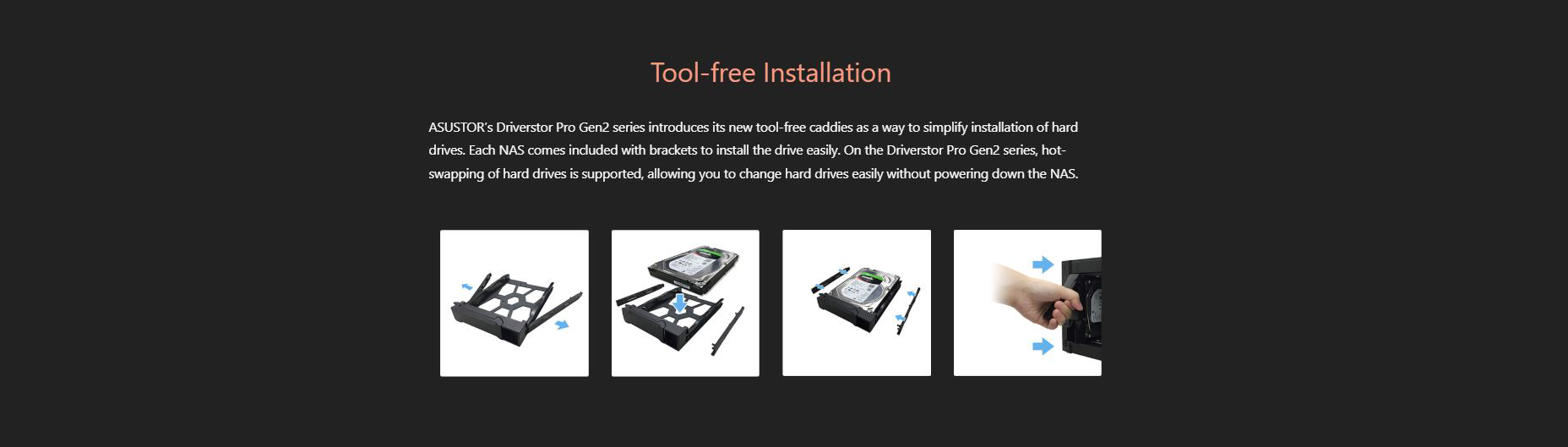

> Tool-free installation
Specification
HARDWARE
* CPU
> CPU Model: Realtek RTD1619B
> CPU Architecture: ARM64 64-bit
> CPU Frequency: Quad-Core 1.7GHz
* Memory
> Memory: 2GB DDR4
> Memory Expandable up to: not expandable
> Flash Memory: 8GB eMMC
* Storage
> Drive Bays: 4
> Compatible Drive Type
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
> Maximum Drive Bays with Expansion Unit: 16
> Supports Hot Swappable Drives: ✔
* External Ports
> Expansion: 3x USB 3.2 Gen 1
> Network: 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
> Multimedia Output: N/A
* Others
> System Fan: 1x 120mm
> Power Supply Unit / Adapter: 90W x1
> Input Power Voltage: 100V to 240V AC
> Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
* Operation
> Power Consumption: 25.1W (Operation) 8.4W (Disk Hibernation);
> Noise Level: 19.7dB (HDD idle)
* Operation
> Temperature: 0°C~40°C (32°F~104°F)
> Storage Temperatur: -20°C~70°C (-4°F~158°F)
> Humidity: 5% to 95% RH
* Size and Weight
> Size: 170(H) x 174(W) x 230(D) mm
> Weight: 2.2 kg / 4.85 lbs
SOFTWARE & FEATURES
* General
> Supported OS
- Windows 10, 11, Server 2016, Server 2019, Server 2022
- macOS
- UNIX, Linux, and BSD
> Supported Browsers
- Firefox
- Chrome
- Safari
- Microsoft Edge
* Network
> Network Protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
> Connection and transmission
- TCP/IP (IPv4 & IPv6)
- Link Aggregation: 0
- Jumbo Frame (MTU)
- VLAN
- EZ Connect
- Wireless Network
- DDNS and EZ-Router
- Supports Wake-on-LAN (WOL)
- Supports Wake-on-WAN (WOW)
* File Management & Sharing
> File System
- Internal Disk: EXT4 ,Btrfs
- External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
> File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
> Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
- File size
- File extension
- Deletion Settings
- File size
- File date
* Storage management
> Supported RAID levels
- Single
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
> Supported RAID migration methods
- Single to RAID 1
- Single to RAID 5
- Single to RAID 6
- Single to RAID 10
- RAID 1 to RAID 5
- RAID 1 to RAID 6
- RAID 1 to RAID 10
- RAID 5 to RAID 6
* Volume
> RAID levels supporting storage expansion by complete drive replacement
- RAID 1
- RAID 5
- RAID 6
- RAID 10
> RAID levels supporting storage expansion by drive addition
- RAID 5
> RAID spare drive support
- RAID 1
- RAID 5
> MyArchive
- Hot swappable design enables easy transfer or exchange of high amounts of data
- Works on any empty bay on an ASUSTOR NAS
- File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
- Supports AES 256-bit encryption on EXT4 and Btrfs
- Supports Btrfs snapshots
- Supports decryption with a USB key
> iSCSI/IP-SAN
- Maximum Targets: 256
- Maximum LUNs: 256
- Maximum Snapshot Versions of a Single LUN: 256
- Target Masking
- LUN Mapping
- ISO File Mounting
- Supports MPIO
- Persistent (SCSI-3) Reservations
> Disk Management
- Scheduled Bad Block Scans
- Scheduled S.M.A.R.T Scans
