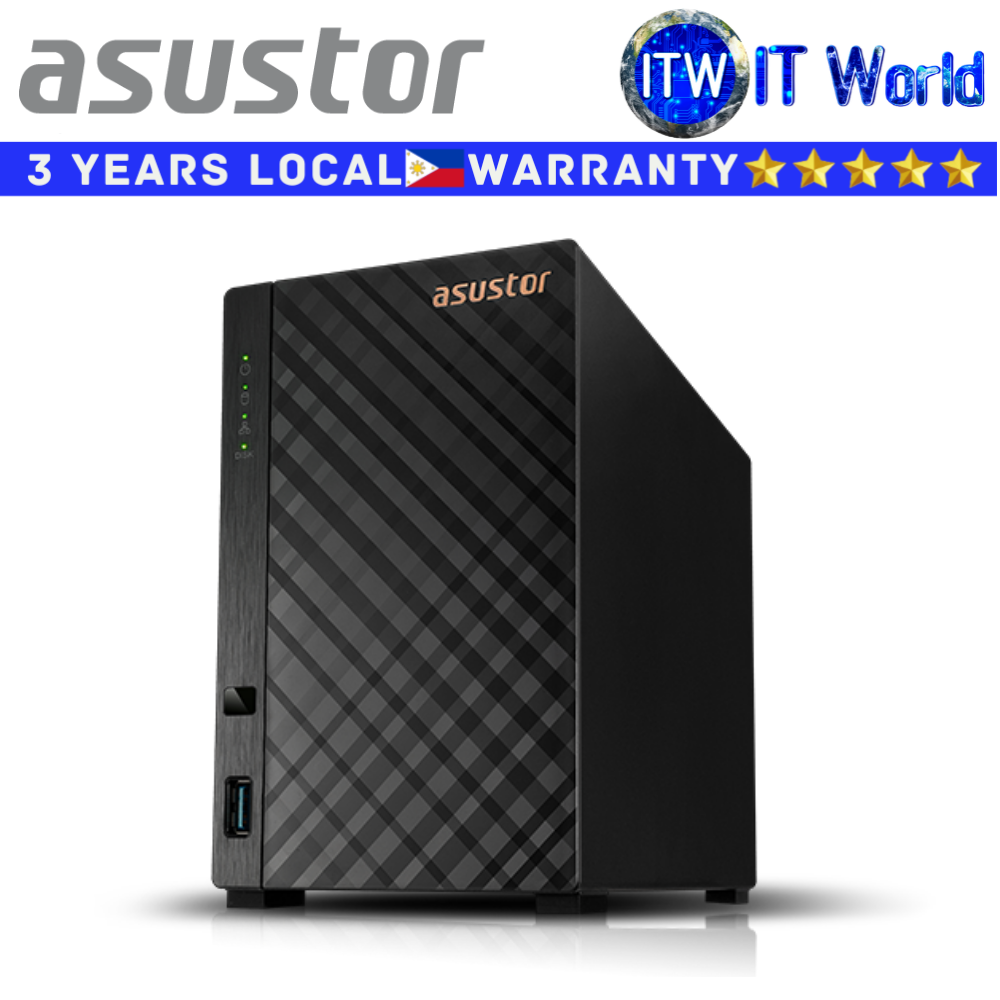

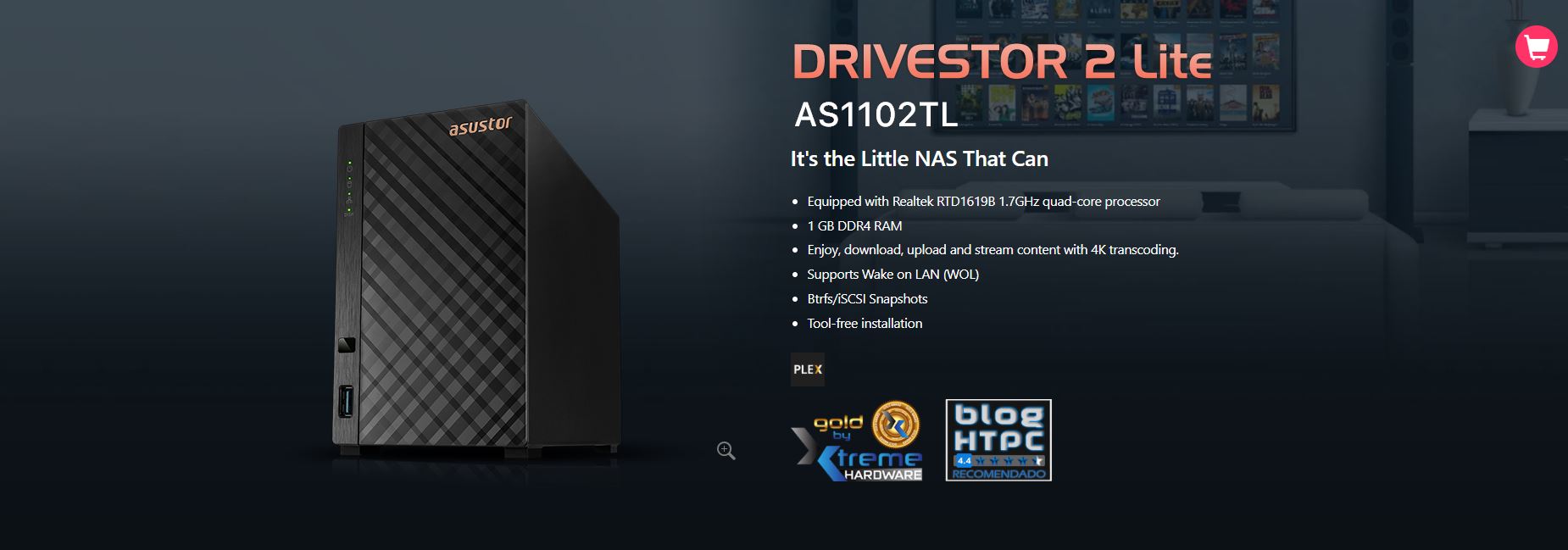

Product Name: Itw | Asustor NAS Storage Drivestor 2 Lite AS1102TL Network Attached Storage
It's the Little NAS That Can
> Equipped with Realtek RTD1619B 1.7GHz quad-core processor
> 1GB DDR4 RAM
> Enjoy, download, upload and stream content with 4K transcoding.
> Supports Wake on LAN (WOL)
> Btrfs/iSCSI Snapshots

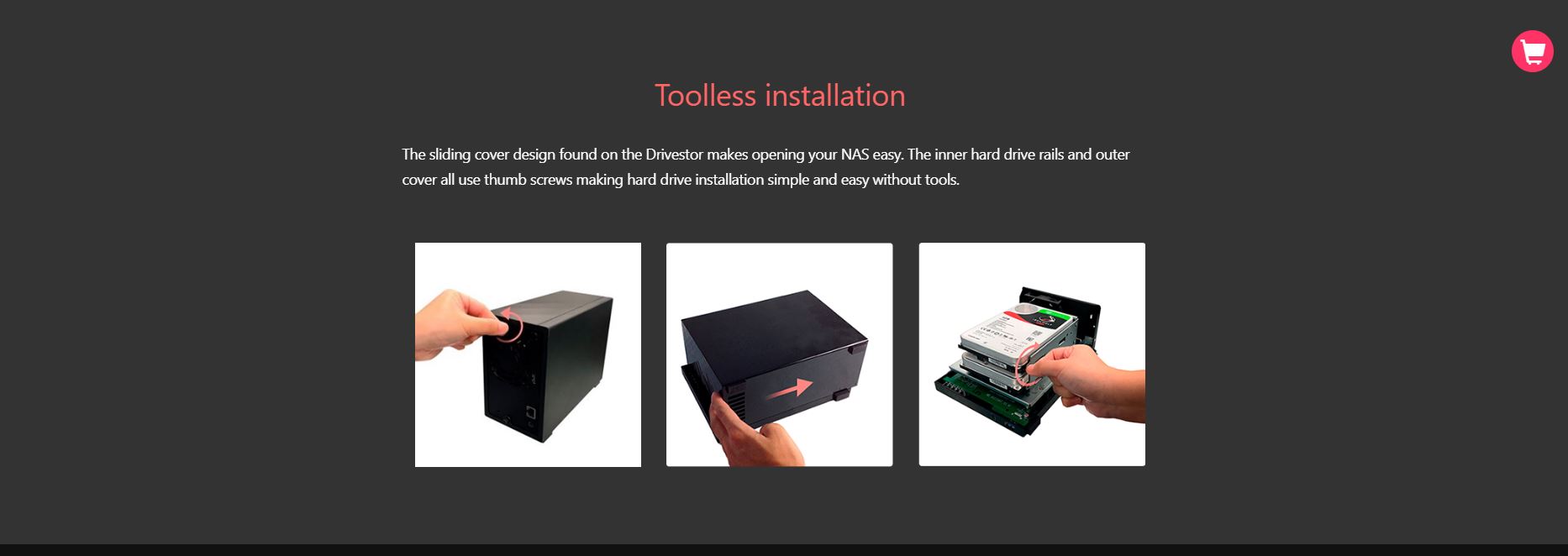

> Tool-free installation
Specification
Hardware Specs
* CPU
> CPU Model: Realtek RTD1619B
> CPU Architecture: ARM64 64-bit
> CPU Frequency: Quad-Core 1.7GHz
* Memory
> Memory: 1GB DDR4
> Memory Expandable: up to not expandable
> Flash Memory: 8GB eMMC
* Storage
> Drive Bays: 2
> Compatible Drive Type: 3.5" SATA HDD
> Maximum Drive Bays with Expansion Unit: 6
* External Ports
> Expansion
- 1x USB 3.2 Gen 1
- 1 x USB 2.0
> Network: 1x Gigabit Ethernet (1G/100M)
> Multimedia Output: N/A
* Others
> System Fan: 1x 70mm
> Power Supply Unit / Adapter: 65W x1
> Input Power Voltage: 100V to 240V AC
> Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
* Operation
> Power Consumption 11.7W (Operation) 3.1W (Disk Hibernation);
> Noise Level: 18.6dB (HDD idle)
* Operation
> Temperature: 0°C~40°C (32°F~104°F)
> Storage Temperature: -20°C~70°C (-4°F~158°F)
> Humidity: 5% to 95% RH
* Size and Weight
> Size: 165(H) x 102(W) x 218(D) mm
> Weight: 1.14 kg / 2.5 lbs
Software & Features
General Specifications
* Supported OS
> Windows 10, 11, Server 2016, Server 2019, Server 2022
> macOS
> UNIX, Linux, and BSD
* Supported Browsers
> Firefox
> Chrome
> Safari
> Microsoft Edge
Network
* Network Protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
* File Management & Sharing
> File System
- Internal Disk: EXT4, Btrfs
- External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
> File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
> Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
~ File size
~ File extension
- Deletion Settings
~ File size
~ File date
* Storage management
> Supported RAID levels
- Single
- JBOD
- RAID 0
- RAID 1
> Supported RAID migration methods: Single to RAID 1
* Volume
> RAID levels supporting storage expansion by complete drive replacement
RAID 1
> RAID levels supporting storage expansion by drive addition -
> RAID spare drive support -
> iSCSI/IP-SAN
- Maximum Targets: 256
- Maximum LUNs: 265
- Maximum Snapshot Versions of a Single LUN: 256
- Target Masking
- LUN Mapping
- ISO File Mounting
- Supports MPIO
- Persistent (SCSI-3) Reservations
> Disk Management
- Scheduled Bad Block Scans
- Scheduled S.M.A.R.T Scans
* Access & Security
> Access Control
- Maximum Number of Users: 4096
- Maximum Number of Groups: 512
- Maximum Number of Shared Folders: 512
- Maximum Number of Concurrent Connections: 512
- Supports Windows Active Directory
- Supports Windows Active Directory / LDAP
> ACL
- Provides both Windows ACL and Linux ACL permission configuration methods
- Can enable Windows ACL for specific shared folders
- Comprehensive support for Windows’ 13 types of advanced permission settings
- Can view Windows ACL permission settings from within ADM
- Supports local users and groups
- Exclusive permission reset function allows users to quickly restore default permissions
> System Administration
- Log Type: System Log, Connection Log, File Access Log
- Real-time Online User Monitor
- Real-time System Monitor
- User Quota
- Virtual Drive (ISO Mounting, Maximum 16)
- UPS Support
> Security
- AES 256-Bit Encryption
- Firewall: Prevent Unauthorized Access
- Alert Notifications: E-mail, SMS
- Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
- Built-in Hardware Encryption Engine
> Network Defender
- Auto black list
- Trusted list
- Black/White list
~ Supports IP/IP range/geolocation
* Backup
> Backup Solutions
- Rsync (Remote Sync) Backup
- Cloud Backup
- FTP Backup
- External Backup
- EZ Sync
- SMB Backup
> Snapshots
- Btrfs Snapshots
- 256 Snapshots
- iSCSI LUNs
