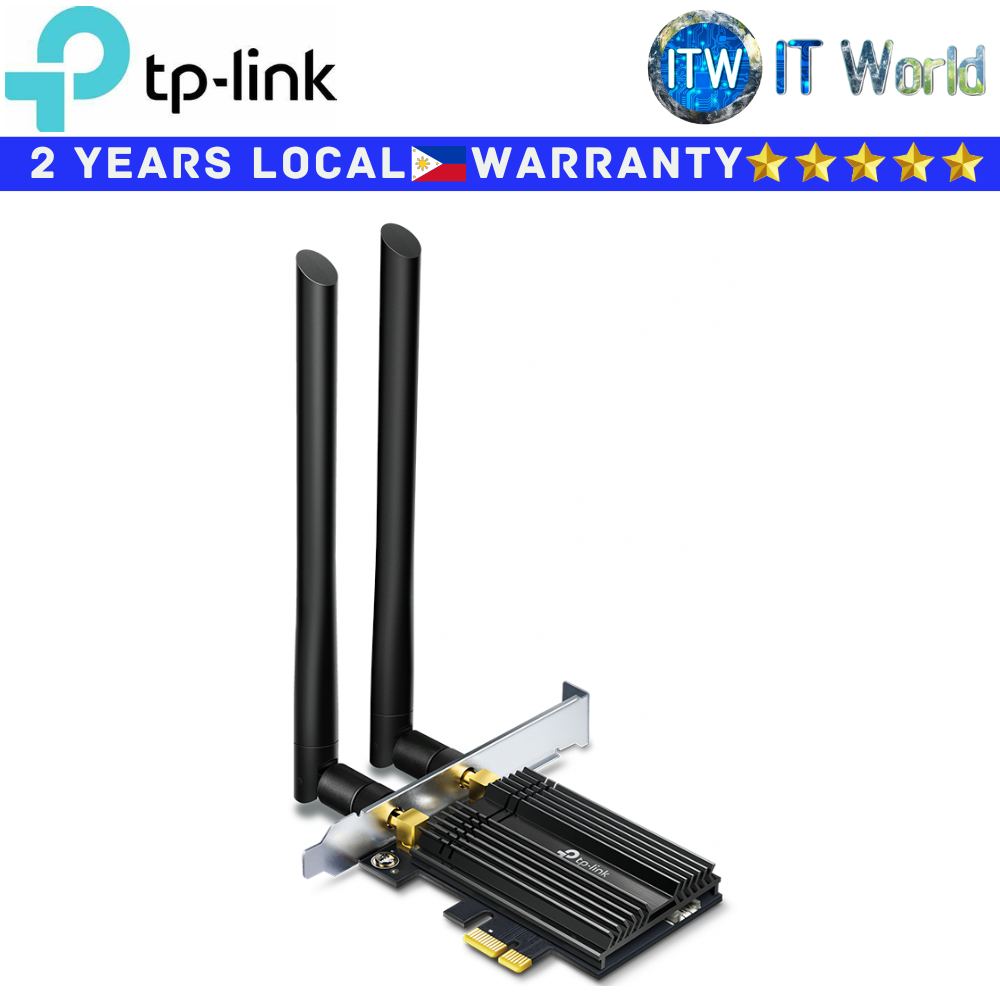

Product Name: Itw | TP-Link Wifi Adapter Archer TX50E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

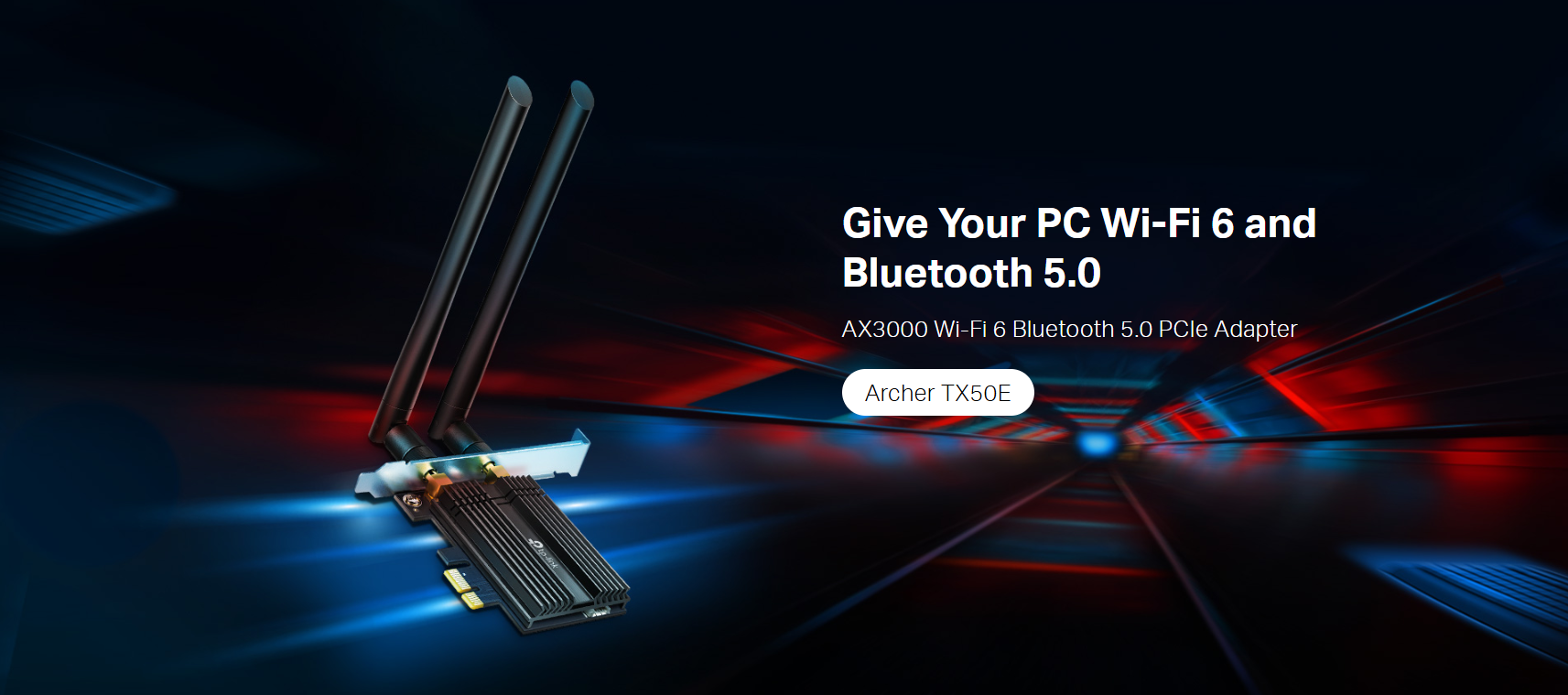

AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

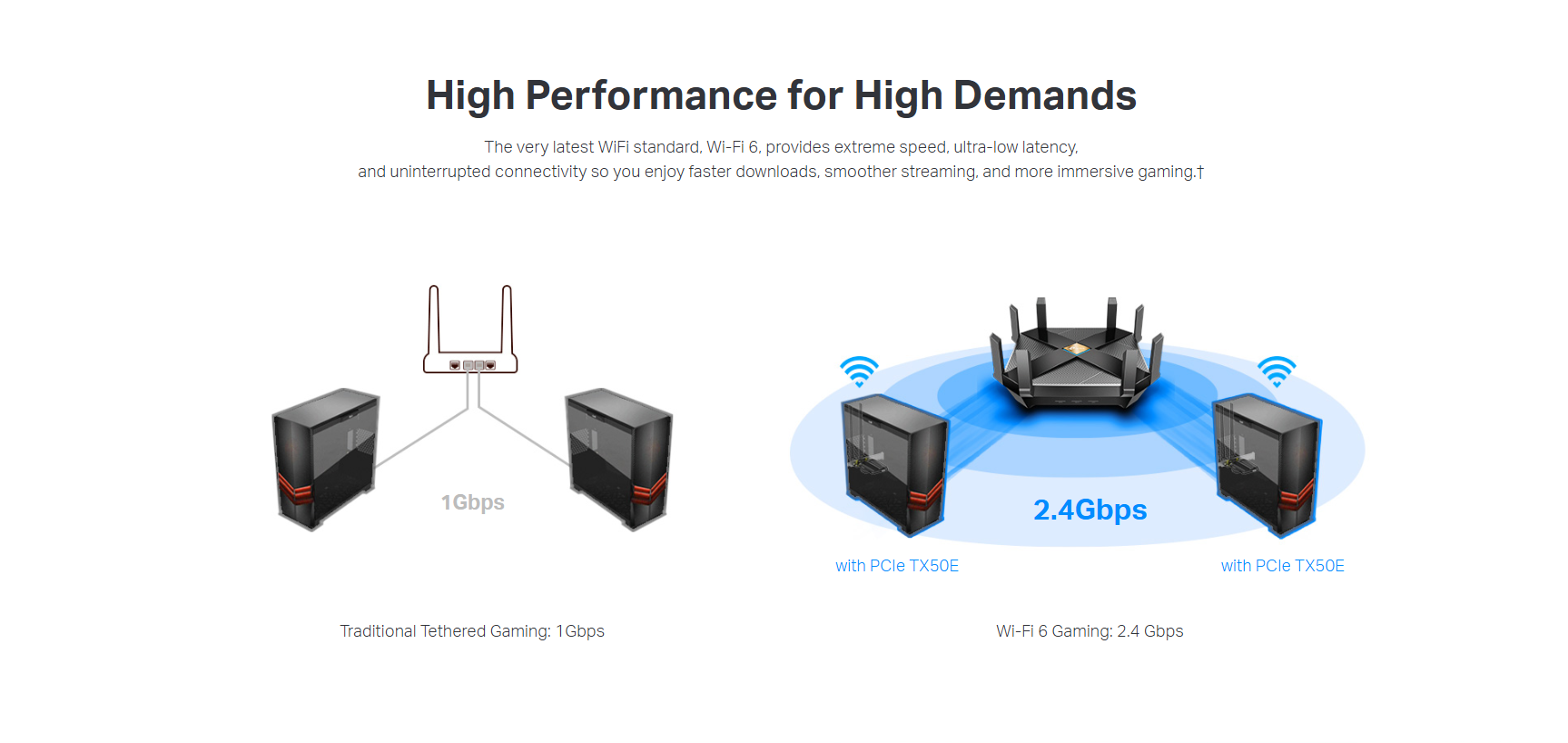

> AX3000 Wi-Fi 6 Speeds: Reach incredible speeds up to 2.4 Gbps (2402 Mbps on 5 GHz or 574 Mbps on 2 4 GHz), ultra-low latency and uninterrupted connectivity using Wi-Fi 6 technology such as 1024-QAM and 160 MHz bandwidth.†‡

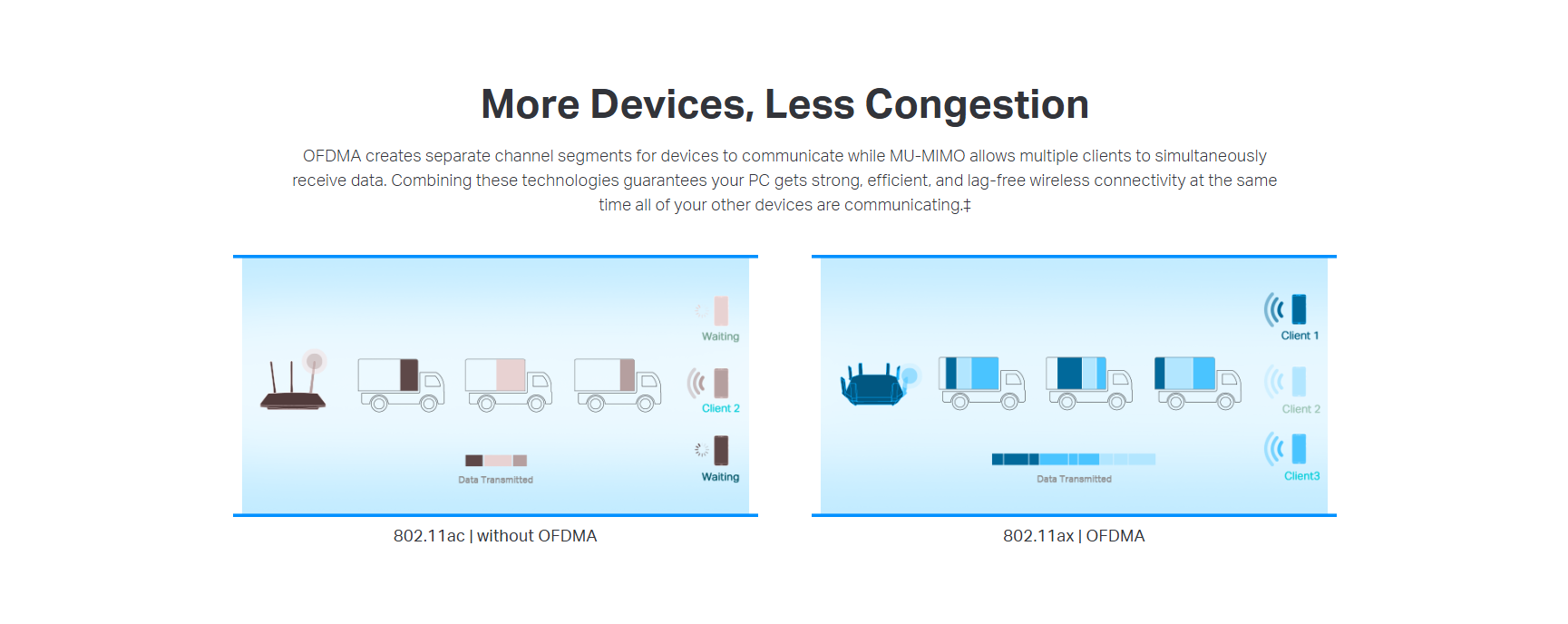

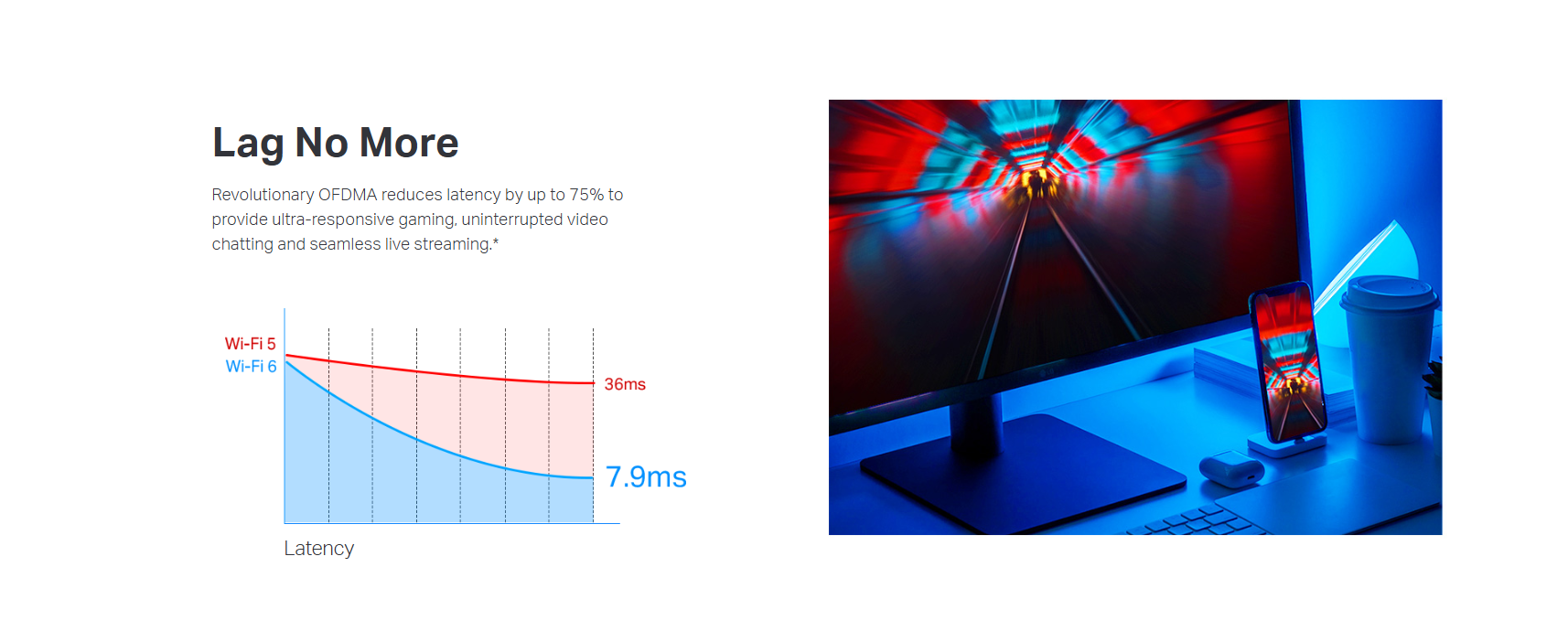

> Minimized Lag for Your PC: Revolutionary OFDMA and MU-MIMO technology reduces lag so you can enjoy ultra-responsive real-time gaming or an immersive VR experience on even the busiest of networks. ‡

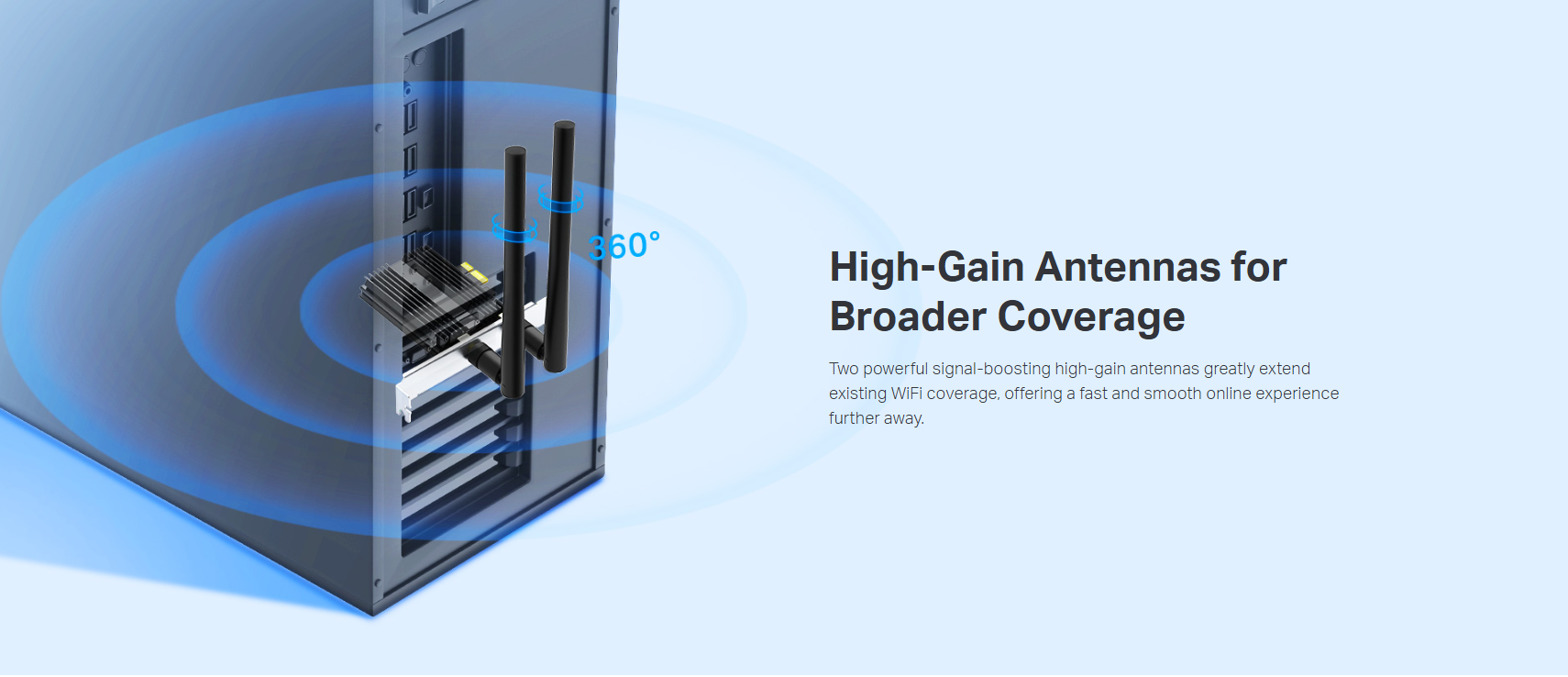

> Broader Range: Two powerful signal-boost high-gain antennas greatly increase range for a smoother online experience further away.
> Bluetooth 5.0 for Greater Speeds and Range: Archer TX50E achieves 2x faster speeds and 4x broader range so you can connect your favorite devices such as game controllers, headphones, and keyboards for the ultimate setup.***
> Cutting-Edge WPA3: Protect your network with the latest WPA3 security protocol so your information is secure from hackers.**

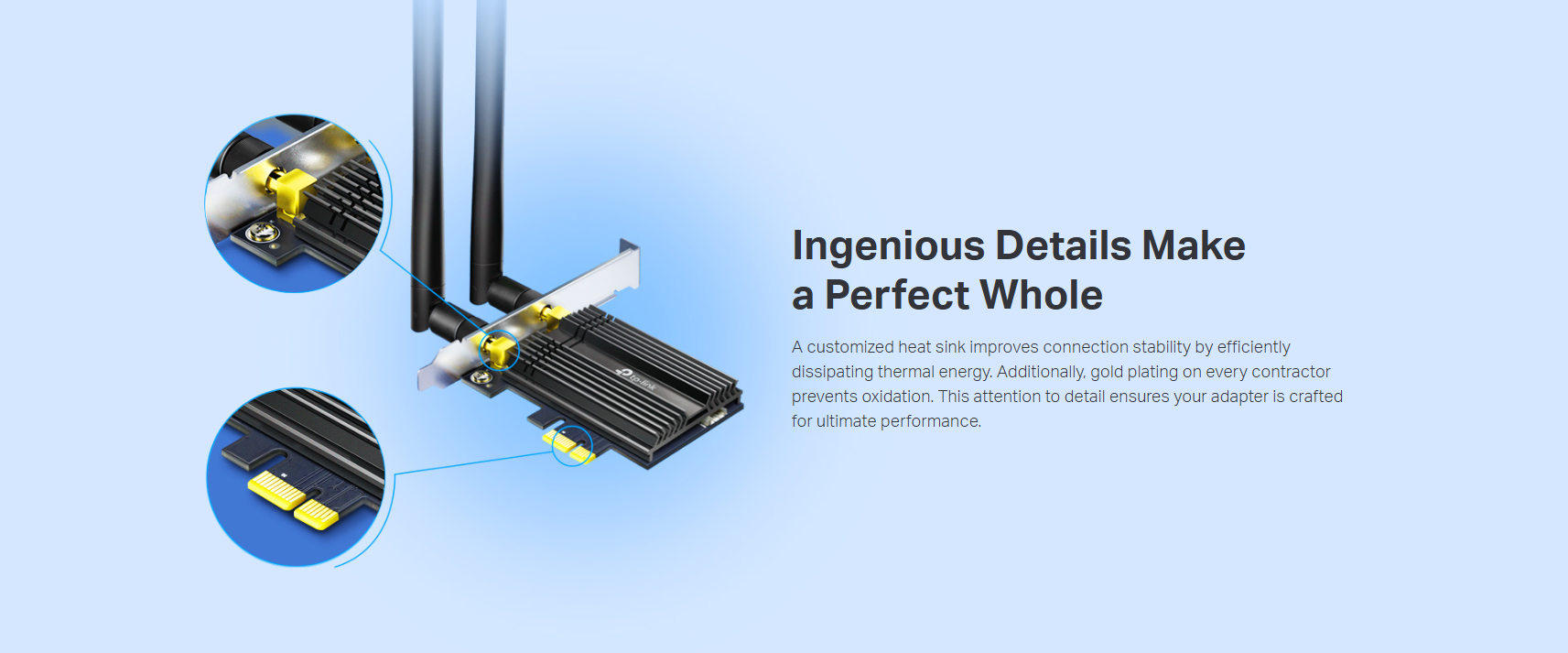

> Premium quality & Performance: Gold plating and a customized heat sink improve connection stability and efficiency ensuring ultimate performance.
> Support Compatibility: Supports Windows 11/10 (64bit) only - Driver installation required via Website or included CD.****
Specification
HARDWARE FEATURES
* Dimensions: 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm)
* Antenna Type: Two High-Gain Dual Band Antennas
* Chipset: Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
* Wireless Standards
> IEEE 802.11ax/ac/n/a 5 GHz
> IEEE 802.11ax/n/g/b 2.4 GHz
> Bluetooth 5.0/4.2/4.0
* WLAN Signal Rate
> 5 GHz
- 11ax: Up to 2402 Mbps(dynamic)
- 11ac: Up to 1733 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
> 2.4 GHz
- 11ax: Up to 574 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
* WLAN Reception Sensitivity
> 5 GHz
- 11ax HT160: -56.25dBm
- 11ax HT80: -59dBm
- 11ax HT40: -62.25dBm
- 11ax HT20: -65dBm
- 11ac HT160: -62dBm
- 11ac HT80: -65.5dBm
- 11ac HT40: -69.75dBm
- 11ac HT20: -73.75dBm
- 11n HT40: -74.5dBm
- 11n HT20: -77.5dBm
- 11a 54Mbps: -77.75dBm
- 11a 6Mbps: -94.5dBm
> 2.4GHz
- 11ax HT40: -60.75dBm
- 11ax HT20: -63.75dBm
- 11n HT40: -73dBm
- 11n HT20: -76.25dBm
- 11g 54Mbps: -76.5dBm
- 11b 11Mbps: -89dBm
* WLAN Transmit Power
> 5 GHz: 27dBm(FCC)
> 2.4 GHz: 26dBm(FCC)
* WLAN Modes: Infrastructure mode
* Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
* Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
* Bluetooth Profiles: Archer TX50E support the native BT profiles implemented in Windows 10.
OTHERS
* Certification: FCC, RoHS
* Package Contents
> Archer TX50E
> Two 5 dBi High-Gain Antennas
> Low-Profile Bracket
> Bluetooth Header Cable
> Quick Installation Guide
> Resource CD
* System Requirements: Windows 11/10(64-bit) only
* Environment
> Operating Temperature: 0℃~40℃ (32℉~104℉)
> Storage Temperature: -40℃~70℃ (-40℉~158℉)
> Operating Humidity: 10%~90% non-condensing
> Storage Humidity: 5%~90% non-condensing
