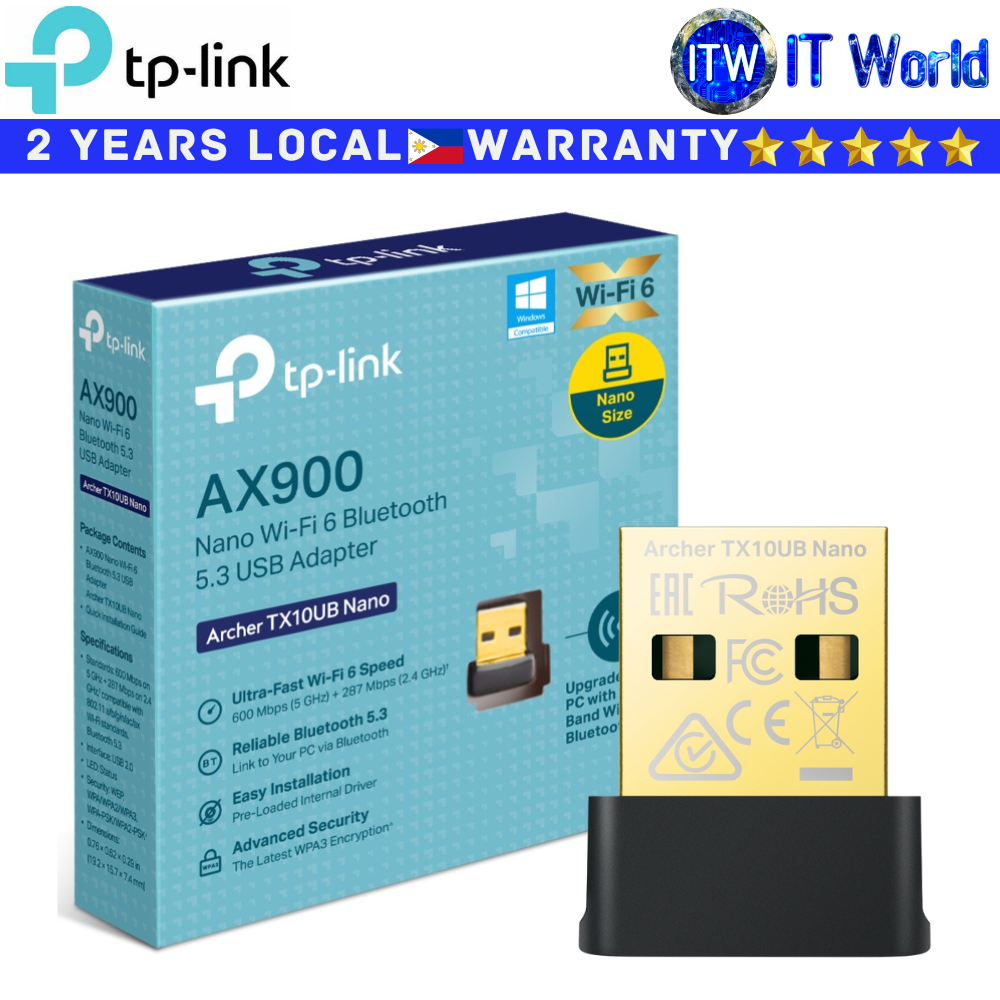

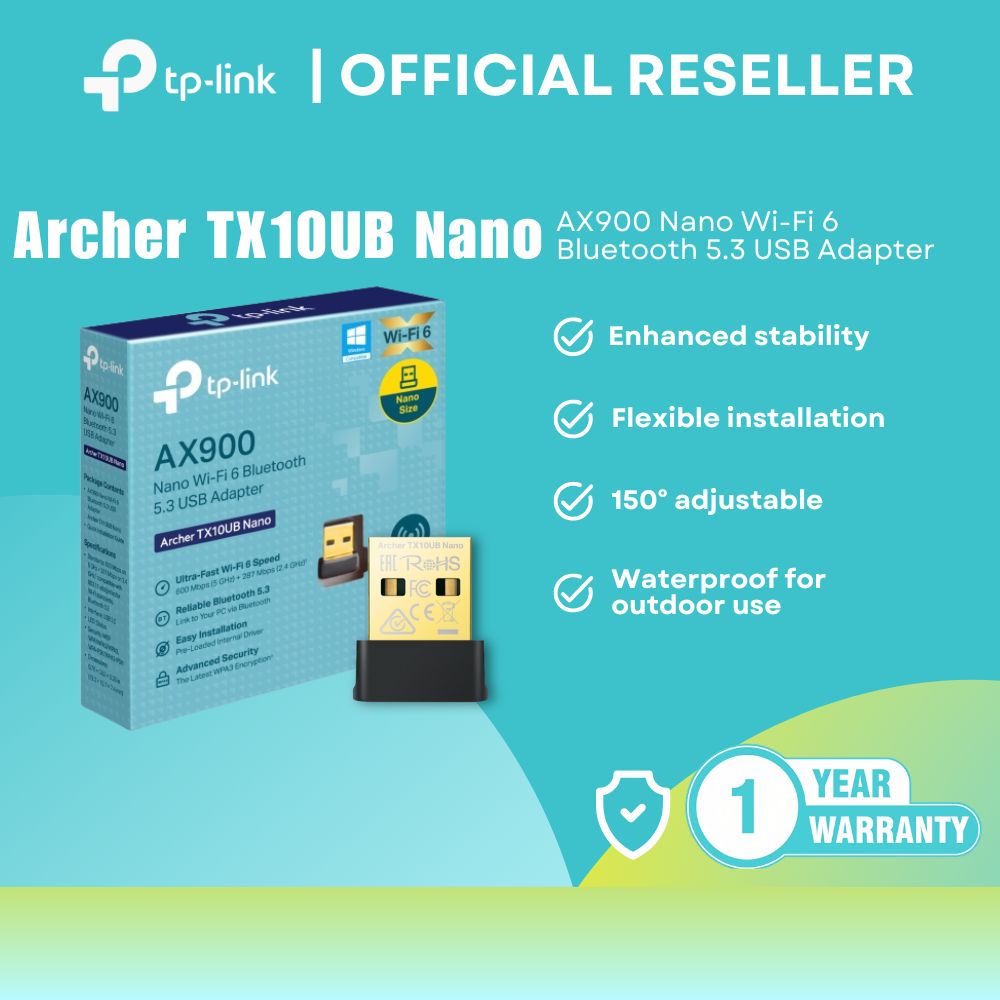

Product Name: Itw | TP-Link Wireless USB Adapter Archer TX10UB AX900 Nano Wi-Fi 6 Dual-Band Bluetooth 5.3
Archer TX10UB Nano | AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter
> High Speed WiFi – Up to 900 Mbps speeds with 287 Mbps on 2.4 GHz and 600 Mbps on 5 GHz, upgrades your devices to higher AX WiFi speeds.
> Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.
> Reliable Bluetooth 5.3 – Bluetooth 5.3 has been enhanced in terms of reliability and security, which ensures a more robust coordination with your game controllers, headphones, keyboards an etc.
> Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
> Operating System – Supports Windows 11/10
> Advanced Security – Supports WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption standards
Specification
HARDWARE FEATURES
* Interface: USB 2.0
* Dimensions (W x D x H): 19.2*15.7*7.4mm
* Antenna Type: Omni Directional
WIRELESS FEATURES
* Wireless Standards: IEEE 802.11b/g/n/ax 2.4GHz, IEEE 802.11a/n/ac/ax 5GHz
* Frequency
> 5GHz
> 2.4GHz
* Signal Rate
> 5GHz
- 11ax: Up to 600Mbps(dynamic)
- 11ac: Up to 433Mbps(dynamic)
- 11n: Up to 150Mbps(dynamic)
- 11a: Up to 54Mbps(dynamic)
> 2.4GHz
- 11ax: Up to 287Mbps(dynamic)
- 11n: Up to 200Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
* Reception Sensitivity
> 5GHZ
- 11a6M: -94dBm
- 11ax HE80 MCS11: -59dBm
- 11ax HE80 MCS0: -87dBm
> 2GHZ
- 11g6M: -95dBm
- 11ax HE40 MCS11: -65dBm
- 11ax HE40 MCS0: -93dBm
* Wireless Modes: Infrastructure Mode
* Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK
* Modulation Technology
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
- 256-QAM, 1024-QAM
OTHERS
* Certification CE, FCC, RoHS
* Package Contents
- AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter Archer TX10UB Nano
- Quick Installation Guide
* System Requirements: Windows 11/10
* Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Operating Humidity: 10%~90% non-condensing
For additional version information, please go to the support page.
