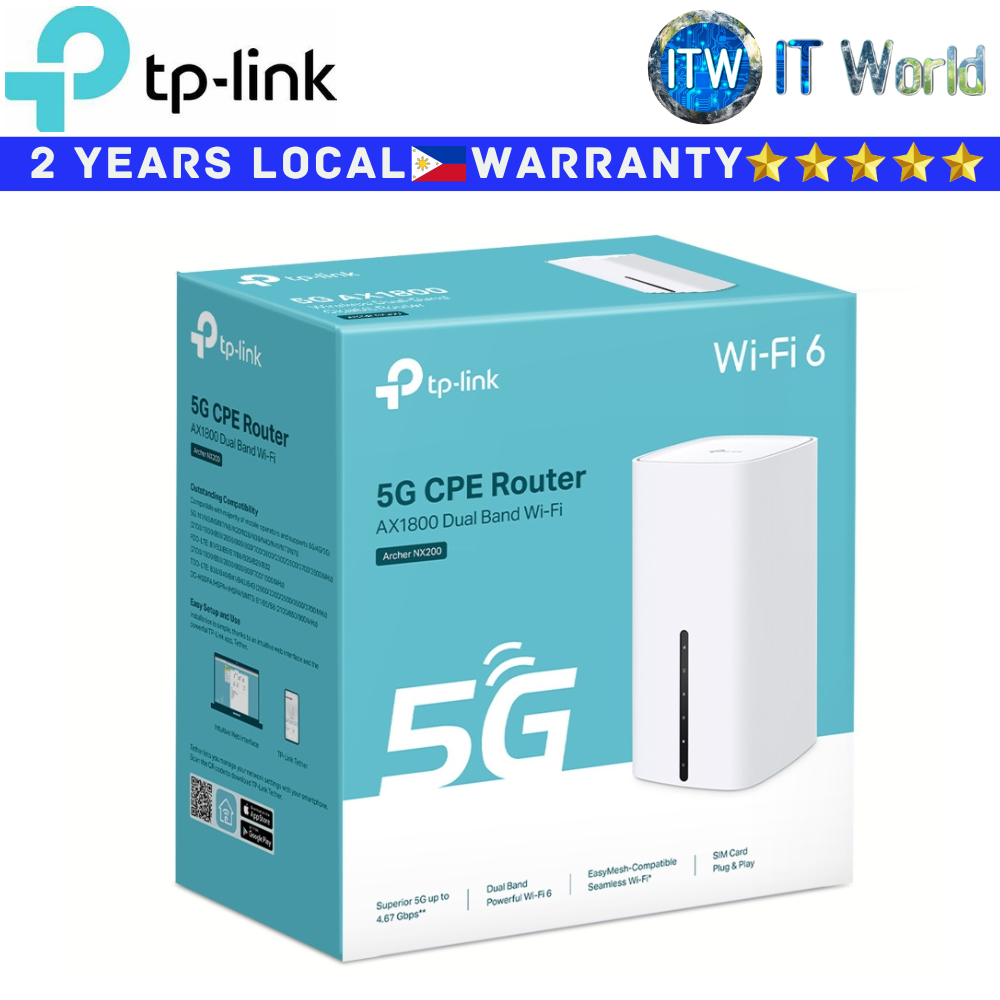

Product Name: Itw | TP-Link Wireless Router Archer NX200 5G AX1800 Dual-Band Gigabit Router
5G AX1800 Wireless Dual-Band Gigabit Router
* Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
* AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
* Plug & Play - Enjoy 5G network right after inserting a SIM card.
* EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
* Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
Specification
HARDWARE FEATURES
* Interface
> 1 × 10/100/1000 Mbps LAN/WAN Port
> 2 × 10/100/1000 Mbps LAN Ports
> 1 × Nano SIM Card Slot
> 2 × 5G/4G External Antenna Ports
* Button: WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
* External Power Supply: Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
* Output parameter: 12VDC 2A
* Dimensions (W x D x H): 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
* Antenna
> 8 × 5G/LTE Internal Antennas
> 2 × Wi-Fi Internal Antennas
WIRELESS FEATURES
* Wireless Standards
> IEEE 802.11ax/ac/n/a 5 GHz
> IEEE 802.11ax/n/b/g 2.4 GHz
* Frequency: 2.4 GHz and 5 GHz
* Signal Rate: 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
* Reception Sensitivity
> 5GHz
- 11a 54M: -80 dBm
- 11ax HE20: -68 dBm
- 11ax HE40: -65 dBm
- 11ax HE80: -62 dBm
- 11ac VHT20: -76 dBm
- 11ac VHT40: -72 dBm
- 11ac VHT80: -68 dBm
- 11n HT20: -79 dBm
- 11n HT40: -75 dBm
> 2.4GHz
- 11g 54M: -78 dBm
- 11ax HE20: -65 dBm
- 11ax HE40: -62 dBm
- 11ac VHT20: -73 dBm
- 11ac VHT40: -68 dBm
- 11n HT20: -75 dBm
- 11n HT40: 72 dBm
* Transmit Power
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
* Wireless Functions
> Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
> Statistics
* WAN Failover: Yes
* Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
* Network Type
> 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
> FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
> TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
> DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
* Quality of Service: Prioritizes network traffic by device or application
* Security: DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
* WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
* Management: TP-Link Cloud, Local Management, Remote Management
* DHCP: Server, DHCP Client List, Address Reservation
* Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
* Dynamic DNS: TP-Link, DynDns, NO-IP
* VPN: PPTP VPN, IPSec VPN , OpenVPN
* Access Control: Parental Control, Local Management Control
* Firewall Security
> DoS, SPI Firewall, IP Address Filter/Domain Filter,
> IP and MAC Address Binding
* Protocols: IPv4, IPv6
* Guest Network
> 2.4 GHz Guest Network x 1
> 5 GHz Guest Network x 1
OTHERS
* Certification: CE, RoHS
* Package Contents
> 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
> 1.5m Power Adapter
> RJ45 Ethernet Cable
> Quick Installation Guide
* System Requirements
> Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
> NetWare, UNIX or Linux
> Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
> Java-enabled browser
> Nano SIM Card
* Environment
> Operating Temperature: 0℃~40℃ (32℉ ~104℉)
> Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
> Operating Humidity: 10%~90% non-condensing
> Storage Humidity: 5%~90% non-condensing
