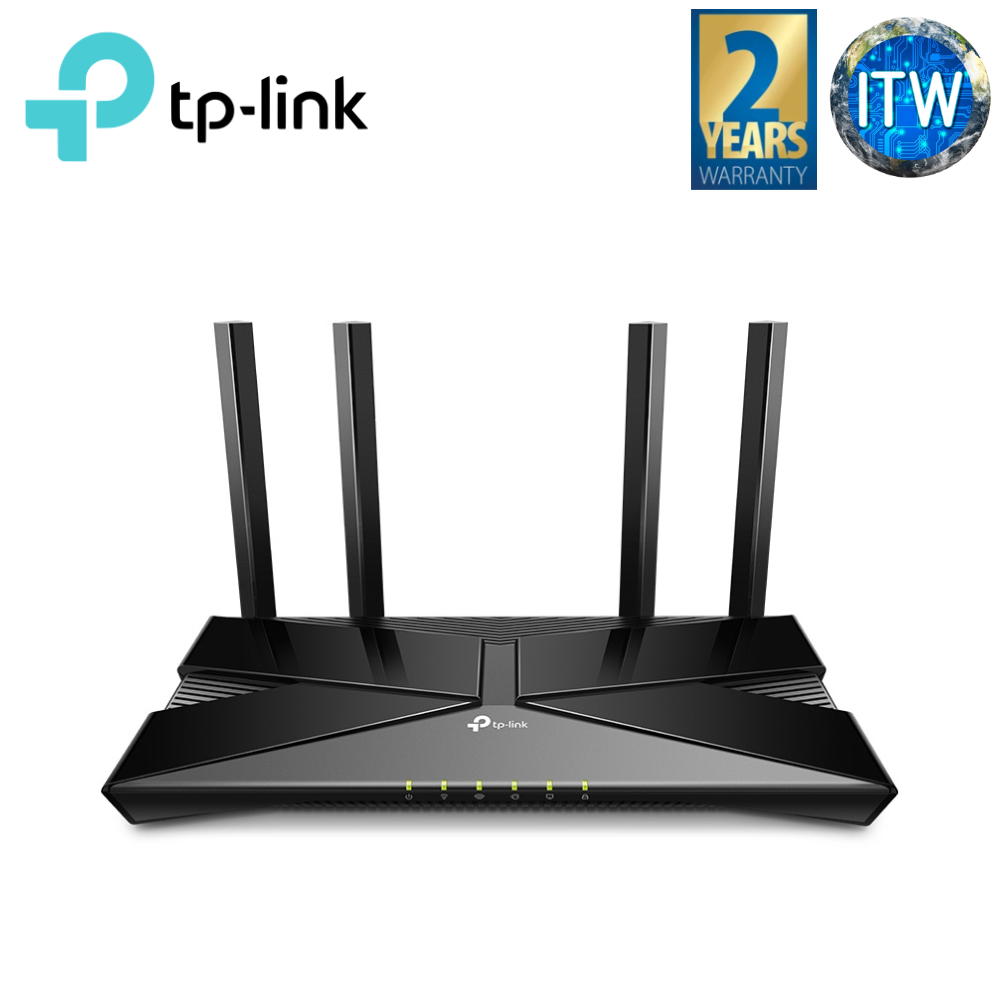

Product Name: ITW | TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Specification
WIRELESS Standards
✎ Wi-Fi 6
■ IEEE 802.11ax/ac/n/a 5 GHz
■ IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
✎ AX1800
■ 5 GHz: 1201 Mbps (802.11ax)
■ 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
✎ 3 Bedroom Houses
■ 4× Fixed High-Performance Antennas
■ Multiple antennas form a signal-boosting array to cover more directions and large areas
✎ Beamforming
■ Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
✎ High
■ Dual-Band
■ Allocate devices to different bands for optimal performance
✎ OFDMA
■ Simultaneously communicates with multiple Wi-Fi 6 clients
✎ Airtime Fairness
■ Improves network efficiency by limiting excessive occupation
✎ 4 Streams
■ Connect your devices to more bandwidth
Working Modes
✎ Router Mode
✎ Access Point Mode
HARDWARE
✎ Processor: Dual-Core CPU
✎ Ethernet Ports
■ 1× Gigabit WAN Port
■ 4× Gigabit LAN Ports
✎ Buttons
■ WPS/Wi-Fi Button
■ Power On/Off Button
■ LED On/Off Button
■ Reset Button
✎ Power: 12 V ⎓ 1 A
SECURITY
✎ WiFi Encryption
■ WPA
■ WPA2
■ WPA3
■ WPA/WPA2-Enterprise (802.1x)
✎ Network Security
■ SPI Firewall
■ Access Control
■ IP & MAC Binding
■ Application Layer Gateway
✎ Guest Network
■ 1× 5 GHz Guest Network
■ 1× 2.4 GHz Guest Network
✎ VPN Server
■ OpenVPN
■ PPTP
SOFTWARE
✎ Protocols
■ IPv4
■ IPv6
✎ OneMesh™
■ OneMesh™ Supported
■ Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
✎ Parental Controls
■ URL Filtering
■ Time Controls
✎ WAN Types
■ Dynamic IP
■ Static IP
■ PPPoE
■ PPTP
■ L2TP
✎ Quality of Service: QoS by Device
✎ Cloud Service
■ Auto Firmware Upgrade
■ OTA Firmware Upgrade
■ TP-Link ID
■ DDNS
✎ NAT Forwarding
■ Port Forwarding
■ Port Triggering
■ DMZ
■ UPnP
✎ IPTV
■ IGMP Proxy
■ IGMP Snooping
■ Bridge
■ Tag VLAN
✎ DHCP
■ Address Reservation
■ DHCP Client List
■ Server
✎ DDNS
■ TP-Link
■ NO-IP
■ DynDNS
✎ Management
■ Tether App
■ Webpage
OTHER
✎ System Requirements
■ Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
■ Cable or DSL Modem (if needed)
■ Subscription with an internet service provider (for internet access)
✎ Certifications: FCC, CE, RoHS
✎ Environment
■ Operating Temperature: 0℃~40℃ (32℉ ~104℉)
■ Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
■ Operating Humidity: 10%~90% non-condensing
■ Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
✎ CE
■ <20dBm(2.4 GHz)
■ <23dBm(5.15 GHz~5.25 GHz)
✎ FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
EU Version
✎ 5G
■ 11a 6Mbps: -96dbm
■ 11a 54Mbps:-75dbm
■ 11ac VHT20_MCS0: -95dbm
■ 11ac VHT20_MCS8: -71dbm
■ 11ac VHT40_MCS0: -92dbm
■ 11ac VHT40_MCS9: -66dbm
■ 11ac VHT80_MCS0: -89dbm
■ 11ac VHT80_MCS9:-62dbm
■ 11ax HE20_MCS0:-95dbm
■ 11ax HE20_MCS11: -64dbm
■ 11ax HE40_MCS0: -92dbm
■ 11ax HE40_MCS11: -60dbm
■ 11ax HE80_MCS0: -89dbm
■ 11ax HE80_MCS11:-59dbm
✎ 2.4G
■ 11g 6Mbps:-96dbm
■ 11g 54Mbps:-75dbm
■ 11n HT20_MCS0:-95dbm
■ 11n HT20_MCS7:-75dbm
■ 11n HT40_MCS0:-92dbm
■ 11n HT40_MCS7: -72dbm
■ 11ac VHT20_MCS0:-95dbm
■ 11ac VHT20_MCS8:-72dbm
■ 11ac VHT40_MCS0:-92dbm
■ 11ac VHT40_MCS9: -67dbm
■ 11ax HE20_MCS0:-95dbm
■ 11ax HE20_MCS11: -65dbm
■ 11ax HE40_MCS0: -92dbm
■ 11ax HE40_MCS11: -62dbm
✎ US Version 5G
■ 11a 6Mbps: -96dbm
■ 11a 54Mbps:-75dbm
■ 11ac VHT20_MCS0: -95dbm
■ 11ac VHT20_MCS8: -71dbm
■ 11ac VHT40_MCS0: -92dbm
■ 11ac VHT40_MCS9: -66dbm
■ 11ac VHT80_MCS0: -89dbm
■ 11ac VHT40_MCS9:-62dbm
■ 11ax HE20_MCS0:-95dbm
■ 11ax HE20_MCS11: -64dbm
■ 11ax HE40_MCS0: -92dbm
■ 11ax HE40_MCS11: -60dbm
■ 11ax HE80_MCS0: -89dbm
■ 11ax HE80_MCS11:-59dbm
✎ 2.4G
■ 11g 6Mbps:-96dbm
■ 11a 54Mbps:-75dbm
■ 11ac VHT20_MCS0:-95dbm
■ 11ac VHT20_MCS8:-72dbm
■ 11ac VHT40_MCS0:-92dbm
■ 11ac VHT40_MCS9: -67dbm
■ 11ax HE20_MCS0:-95dbm
■ 11ax HE20_MCS11: -65dbm
■ 11ax HE40_MCS0: -92dbm
■ 11ax HE40_MCS11: -62dbm
PHYSICAL
✎ Dimensions (W×D×H): 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
✎ Package Contents
■ Wi-Fi Router Archer AX23
■ Power Adapter
■ RJ45 Ethernet Cable
■ Quick Installation Guide
