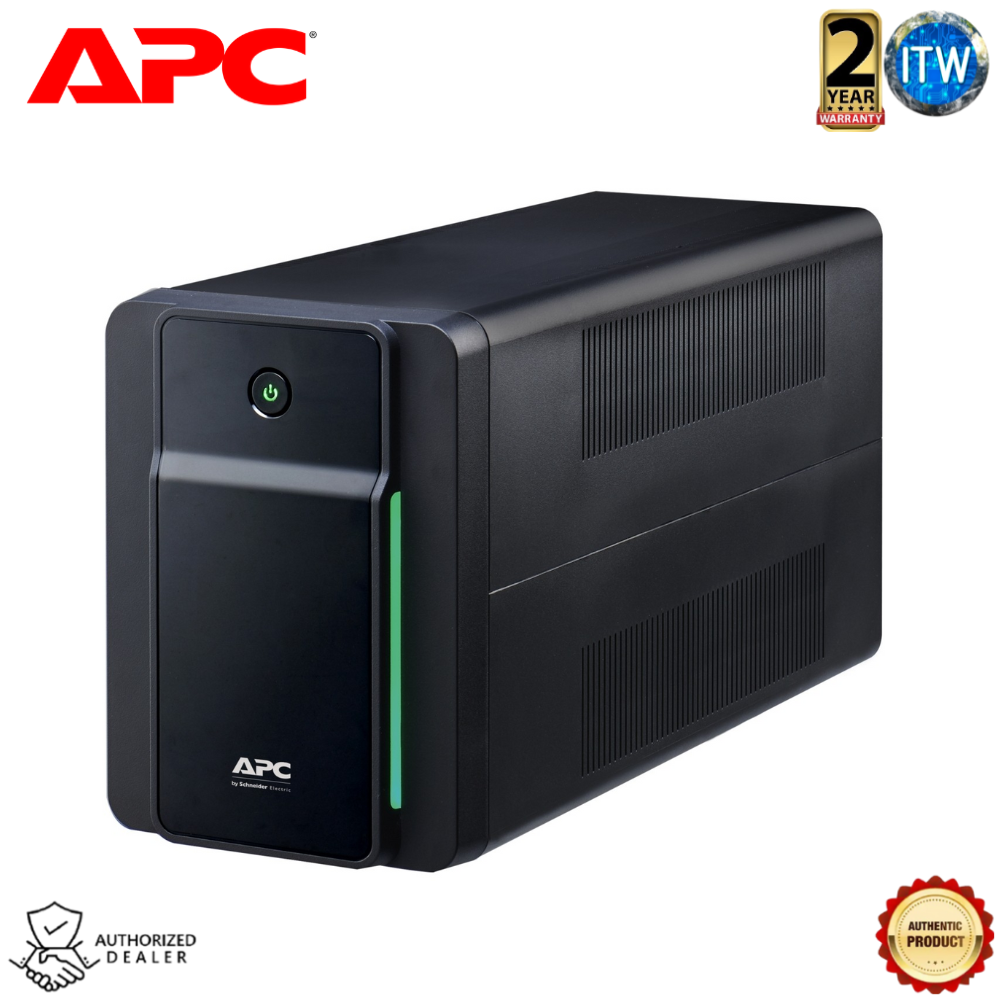

APC Back-UPS BX2200MI 1200W 2200VA 230V AVR 4 universal outlets (BX2200MI-MS)

Product Name: Itw | APC Back-UPS BX2200MI 1200W 2200VA 230V AVR 4 universal outlets (BX2200MI-MS)

Specification

Main

* Main Input Voltage: 230 V

* Rated power in W: 1200 W

* Rated power in VA: 2200 VA

* product or component type: Uninterruptible power supply (UPS)

* output connection type: 4 universal

* Cable length: 1.2 m

* Number of cables: 1

* Battery type: Lead-acid battery

Batteries & Runtime

* Number of battery filled slots: 0

* Number of battery free slots: 0

* Battery recharge time: 8 h

* Battery voltage: 24 V

* Replacement battery: APCRBC177

* Battery graph comments: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

* Extended runtime: 0

General

* Provided equipment: user manual

* Number of power module free slots: 0

* Number of power module filled slots: 0

* Redundant: No

Physical

* Colour: Black

* Height: 19 cm

* Width: 14 cm

* Depth: 39 cm

* Mounting preference: No preference

* mounting mode: Not rack-mountable

* Two post mountable: 0

* USB compatible: No

Input

* Network frequency: 50/60 Hz +/- 5 Hz auto-sensing

* Input voltage limits: 140...300 V

* Input Power Factor at Full Load: 0.54

Output

* Maximum configurable power in W: 1200 W

* Output frequency: 50/60 Hz +/- 1 Hz sync to mains

* UPS type: Line interactive

* Wave type: Stepped approximation to a sinewave

* Full load runtime: 00:01:00 1200 W

* Half load runtime: 00:08:30 600 W

* Maximum configurable power in VA: 2200 VA

* Transfer time: 6 ms typical: 10 ms maximum

Conformance

* Product certifications: CE

* Equipment protection policy: Lifetime: 50000 euros

Environmental

* Ambient air temperature for operation: 0…40 °C

* Relative humidity: 0…95 % non-condensing

* Operating altitude: 0...3000 m

* Ambient air temperature for storage: -15…40 °C

* Storage Relative Humidity: 0…95 % non-condensing

* Storage altitude: 0…3000 m

* Acoustic level: 40 dBA

* IP degree of protection: IP20

Communications & Management

* Control panel: LED Status display with on line: on battery

Surge Protection and Filtering

* Surge energy rate: 273 J

Packing Units

* Unit Type of Package 1: PCE

* Number of Units in Package 1: 1

* Package 1 Height: 29.7 cm

* Package 1 Width: 49.5 cm

* Package 1 Length: 23.5 cm
