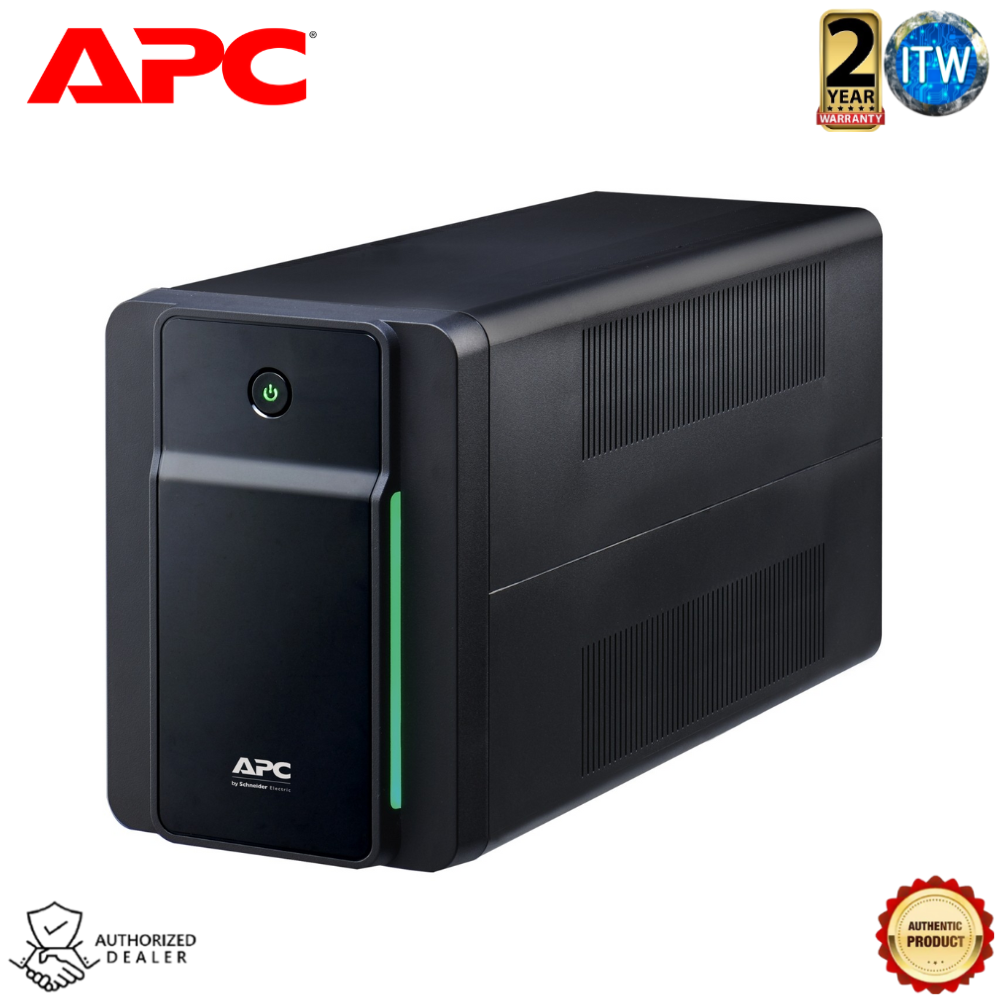

Product Name: Itw | APC Back-UPS BX2200MI 1200W 2200VA 230V AVR 4 universal outlets (BX2200MI-MS)
Specification
Main
* Main Input Voltage: 230 V
* Rated power in W: 1200 W
* Rated power in VA: 2200 VA
* product or component type: Uninterruptible power supply (UPS)
* output connection type: 4 universal
* Cable length: 1.2 m
* Number of cables: 1
* Battery type: Lead-acid battery
Batteries & Runtime
* Number of battery filled slots: 0
* Number of battery free slots: 0
* Battery recharge time: 8 h
* Battery voltage: 24 V
* Replacement battery: APCRBC177
* Battery graph comments: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
* Extended runtime: 0
General
* Provided equipment: user manual
* Number of power module free slots: 0
* Number of power module filled slots: 0
* Redundant: No
Physical
* Colour: Black
* Height: 19 cm
* Width: 14 cm
* Depth: 39 cm
* Mounting preference: No preference
* mounting mode: Not rack-mountable
* Two post mountable: 0
* USB compatible: No
Input
* Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
* Input voltage limits: 140...300 V
* Input Power Factor at Full Load: 0.54
Output
* Maximum configurable power in W: 1200 W
* Output frequency: 50/60 Hz +/- 1 Hz sync to mains
* UPS type: Line interactive
* Wave type: Stepped approximation to a sinewave
* Full load runtime: 00:01:00 1200 W
* Half load runtime: 00:08:30 600 W
* Maximum configurable power in VA: 2200 VA
* Transfer time: 6 ms typical: 10 ms maximum
Conformance
* Product certifications: CE
* Equipment protection policy: Lifetime: 50000 euros
Environmental
* Ambient air temperature for operation: 0…40 °C
* Relative humidity: 0…95 % non-condensing
* Operating altitude: 0...3000 m
* Ambient air temperature for storage: -15…40 °C
* Storage Relative Humidity: 0…95 % non-condensing
* Storage altitude: 0…3000 m
* Acoustic level: 40 dBA
* IP degree of protection: IP20
Communications & Management
* Control panel: LED Status display with on line: on battery
Surge Protection and Filtering
* Surge energy rate: 273 J
Packing Units
* Unit Type of Package 1: PCE
* Number of Units in Package 1: 1
* Package 1 Height: 29.7 cm
* Package 1 Width: 49.5 cm
* Package 1 Length: 23.5 cm
