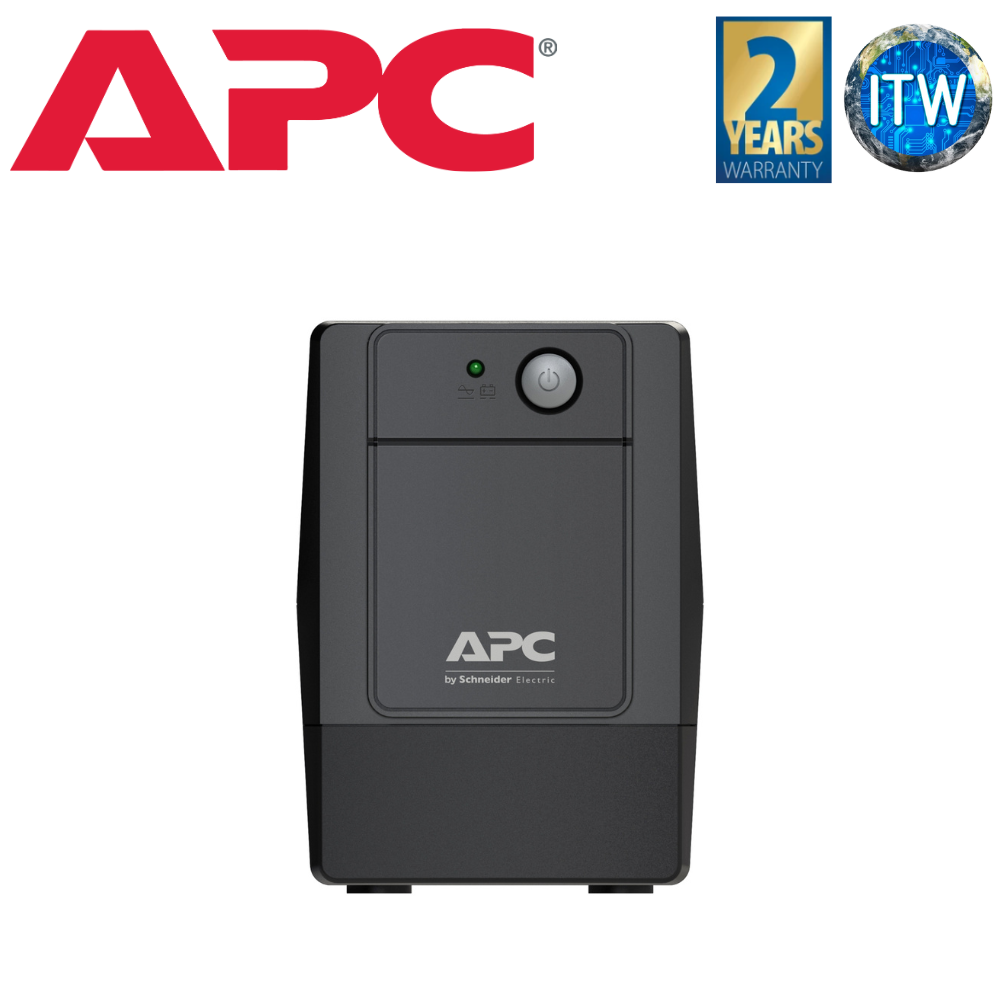

APC Easy UPC Power Supply BVX650I Black 650VA, AVR, 230V Line Interactive (BVX650I-PH)

Product Name: ITW | APC Easy UPS BVX 650VA, AVR, 230V Power Supply (BVX650I-PH)

Features

■ Power capacity: 360 W / 650 VA

■ Battery Backup: 4 battery backup with surge protection outlets for multi-device power protection

Automatic Voltage Regulation (AVR)

■ Boost and Trim” AVR instantly corrects voltage fluctuations without using the battery, saving battery life for power outages

Circuit Breaker Reset

■ Push the circuit breaker button to reset for easy recovery from circuit overloads, protecting the UPS and connected electronics from electrical damage

Automatic Diagnostic Testing

■ Periodic battery self-test ensures early detection of a battery that needs to be replaced, ensuring your unit is ready when you need it

Generator Compatible

■ Provides clean instant battery power to prevent frequency variations from affecting the connected load

Specification

Main

✎ Main Input Voltage: 230 V

✎ Main Output Voltage: 230 V

✎ Rated power in W: 360 W

✎ Rated power in VA: 650 VA

✎ Input Connection Type: NEMA 5-15P

✎ output connection type: 4 NEMA 5-15R

✎ Cable length: 1.22 m

✎ Number of cables: 1

✎ Battery type: Lead-acid battery

✎ Provided equipment: User manual

Batteries & Runtime

✎ Number of battery filled slots: 0

✎ Number of battery free slots: 0

✎ Battery recharge time: 8 h

✎ Battery voltage: 12 V

✎ Extended runtime: 0

General

✎ Number of power module free slots: 0

✎ Number of power module filled slots: 0

✎ Redundant: No

✎ UPS size: WS

Physical

✎ Colour: Black

✎ Height: 14.2 cm

✎ Width: 10.1 cm

✎ Depth: 30 cm

✎ Net weight: 4.2 kg

✎ Mounting preference: No preference

✎ Mounting mode: Not rack-mountable

✎ Two post mountable: 0

✎ USB compatible: No

✎ Mounting position: Vertical

Input

✎ Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

✎ Input voltage limits: 140...300 V

✎ Input protection type: Circuit breaker

Output

✎ Maximum configurable power in W: 360 W

✎ Output frequency: 50/60 Hz +/- 1 Hz sync to mains

✎ UPS type: Line interactive

✎ Wave type: Stepped approximation to a sinewave

✎ Graph display: 1

✎ Maximum configurable power in VA: 650 VA

✎ Transfer time: 6 ms typical: 10 ms maximum

Conformance

✎ Standards

■ EN/IEC 62040-1:2019/A11:2021

■ EN/IEC 62040-2:2006/AC:2006

■ EN/IEC 62040-2:2018

Environmental

✎ Ambient air temperature for operation: 0…40 °C

✎ Relative humidity: 0…95 % non-condensing

✎ Operating altitude: 0...3000 m

✎ Ambient air temperature for storage: -15…40 °C

✎ Storage Relative Humidity: 0…95 % non-condensing

✎ Storage altitude: 0…15000 m

✎ Acoustic level: 40 dBA

✎ IP degree of protection: IP20

Communications & Management

✎ Alarm: Alarm when on battery: distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

✎ Surge energy rate: 156 J

Packing Units

✎ Unit Type of Package 1: PCE

✎ Number of Units in Package 1: 1

✎ Package 1 Height: 23.3 cm

✎ Package 1 Width: 34.7 cm

✎ Package 1 Length: 14.3 cm

✎ Package 1 Weight: 4.42 kg
