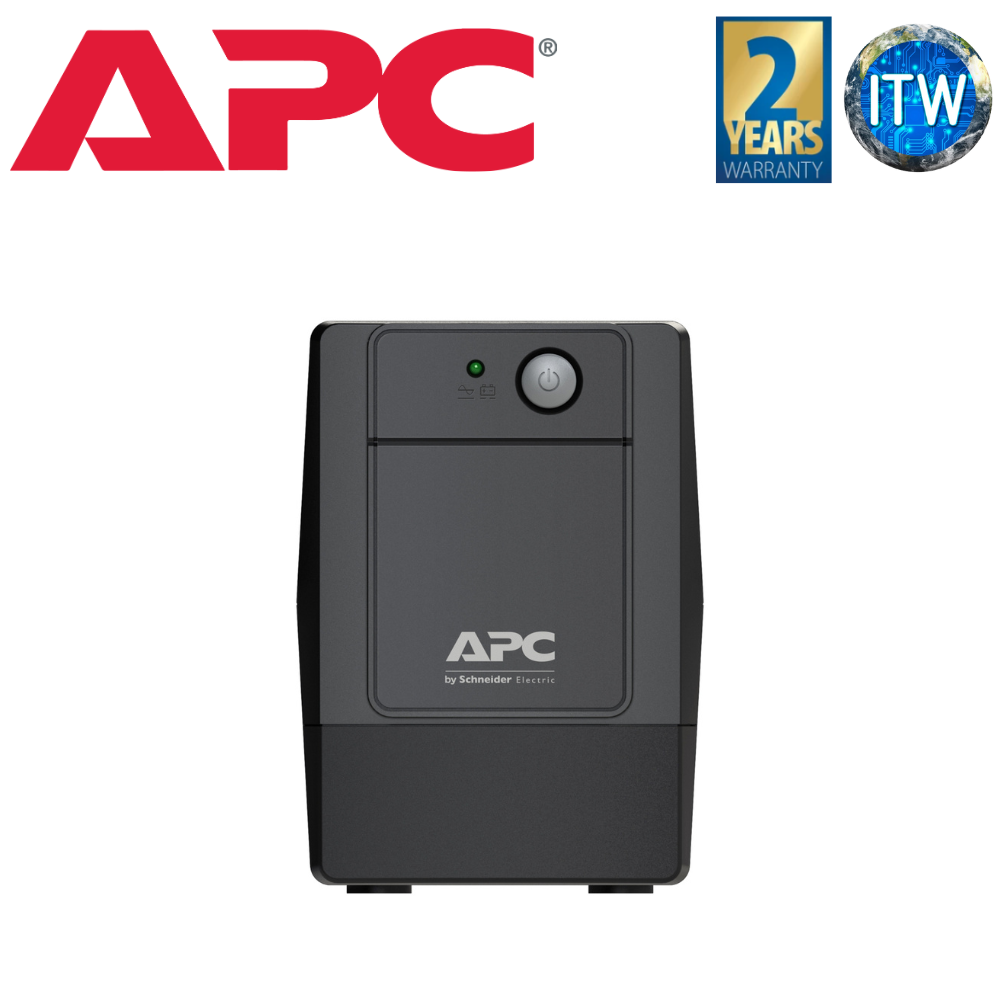

Product Name: ITW | APC Easy UPS BVX 650VA, AVR, 230V Power Supply (BVX650I-PH)
Features
■ Power capacity: 360 W / 650 VA
■ Battery Backup: 4 battery backup with surge protection outlets for multi-device power protection
Automatic Voltage Regulation (AVR)
■ Boost and Trim” AVR instantly corrects voltage fluctuations without using the battery, saving battery life for power outages
Circuit Breaker Reset
■ Push the circuit breaker button to reset for easy recovery from circuit overloads, protecting the UPS and connected electronics from electrical damage
Automatic Diagnostic Testing
■ Periodic battery self-test ensures early detection of a battery that needs to be replaced, ensuring your unit is ready when you need it
Generator Compatible
■ Provides clean instant battery power to prevent frequency variations from affecting the connected load
Specification
Main
✎ Main Input Voltage: 230 V
✎ Main Output Voltage: 230 V
✎ Rated power in W: 360 W
✎ Rated power in VA: 650 VA
✎ Input Connection Type: NEMA 5-15P
✎ output connection type: 4 NEMA 5-15R
✎ Cable length: 1.22 m
✎ Number of cables: 1
✎ Battery type: Lead-acid battery
✎ Provided equipment: User manual
Batteries & Runtime
✎ Number of battery filled slots: 0
✎ Number of battery free slots: 0
✎ Battery recharge time: 8 h
✎ Battery voltage: 12 V
✎ Extended runtime: 0
General
✎ Number of power module free slots: 0
✎ Number of power module filled slots: 0
✎ Redundant: No
✎ UPS size: WS
Physical
✎ Colour: Black
✎ Height: 14.2 cm
✎ Width: 10.1 cm
✎ Depth: 30 cm
✎ Net weight: 4.2 kg
✎ Mounting preference: No preference
✎ Mounting mode: Not rack-mountable
✎ Two post mountable: 0
✎ USB compatible: No
✎ Mounting position: Vertical
Input
✎ Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
✎ Input voltage limits: 140...300 V
✎ Input protection type: Circuit breaker
Output
✎ Maximum configurable power in W: 360 W
✎ Output frequency: 50/60 Hz +/- 1 Hz sync to mains
✎ UPS type: Line interactive
✎ Wave type: Stepped approximation to a sinewave
✎ Graph display: 1
✎ Maximum configurable power in VA: 650 VA
✎ Transfer time: 6 ms typical: 10 ms maximum
Conformance
✎ Standards
■ EN/IEC 62040-1:2019/A11:2021
■ EN/IEC 62040-2:2006/AC:2006
■ EN/IEC 62040-2:2018
Environmental
✎ Ambient air temperature for operation: 0…40 °C
✎ Relative humidity: 0…95 % non-condensing
✎ Operating altitude: 0...3000 m
✎ Ambient air temperature for storage: -15…40 °C
✎ Storage Relative Humidity: 0…95 % non-condensing
✎ Storage altitude: 0…15000 m
✎ Acoustic level: 40 dBA
✎ IP degree of protection: IP20
Communications & Management
✎ Alarm: Alarm when on battery: distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
✎ Surge energy rate: 156 J
Packing Units
✎ Unit Type of Package 1: PCE
✎ Number of Units in Package 1: 1
✎ Package 1 Height: 23.3 cm
✎ Package 1 Width: 34.7 cm
✎ Package 1 Length: 14.3 cm
✎ Package 1 Weight: 4.42 kg
