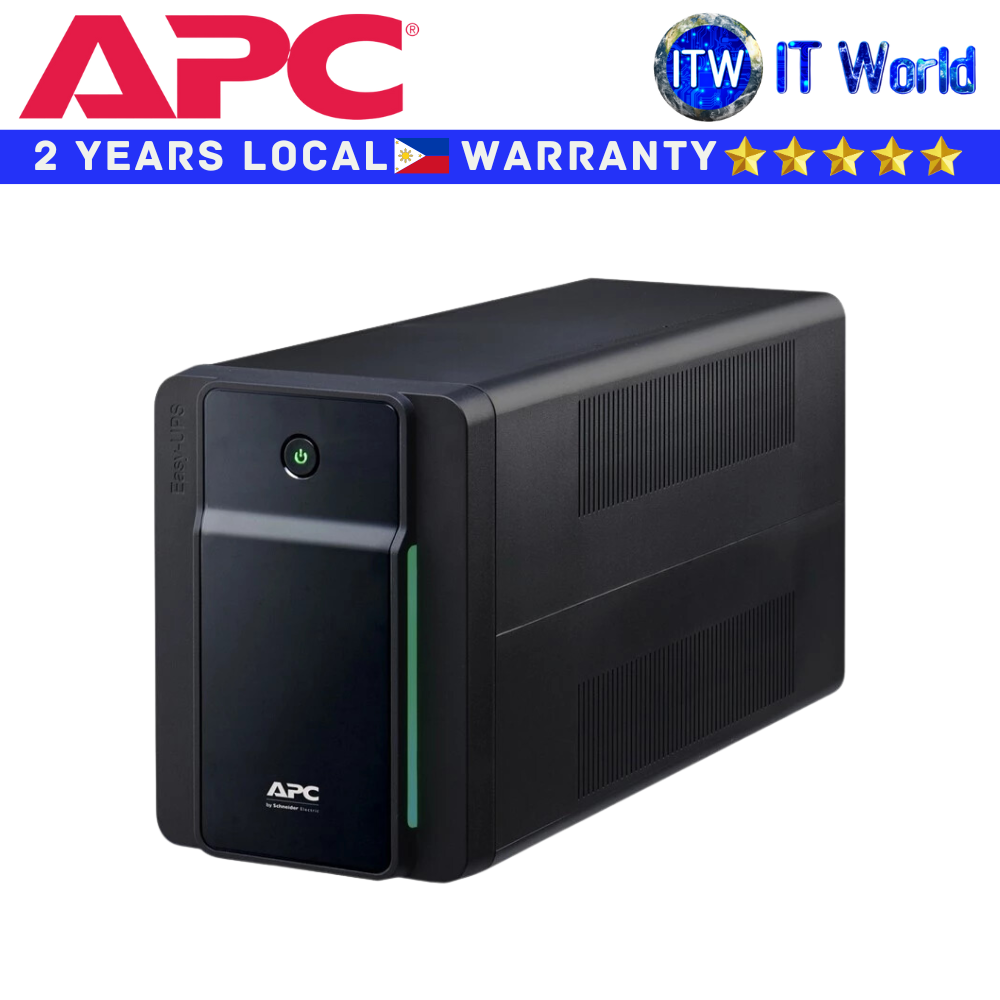

APC Back-UPS Power Supply UPS Easy UPS BVX 1200VA 230V AVR Universal Sockets (BVX1200LI-MS)

Product Name: Itw | APC Back-UPS Power Supply UPS Easy UPS BVX 1200VA 230V AVR Universal Sockets (BVX1200LI-MS)

Key Feature

• Output power capacity : 650 Watts / 1.2kVA

• Output Connections: (1) IEC 60320 C13 (Battery Backup)

• Nominal Input/ Output Voltage : 230V

• Input Connections: IEC 60320 C14

• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains

• Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

• Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Specification

Easy UPSFeatures & Benefits

• Availability: Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

• Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Safety

• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Protection

• Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

• Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes.

Manageability

• LED Indicators: Provide easy-to-read status of the unit and utility power conditions.

• Audible alarms: Provides notification of changing utility power and UPS power conditions

Features

• Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

• Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

• Cold-start capable: Provides temporary battery power when the utility power is out.

• Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

Product Distribution

• Australia, Hong Kong, Indonesia, India, Cambodia, South Korea, Myanmar, Malaysia, New Zealand, Philippines, Singapore, Thailand, Taiwan, Vietnam

Technical Specifications

Output

• Max Configurable Power (Watts): 650Watts /1.2kVA

• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains

• Topology: Line interactive

• Waveform type: Stepped approximation to a sinewave

• Transfer Time: 6 ms typical : 10 ms maximum

Input

• Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing

• Input voltage range for main operations: 140 - 300 (230 V) ACV

• Number of Power Cords: 1

• Input Power Factor at Full Load: 0.51

Batteries & Runtime

• Battery type: Lead-acid battery

• Typical recharge time: 8hour(s)

• Nominal Battery Voltage: 12 V

• Expected Battery Life (years): 1 - 2

• Battery Volt-Amp-Hour Capacity: 95

Communications & Management

• Control panel: LED Status display with on line : on battery

• Audible Alarm: Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

• Surge energy rating: 273Joules
