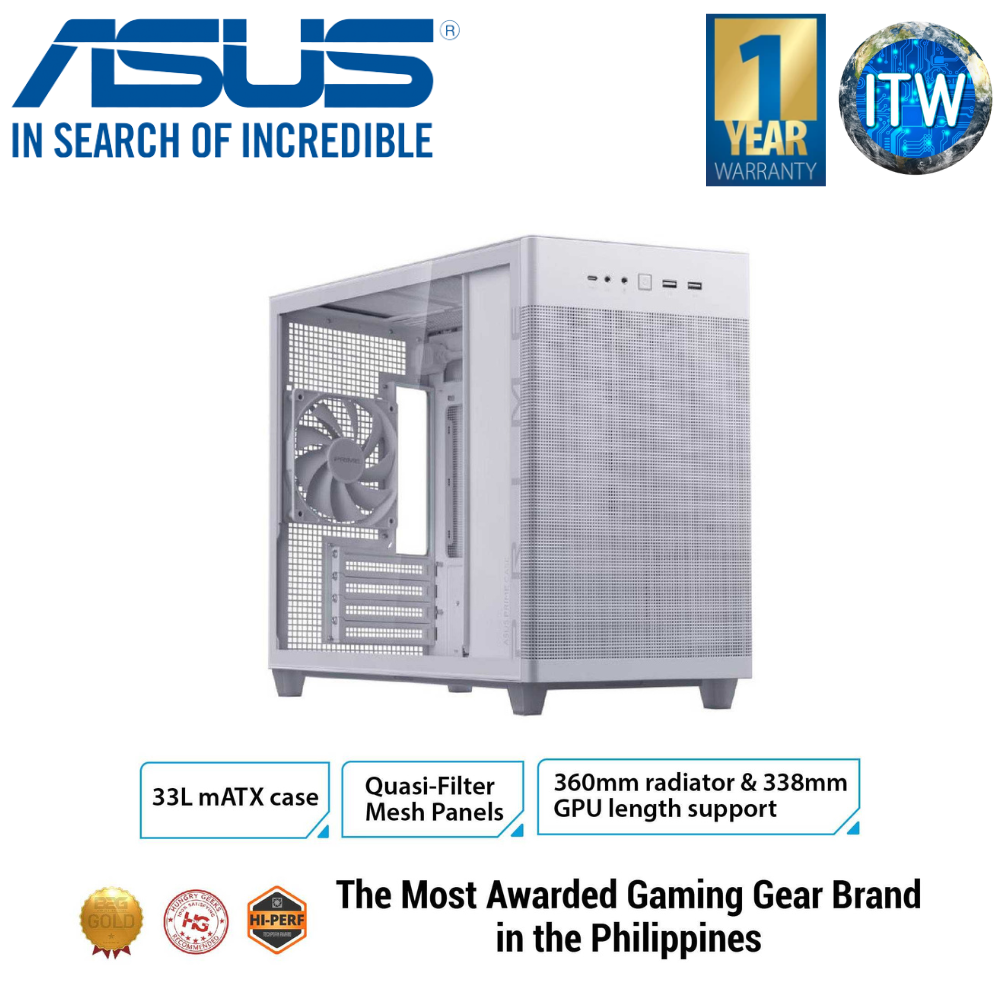

Product Name: ITW | ASUS Prime AP201 Micro-ATX Tempered Glass PC Case (Black and White)
The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
■ Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
■ Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
■ Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
■ Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
■ Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Specification
✎ Model: ASUS Prime AP201 Tempered Glass MicroATX Case
✎ Case Size: Small Tower
✎ Motherboard Support
■ Micro-ATX
■ Mini-ITX
✎ Drive Bays
■ 1 x 2.5" Bay
■ 3 x 2.5"/3.5" Combo Bay
✎ Expansion Slots: 4
✎ Front I/O Port
■ 1 x Headphone
■ 1 x Microphone
■ 2 x USB 3.2 Gen1
■ 1 x USB 3.2 Gen2 Type C
✎ Radiator Support (Top)
■ 120 mm
■ 140 mm
■ 240 mm
■ 280 mm
■ 360 mm
✎ Radiator Support (Rear): 120 mm
✎ Cooling Support (Top)
■ 3 x 120 mm
■ 2 x 140 mm
✎ Cooling Support (Rear): 1 x 120 mm
✎ Pre-installed Fans (Front): None
✎ Pre-installed Fans (Rear): 1 x 120 mm
✎ Maximum CPU Cooler Height: 170 mm
✎ Maximum GPU Length: 338 mm
✎ Maximum PSU Length: 140-180 mm
✎ Removable Dust Filters: Bottom
✎ Maximum Cable Management Space: 32 mm
✎ Dimensions: 205 x 350 x 460 mm
✎ Weight: 5.8 Kg
