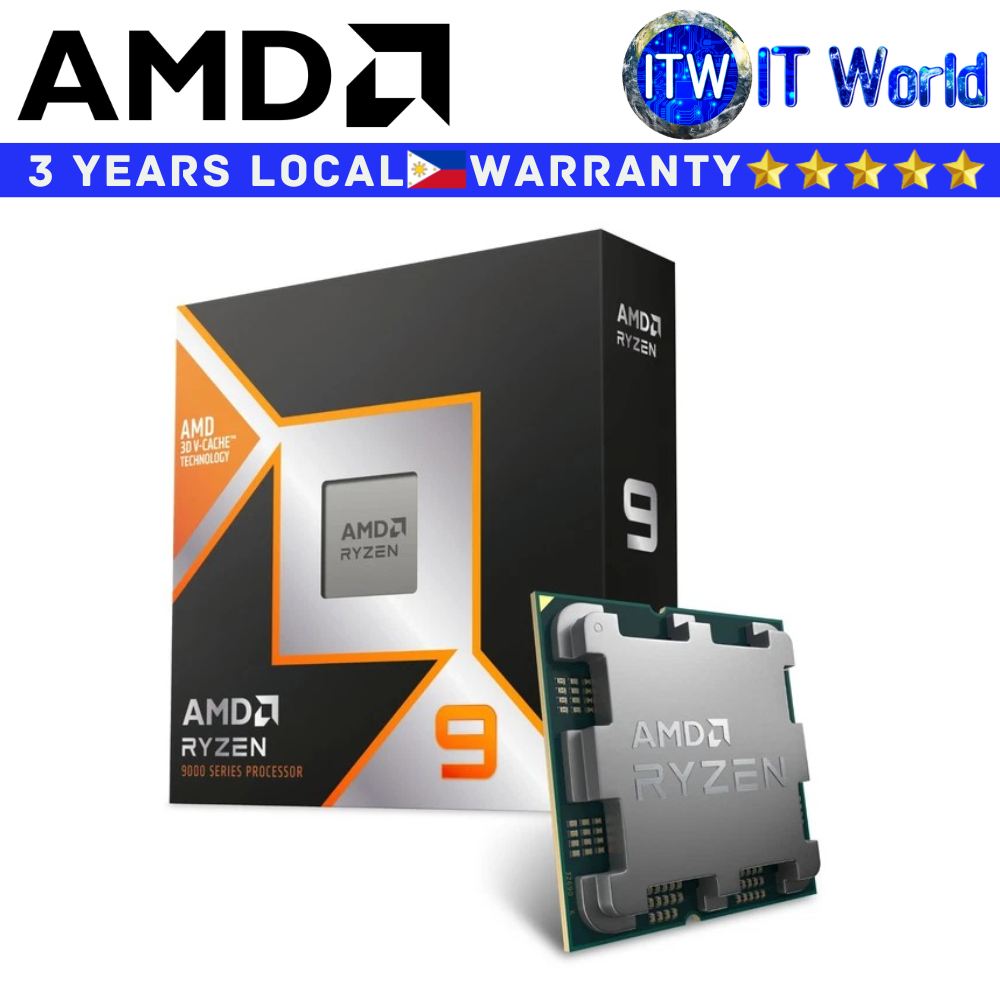

Product Name: Itw | AMD Ryzen 9 9900X3D 12 Cores 24 Threads Desktop Processor without Cooler
Specification
General
* Name: AMD Ryzen™ 9 9900X3D
* Family: Ryzen
* Series: Ryzen 9000 Series
* Form Factor: Desktops, Boxed Processor
* Market Segment: Enthusiast Desktop
* AMD PRO Technologies: No
* Regional Availability: Global
* Former Codename: Granite Ridge AM5
* Architecture: Zen 5
* # of CPU Cores: 12
* Multithreading (SMT): Yes
* # of Threads: 24
* Max. Boost Clock: Up to 5.5 GHz
* Base Clock: 4.4 GHz
* L1 Cache: 960 KB
* L2 Cache: 12 MB
* L3 Cache: 128 MB
* Default TDP: 120W
* Processor Technology for CPU Cores: TSMC 4nm FinFET
* Processor Technology for I/O Die: TSMC 6nm FinFET
* Package Die Count: 3
* Unlocked for Overclocking: Yes
* AMD EXPO™ Memory Overclocking Technology: Yes
* Precision Boost Overdrive: Yes
* Curve Optimizer Voltage Offsets: Yes
* AMD Ryzen™ Master Support: Yes
* CPU Socket: AM5
* Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
* CPU Boost Technology: Precision Boost 2
* Instruction Set: x86-64
* Supported Extensions: AES, AMD-V, AVX512, AVX2, AVX, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
* Thermal Solution (PIB): Not Included
* Recommended Cooler: Liquid cooler recommended for optimal performance
* Max. Operating Temperature (Tjmax): 95°C
* Launch Date: 03/12/2025
* OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
* Native USB 4 (40Gbps): 4
* Native USB 3.2 Gen 1 (5Gbps): 1
* PCI Express® Version: PCIe® 5.0
* Native PCIe® Lanes (Total/Usable): 28, 24
* NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
* System Memory Type: DDR5
* Memory Channels: 2
* Max. Memory: 192 GB
* System Memory Subtype: UDIMM
* Max Memory Speed
> 2x1R DDR5-5600
> 2x2R DDR5-5600
> 4x1R DDR5-3600
> 4x2R DDR5-3600
* ECC Support: Yes (Requires mobo support)
Graphics Capabilities
* Graphics Model: AMD Radeon™ Graphics
* Graphics Core Count: 2
* Graphics Frequency: 2200 MHz
* USB Type-C® DisplayPort™ Alternate Mode: Yes
Key Features
* Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
