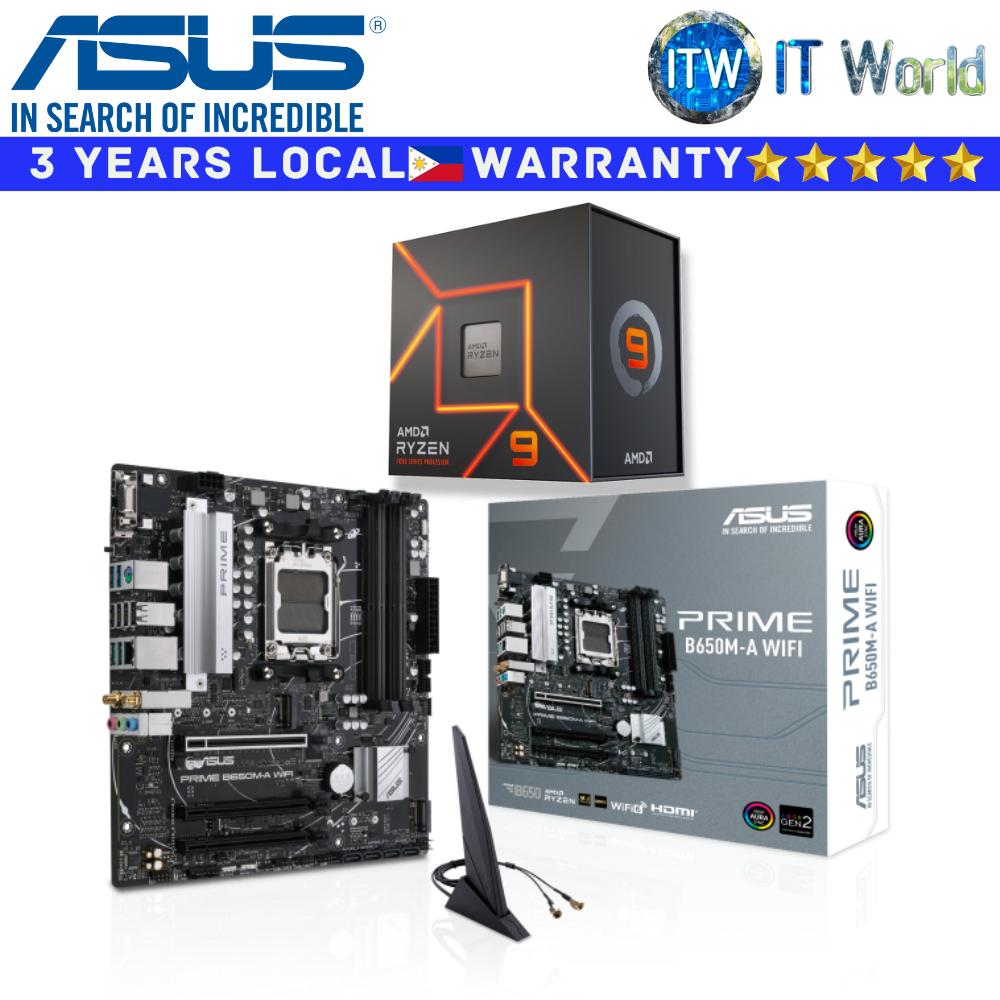

Product Name: Itw | ASUS Motherboard Bundle AMD Ryzen 9 7950X Processor without Cooler and Prime B650M-A Wifi
*** AMD Ryzen 9 7950X Desktop Processor without Cooler ***
Specification
> Former Codename: Raphael AM5
> Architecture: Zen 4
> # of CPU Cores: 16
> Multithreading (SMT): Yes
> # of Threads: 32
> Max. Boost Clock: Up to 5.7 GHz
> Base Clock: 4.5 GHz
> L1 Cache: 1024 KB
> L2 Cache: 16 MB
> L3 Cache: 64 MB
> Default TDP: 170W
> Processor Technology for CPU Cores: TSMC 5nm FinFET
> Processor Technology for I/O Die: TSMC 6nm FinFET
> CPU Compute Die (CCD) Size: 71mm²
> I/O Die (IOD) Size: 122mm²
> Package Die Count: 3
> Unlocked for Overclocking: Yes
> AMD EXPO™ Memory Overclocking Technology: Yes
> Precision Boost Overdrive: Yes
> Curve Optimizer Voltage Offsets: Yes
> AMD Ryzen™ Master Support: Yes
> CPU Socket: AM5
> Supporting Chipsets: A620 , X670E , X670 , B650E , B650
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
> Thermal Solution (PIB): Not Included
> Recommended Cooler: Liquid cooler recommended for optimal performance
> Max. Operating Temperature (Tjmax): 95°C
> Launch Date: 09/27/2022
> *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
> Native USB 3.2 Gen 2 (10Gbps) Ports: 4
> Native USB 3.2 Gen 1 (5Gbps) Ports: 0
> Native USB 2.0 (480Mbps) Ports: 1
> Native SATA Ports: 0
> PCI Express® Version: PCIe® 5.0
> Native PCIe® Lanes (Total/Usable): 28, 24
> Additional Usable PCIe Lanes from Motherboard
- X670E 12x Gen4
- X670 12x Gen4
- B650E 8x Gen4
- B650 8x Gen4
> NVMe Support: Boot, RAID0, RAID1, RAID10
> System Memory Type: DDR5
> Memory Channels: 2
> Max. Memory: 128 GB
> System Memory Subtype: UDIMM
> Max Memory Speed
- 2x1R DDR5-5200
- 2x2R DDR5-5200
- 4x1R DDR5-3600
- 4x2R DDR5-3600
> ECC Support: Yes (Requires mobo support)
Graphics Capabilities
> Graphics Model: AMD Radeon™ Graphics
> Graphics Core Count: 2
> Graphics Frequency: 2200 MHz
> USB Type-C® DisplayPort™ Alternate Mode: Yes
*** ASUS Motherboard Prime B650M-A Wifi mATX AM5 DDR5 ***
CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
> AMD B650 Chipset
Memory
> 4 x DIMM, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
> 1 x DisplayPort**
> 1 x VGA port
> 1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
> AMD B650 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Wireless & Bluetooth
> Wi-Fi 6
> 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
> Supports 2.4/5GHz frequency band
> Bluetooth® v5.2
USB
> Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
> 2 x USB 3.2 Gen 2 ports (2 x Type-A)
> 2 x USB 3.2 Gen 1 ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x DisplayPort
> 1 x VGA port
> 1 x HDMI® port
> 1 x Wi-Fi Module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
> 1 x PS/2 Keyboard/Mouse combo port
Form Factor
> mATX / 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
