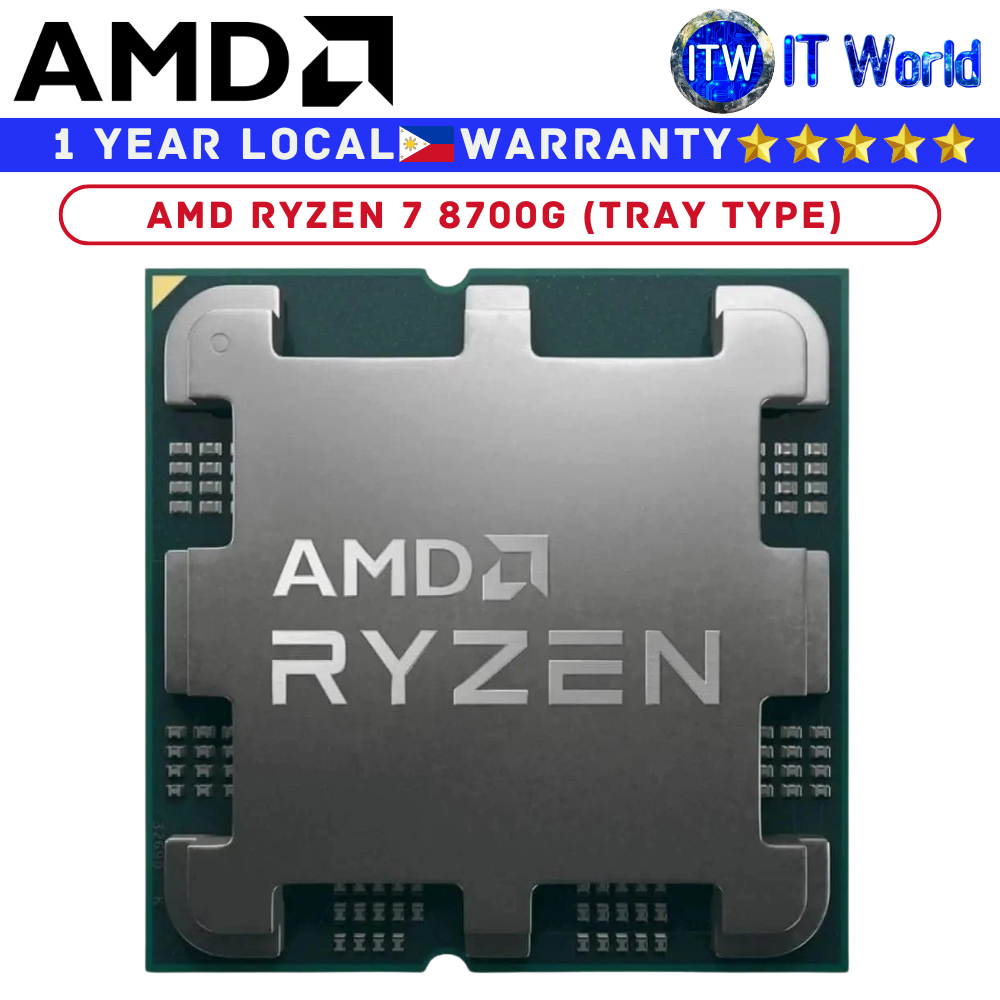

Itw | AMD Ryzen 7 8700G 8 Cores 16 Threads Desktop Processor (Box | Tray Type)

Product Name: Itw | AMD Ryzen 7 8700G 8 Cores 16 Threads Desktop Processor (Box | Tray Type)

Specification

General

> Name: AMD Ryzen™ 7 8700G

> Family: Ryzen

> Series: Ryzen 8000 Series

> Form Factor: Desktops

> AMD PRO Technologies: No

> Regional Availability: Global

> Former Codename: Phoenix

> Architecture: Zen 4

> # of CPU Cores: 8

> Multithreading (SMT): Yes

> # of Threads: 16

> Max. Boost Clock: Up to 5.1 GHz

> Base Clock: 4.2 GHz

> L2 Cache: 8 MB

> L3 Cache: 16 MB

> Default TDP: 65W

> AMD Configurable TDP (cTDP): 45-65W

> Processor Technology for CPU Cores: TSMC 4nm FinFET

> CPU Compute Die (CCD) Size: 178mm²

> Package Die Count: 1

> Unlocked for Overclocking: Yes

> AMD EXPO™ Memory Overclocking Technology: Yes

> Precision Boost Overdrive: Yes

> Curve Optimizer Voltage Offsets: Yes

> AMD Ryzen™ Master Support: Yes

> CPU Socket: AM5

> Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

> CPU Boost Technology: Precision Boost 2

> Instruction Set: x86-64

> Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

> Max. Operating Temperature (Tjmax): 95°C

> Launch Date: 1/31/2024

> *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

> Native USB 4 (40Gbps): 2

> Native USB 3.2 Gen 2 (10Gbps): 2

> Native USB 2.0 (480Mbps): 1

> PCI Express® Version: PCIe® 4.0

> Native PCIe® Lanes (Total/Usable): 20, 16

> NVMe Support: Boot, RAID0, RAID1

> System Memory Type: DDR5

> Memory Channels: 2

> Max. Memory: 256 GB

> System Memory Subtype: UDIMM

> Max Memory Speed

- 2x1R DDR5-5200

- 2x2R DDR5-5200

- 4x1R DDR5-3600

- 4x2R DDR5-3600

Graphics Capabilities

> Graphics Model: AMD Radeon™ 780M

> Graphics Core Count: 12

> Graphics Frequency: 2900 MHz

> DirectX® Version: 12

> DisplayPort™ Version: 2.1

> DisplayPort Extensions: Adaptive-Sync, HDR Metadata, UHBR10

> DisplayPort Max Refresh Rates (SDR): 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz

> DisplayPort Max Refresh Rates (HDR): 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz

> HDMI® Version: 2.1

> HDCP Version Supported: 2.3

> USB Type-C® DisplayPort™ Alternate Mode: Yes

> Multi-Monitor Support: Yes

> Max Displays: 4

> AMD FreeSync™: Yes

> Wireless Display: Miracast

> Max Video Encode Bandwidth (SDR): 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

> Max Video Decode Bandwidth: 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

> AMD SmartAccess Memory: Available

AI Engine Capabilities

> Brand Name: AMD Ryzen™ AI

> AMD Ryzen™ AI: Available

> Performance: Up to 16 TOPS

Product IDs

> Product ID Boxed: 100-100001236BOX

> Product ID Tray: 100-000001236

> Product ID MPK: 100-100001236MPK

Security, Virtualization, and Manageability

> AMD Enhanced Virus Protection (NX bit): Yes
