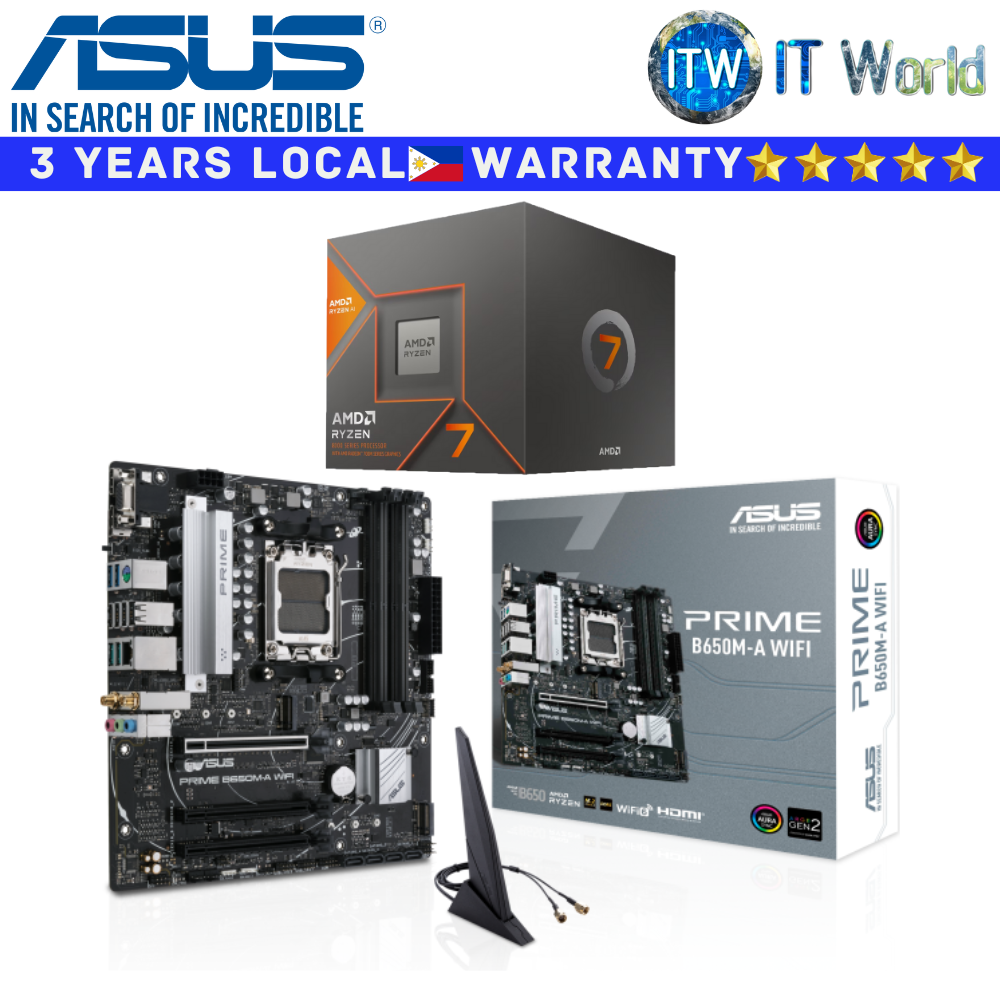

Product Name: Itw | ASUS Bundle Ryzen Motherboard AMD 7 8700G with ASUS Prime B650M-A Wifi
*** AMD Ryzen 7 8700G 8-Cores 16-Threads Desktop Processor ***
Specification
General
* Name: AMD Ryzen™ 7 8700G
* Family: Ryzen
* Series: Ryzen 8000 Series
* Form Factor: Desktops
* AMD PRO Technologies: No
* Consumer Use: Yes
* Regional Availability: Global
* Former Codename: Phoenix
* Architecture: Zen 4
* # of CPU Cores: 8
* Multithreading (SMT): Yes
* # of Threads: 16
* Max. Boost Clock: Up to 5.1 GHz
* Base Clock: 4.2 GHz
* L2 Cache: 8 MB
* L3 Cache: 16 MB
* Default TDP: 65W
* AMD Configurable TDP (cTDP): 45-65W
* Processor Technology for CPU Cores: TSMC 4nm FinFET
* CPU Compute Die (CCD) Size: 178mm²
* Package Die Count: 1
* Unlocked for Overclocking: Yes
* AMD EXPO™ Memory Overclocking Technology: Yes
* Precision Boost Overdrive: Yes
* Curve Optimizer Voltage Offsets: Yes
* AMD Ryzen™ Master Support: Yes
* CPU Socket: AM5
* CPU Boost Technology: Precision Boost 2
* Instruction Set: x86-64
* Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
* Max. Operating Temperature (Tjmax): 95°C
* Launch Date: 1/31/2024
*OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
* Native USB 4 (40Gbps) Ports: 2
* Native USB 3.2 Gen 2 (10Gbps) Ports: 2
* Native USB 2.0 (480Mbps) Ports: 1
* PCI Express® Version: PCIe® 4.0
* Native PCIe® Lanes (Total/Usable): 20 , 16
* NVMe Support: Boot, RAID0, RAID1
* System Memory Type: DDR5
* Memory Channels: 2
* Max. Memory: 256 GB
* System Memory Subtype: UDIMM
* Max Memory Speed
> 2x1R DDR5-5200
> 2x2R DDR5-5200
> 4x1R DDR5-3600
> 4x2R DDR5-3600
*** ASUS Motherboard Prime B650M-A Wifi mATX AM5 DDR5 ***
CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
> AMD B650 Chipset
Memory
> 4 x DIMM, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
> 1 x DisplayPort**
> 1 x VGA port
> 1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
> AMD B650 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
USB
> Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Back Panel I/O Ports
> 2 x USB 3.2 Gen 2 ports (2 x Type-A)
> 2 x USB 3.2 Gen 1 ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x DisplayPort
> 1 x VGA port
> 1 x HDMI® port
> 1 x Wi-Fi Module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
> 1 x PS/2 Keyboard/Mouse combo port
Form Factor
> mATX / 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
