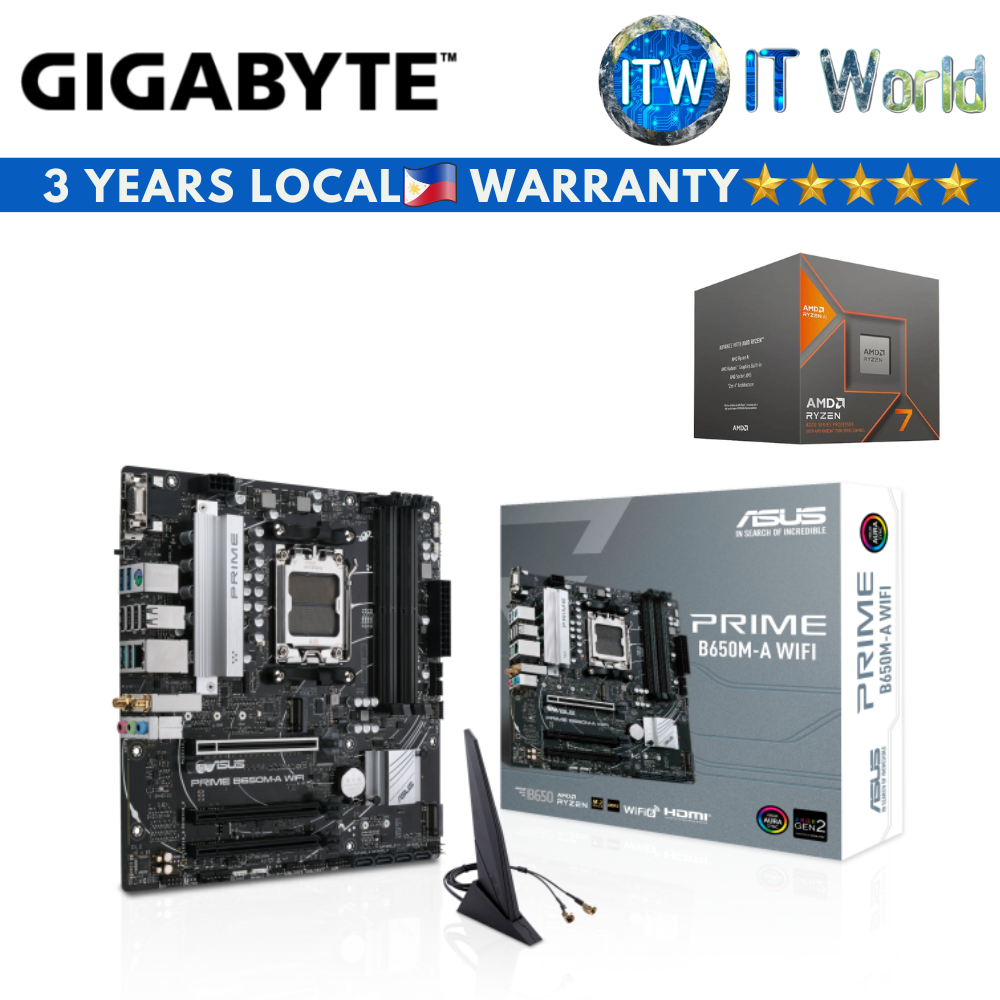

Product Name: AMD Ryzen 7 8700G Processor with Asus Prime B650M-A WiFi mATX AM5 DDR5 Motherboard Bundle
*** AMD Ryzen 7 8700G 8-Cores 16-Threads Desktop Processor with Wraith Stealth Cooler ***
Specification
• Platform: Desktop
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics
• AMD PRO Technologies: No
• Consumer Use: Yes
• Regional Availability: Global
• Former Codename: "Phoenix"
• Architecture: "Zen 4"
• # of CPU Cores: 8
• Multithreading (SMT): Yes
• # of Threads: 16
• Max. Boost Clock: Up to 5.1GHz
• Base Clock: 4.2GHz
• L2 Cache: 8MB
• L3 Cache: 16MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• CPU Compute Die (CCD) Size: 178mm²
• Package Die Count: 1
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Max. Operating Temperature (Tjmax): 95°C
• *OS Support
> Windows 11 - 64-Bit Edition
> Windows 10 - 64-Bit Edition
> RHEL x86 64-Bit
> Ubuntu x86 64-Bit
> *Operating System (OS) support will vary by manufacturer.
*** Asus Prime B650M-A WiFi mATX AM5 DDR5 Motherboard ***
Key Features
• AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Back Panel I/O Ports
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port
USB
• Rear USB (Total 8 ports)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Wireless & Bluetooth
Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2
Graphics
• 1 x DisplayPort**
• 1 x VGA port
• 1 x HDMI® port***
CPU: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset: AMD B650 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD B650 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb Ethernet
Expansion Slots
• AMD Ryzen™ 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD B650 Chipset
• 2 x PCIe 4.0 x16 slots (support x1 mode)
Form Factor
• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
