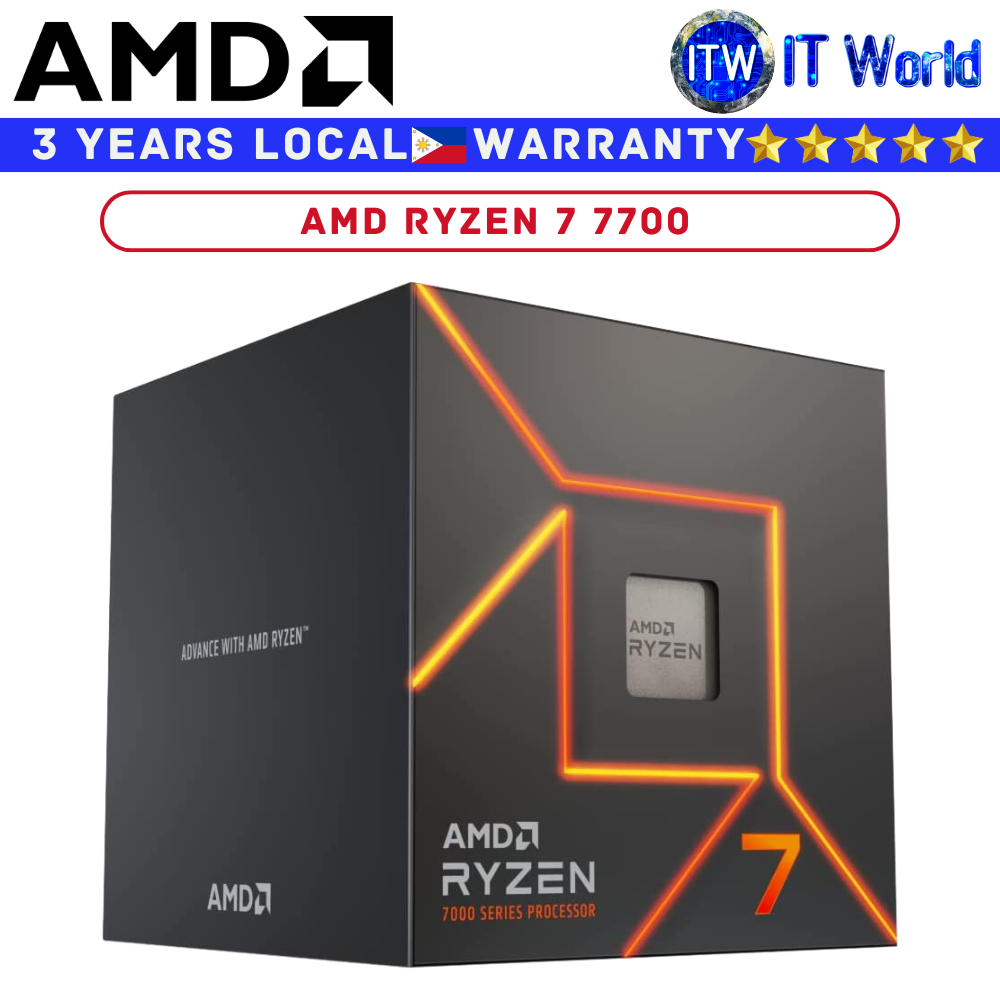

AMD Ryzen 7 7700 8 Cores 16 Threads Processor (Box with cooler)

Product Name: Itw | AMD Ryzen 7 7700 8 Cores 16 Threads Processor (Box with cooler | Tray Type without cooler)

Specification

General

> Name: AMD Ryzen™ 7 7700

> Family: Ryzen

> Series: Ryzen 7000 Series

> Form Factor: Desktops, Boxed Processor

> Market Segment: Enthusiast Desktop

> AMD PRO Technologies: No

> Regional Availability: Global

> Former Codename: Raphael AM5

> Architecture: Zen 4

> # of CPU Cores: 8

> Multithreading (SMT): Yes

> # of Threads: 16

> Max. Boost Clock: Up to 5.3 GHz

> Base Clock: 3.8 GHz

> L1 Cache: 512 KB

> L2 Cache: 8 MB

> L3 Cache: 32 MB

> Default TDP: 65W

> Processor Technology for CPU Cores: TSMC 5nm FinFET

> Processor Technology for I/O Die: TSMC 6nm FinFET

> CPU Compute Die (CCD) Size: 71mm²

> I/O Die (IOD) Size: 122mm²

> Package Die Count: 2

> Unlocked for Overclocking: Yes

> AMD EXPO™ Memory Overclocking Technology: Yes

> Precision Boost Overdrive: Yes

> Curve Optimizer Voltage Offsets: Yes

> AMD Ryzen™ Master Support: Yes

> CPU Socket: AM5

> Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

> CPU Boost Technology: Precision Boost 2

> Instruction Set: x86-64

> Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

> Max. Operating Temperature (Tjmax): 95°C

> Launch Date: 01/14/2023

> *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

> Native USB 3.2 Gen 2 (10Gbps): 4

> Native USB 3.2 Gen 1 (5Gbps): 0

> Native USB 2.0 (480Mbps): 1

> Native SATA Ports: 0

> PCI Express® Version: PCIe® 5.0

> Native PCIe® Lanes (Total/Usable): 28, 24

> Additional Usable PCIe Lanes from Motherboard

- X670E 12x Gen4

- X670 12x Gen4

- B650E 8x Gen4

- B650 8x Gen4

> NVMe Support: Boot, RAID0, RAID1, RAID10

> System Memory Type: DDR5

> Memory Channels: 2

> Max. Memory: 128 GB

> System Memory Subtype: UDIMM

> Max Memory Speed

- 2x1R DDR5-5200

- 2x2R DDR5-5200

- 4x1R DDR5-3600

- 4x2R DDR5-3600

> ECC Support: Yes (Requires mobo support)

Graphics Capabilities

> Graphics Model: AMD Radeon™ Graphics

> Graphics Core Count: 2

> Graphics Frequency: 2200 MHz

> USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

> Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
