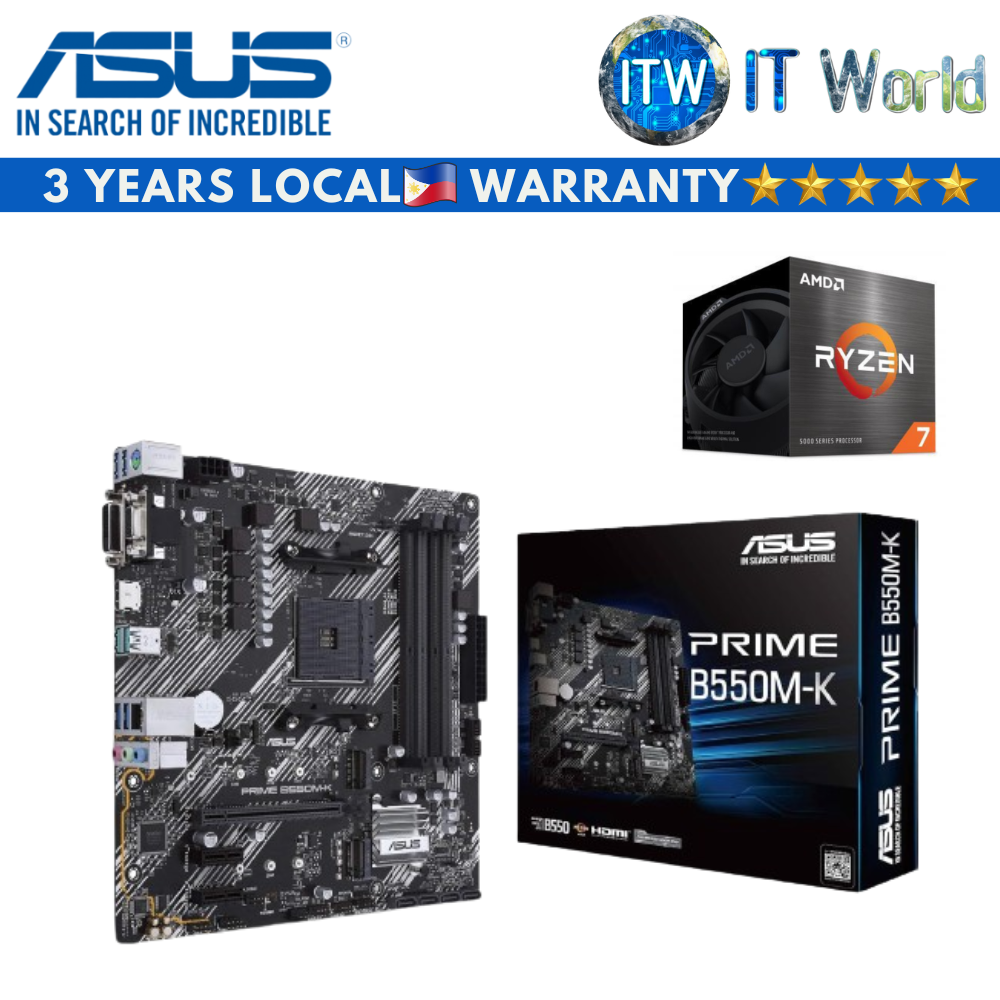

Product Name: AMD Ryzen 7 5700 Processor with Asus Prime B550M-K AMD B550 MicroATX Motherboard Bundle

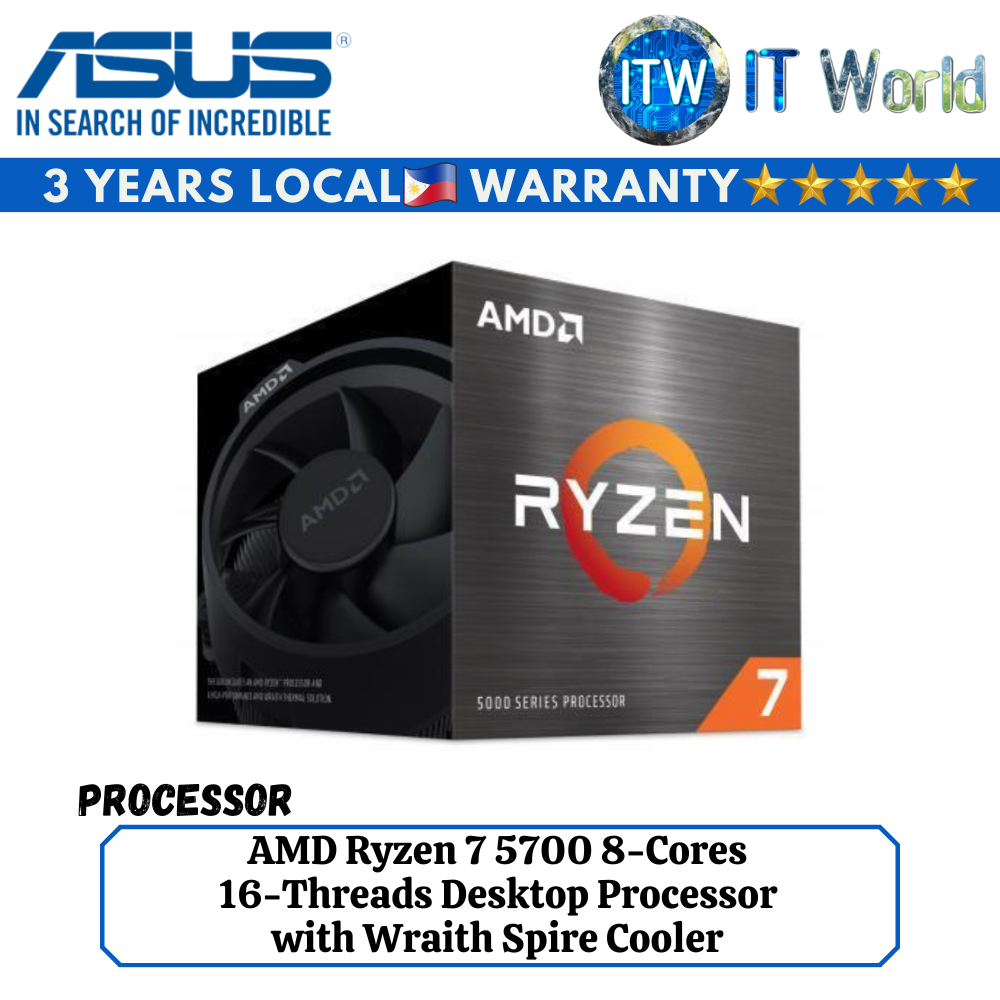

*** AMD Ryzen 7 5700 8-Cores 16-Threads Desktop Processor with Wraith Spire Cooler ***
Key Features
• Features eight cores and 16 threads to help quickly load and multitask demanding applications
• Designed for socket AM4 motherboards using the powerful Zen 3 architecture
• 7nm 5th generation Ryzen processor offers significantly improved performance compared to the previous generation
• A base clock speed of 3.7 GHz and a max boost clock speed of 4.6 GHz in addition to 16MB of L3 Cache
• Built to provide the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences
Specification
• Platform: Boxed Processor
• Market Segment: Mainstream Desktop
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 7 Desktop Processors
• Consumer Use: Yes
• Regional Availability: Global, China, NA, EMEA, APJ, LATAM
• Former Codename: "Cezanne"
• Architecture: "Zen 3"
• # of CPU Cores: 8
• # of Threads: 16
• Max. Boost Clock: Up to 4.6GHz
• Base Clock: 3.7GHz
• L1 Cache: 512KB
• L2 Cache: 4MB
• L3 Cache: 16MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: TSMC 7nm FinFET
• CPU Compute Die (CCD) Size: 180mm²
• Package Die Count: 1
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• Socket Count: 1P
Supporting Chipsets
- X570
- X470
- X370
- B550
- B450
- B350
- A520
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): AMD Wraith Stealth
• Max. Operating Temperature (Tjmax): 95°C

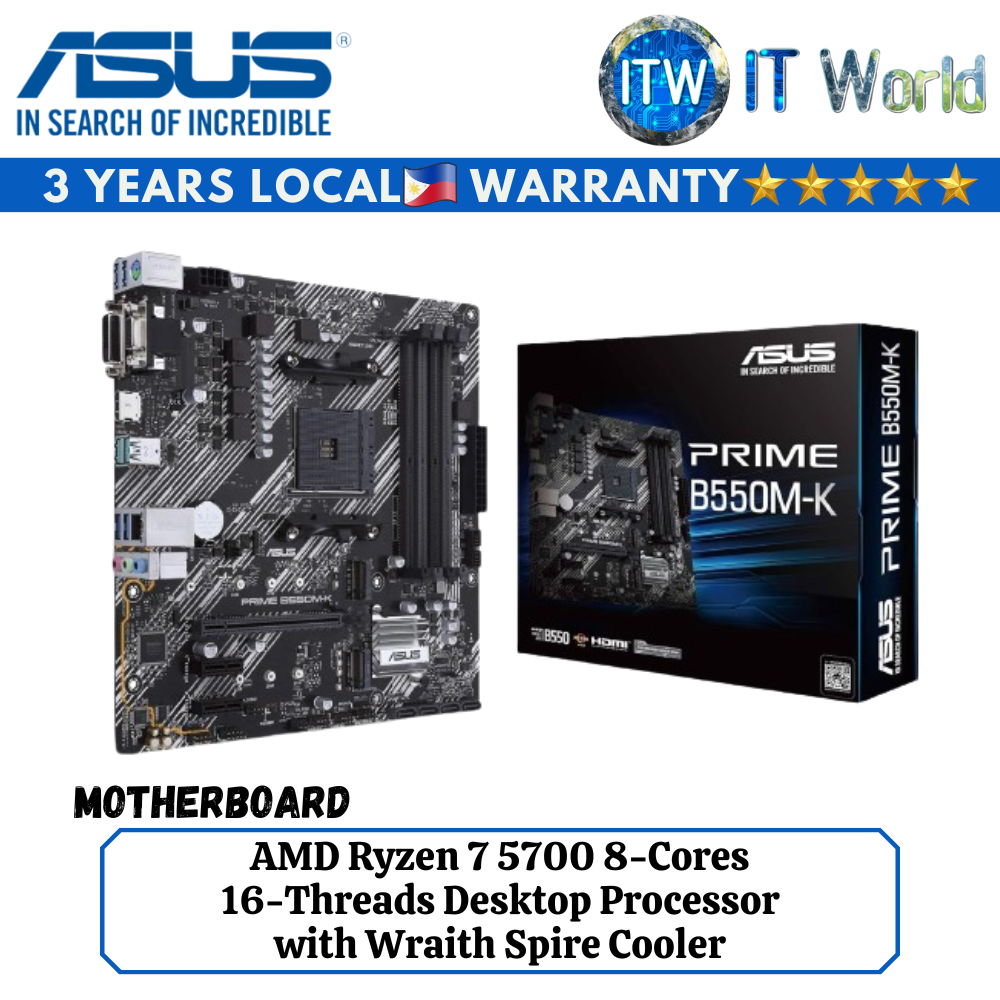

*** Asus Prime B550M-K AMD B550 (Ryzen AM4) MicroATX Motherboard ***
Key Feature
• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection
Specification
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors *
Chipset
AMD B550
Memory
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
• AMD RyzenTM 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
Onboard Graphics
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI 2.1(4K@60HZ)
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Lan
• Realtek RTL8111H 1Gb Ethernet
• ASUS LANGuard
Expansion Slots
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 (x16 mode)
• AMD RyzenTM 4000 G-Series Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset
• 2 x PCIe 3.0 x1
Storage Interface
• Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• AMD RyzenTM 4000 G-Series Processors :
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• AMD B550 Chipset :
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• 4 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10
USB
• Rear USB Port ( Total 6 )
• 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• Front USB Port ( Total 6 )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)
Form Factor
• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
