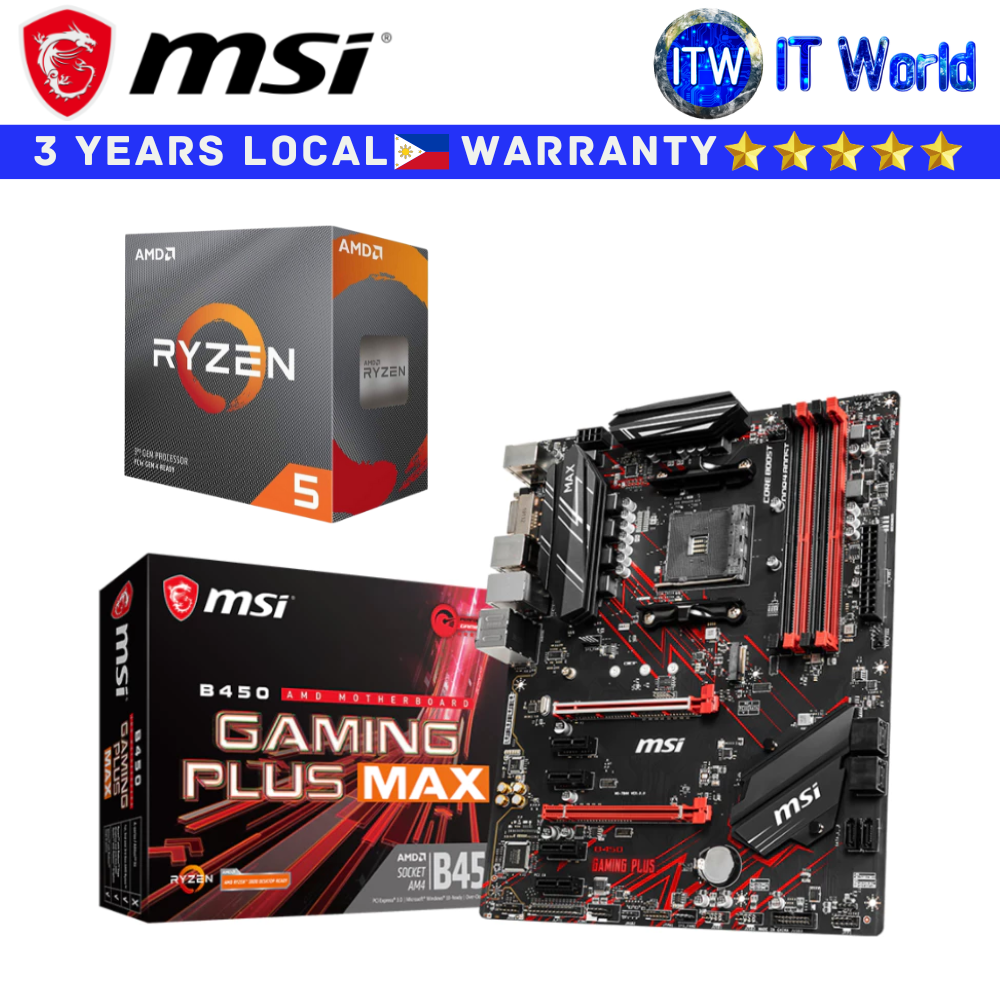

Product Name: Itw | MSI Bundle Motherboard AMD Ryzen 5 3600 with B450 Gaming Plus Max
■ ■ AMD Ryzen 5 3600 6-Cores, 12-Thread 4.2GHz Max Boost, 3.6GHz Base Desktop Processor ■ ■
Specification
General
✎ Platform: Boxed Processor
✎ Product Family: AMD Ryzen™ Processors
✎ Product Line: AMD Ryzen™ 5 Desktop Processors
✎ # of CPU Cores: 6
✎ # of Threads: 12
✎ Max. Boost Clock: Up to 4.2GHz
✎ Base Clock: 3.6GHz
✎ L1 Cache: 384KB
✎ L2 Cache: 3MB
✎ L3 Cache: 32MB
✎ Default TDP: 65W
✎ Processor Technology for CPU Cores: TSMC 7nm FinFET
✎ Unlocked for Overclocking: Yes
✎ CPU Socket: AM4
✎ Thermal Solution (PIB): Wraith Stealth
✎ Thermal Solution (MPK): Wraith Stealth
✎ Max. Operating Temperature (Tjmax): 95°C
✎ Launch Date: 7/7/2019
✎ *OS Support
■ Windows 11 - 64-Bit Edition
■ Windows 10 - 64-Bit Edition
■ RHEL x86 64-Bit
■ Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
✎ PCI Express® Version: PCIe 4.0 x16
✎ System Memory Type: DDR4
✎ Memory Channels: 2
✎ System Memory Specification: Up to 3200MHz
Product IDs
✎ Product ID Boxed: 100-100000031BOX
✎ Product ID Tray: 100-000000031
✎ Product ID MPK: 100-100000031MPK
■ ■ MSI Motherboard B450 Gaming Plus Max ATX AM4 DDR4 ■ ■
Specification
PROCESSOR
✎ Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
CHIPSET
✎ AMD® B450 Chipset
MEMORY
✎ 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
■ Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
■ For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
■ For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
✎ Dual channel memory architecture
✎ Supports non-ECC UDIMM memory
✎ Supports ECC UDIMM memory (non-ECC mode)
SLOTS
✎ 1 x PCIe 3.0 x16 slot (PCI_E1)
■ 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
■ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
■ Athlon™ with Radeon™ Vega Graphics support x4 mode
✎ 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
✎ 4 x PCIe 2.0 x1 slots1
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
STORAGE
✎ AMD® CPU
■ 2 x SATA 6Gb/s ports1
■ 1 x M.2 slot (Key M)1
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
✎ AMD® B450 Chipset
■ 4 x SATA 6Gb/s ports
*SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
USB
✎ AMD® B450 Chipset
■ 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
■ 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
■ 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
✎ AMD® CPU
■ 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
✎ Realtek® ALC892/ALC897 Codec
✎ 7.1-Channel High Definition Audio
LAN
✎ 1 x Realtek® 8111H Gigabit LAN controller
BACK PANEL PORTS
✎ PS/2 Combo Port
✎ USB 3.2 Gen1
✎ LAN Port
✎ HD Audio Connectors
✎ Flash BIOS Button
✎ USB 2.0 Ports
✎ DVI-D Port
✎ HDMI Port
✎ USB 3.2 Gen2
DIMENSIONS
✎ 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
✎ ATX Form Factor
OPERATING SYSTEM
✎ Support for Windows® 10 64-bit
✎ Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
