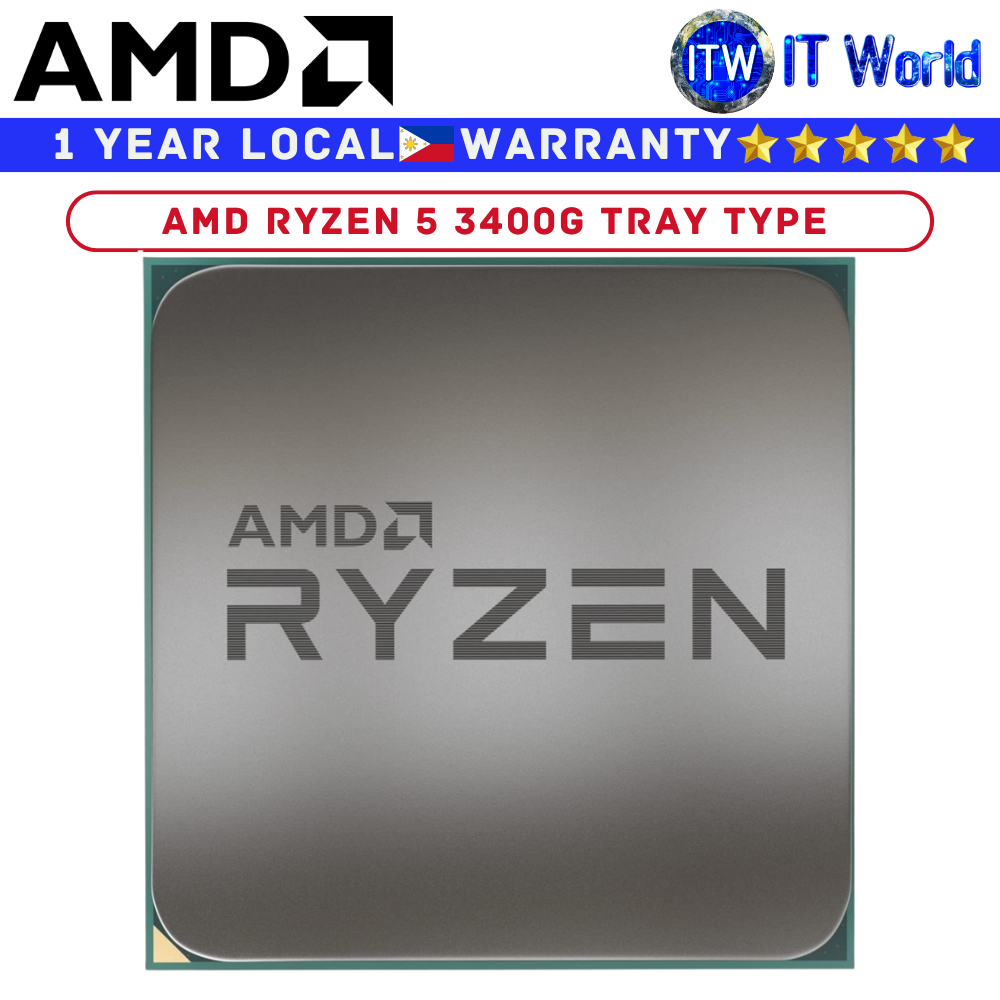

AMD Ryzen 5 3400G 4 Cores 8 Threads Desktop Processor (Tray Type)

Product Name: Itw | AMD Ryzen 5 3400G 4 Cores 8 Threads Desktop Processor (Box | Tray Type)

Specification

General

> Name: AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics

> Family: Ryzen

> Series: Ryzen 3000 Series

> Form Factor: Desktops, Boxed Processor

> Market Segment: Mainstream Desktop

> AMD PRO Technologies: No

> Regional Availability: Global, China, NA, EMEA, APJ, LATAM

> Former Codename: Picasso

> Architecture: Zen+

> # of CPU Cores: 4

> Multithreading (SMT): Yes

> # of Threads: 8

> Max. Boost Clock: Up to 4.2 GHz

> Base Clock: 3.7 GHz

> L1 Cache: 384 KB

> L2 Cache: 2 MB

> L3 Cache: 4 MB

> Default TDP: 65W

> AMD Configurable TDP (cTDP): 45-65W

> Processor Technology for CPU Cores: 12nm FinFET

> CPU Compute Die (CCD) Size: 210mm²

> Package Die Count: 1

> Total Transistor Count: 4.94 Billion

> Unlocked for Overclocking: Yes

> CPU Socket: AM4

> Supporting Chipsets: X570, X470, X370, B450, B350, A320

> CPU Boost Technology: Precision Boost 2

> Instruction Set: x86-64

> Supported Extensions: AES, AMD-V, AVX, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

> Thermal Solution (PIB): AMD Wraith Spire

> Thermal Solution (MPK): AMD Wraith Spire

> Max. Operating Temperature (Tjmax): 95°C

> Launch Date: 07/07/2019

> *OS Support: Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

> Native USB 3.2 Gen 2 (10Gbps): 0

> Native USB 3.2 Gen 1 (5Gbps): 4

> Native USB 2.0 (480Mbps): 0

> Native SATA Ports: 0

> PCI Express® Version: PCIe® 3.0

> Native PCIe® Lanes (Total/Usable): 20, 16

> Additional Usable PCIe Lanes from Motherboard: X470 2x Gen 3, 8x Gen 2

> NVMe Support: Boot, RAID0, RAID1, RAID10

> System Memory Type: DDR4

> Memory Channels: 2

> Max. Memory: 64 GB

> System Memory Subtype: UDIMM

> Max Memory Speed

- 2x1R DDR4-2933

- 2x2R DDR4-2667

- 4x1R DDR4-2133

- 4x2R DDR4-1866

> ECC Support: Yes (Requires mobo support)

Graphics Capabilities

> Graphics Model: Radeon™ RX Vega 11 Graphics

> Graphics Core Count: 11

> Total Graphics Shaders: 704

> Graphics Frequency: 1400 MHz

> GPU Max. Memory: 2 GB

> WDDM Version: 2.7

> DirectX® Version: 12

> OpenGL®: 4.6

> OpenCL™: 2.2

> DisplayPort™ Version: 1.4a

> DisplayPort Extensions: HBR3, HDR Metadata, Adaptive-Sync

> DisplayPort Max Refresh Rates (SDR): 3840x2160 @ 60Hz, 3440x1440 @ 144Hz, 2560x1440 @ 180Hz, 1920x1080 @ 240Hz

> DisplayPort Max Refresh Rates (HDR): 3840x2160 @ 60Hz, 3440x1440 @ 60Hz, 2560x1440 @ 60Hz, 1920x1080 @ 120Hz

> HDMI® Version: 2.0

> HDCP Version Supported: 2.2

> USB Type-C® DisplayPort™ Alternate Mode: Yes

> Multi-Monitor Support: Yes

> Max Displays: 3

> AMD FreeSync™: Yes

> AMD Eyefinity Single Large Surface (SLS): No

> Wireless Display: Miracast

> Max Video Encode Bandwidth (SDR): 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265

> Max Video Decode Bandwidth: 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

Security, Virtualization, and Manageability

> AMD Enhanced Virus Protection (NX bit): Yes
