AWP AID650 650VA/390W | AID650 ECO 650VA/240W Line Interactive UPS

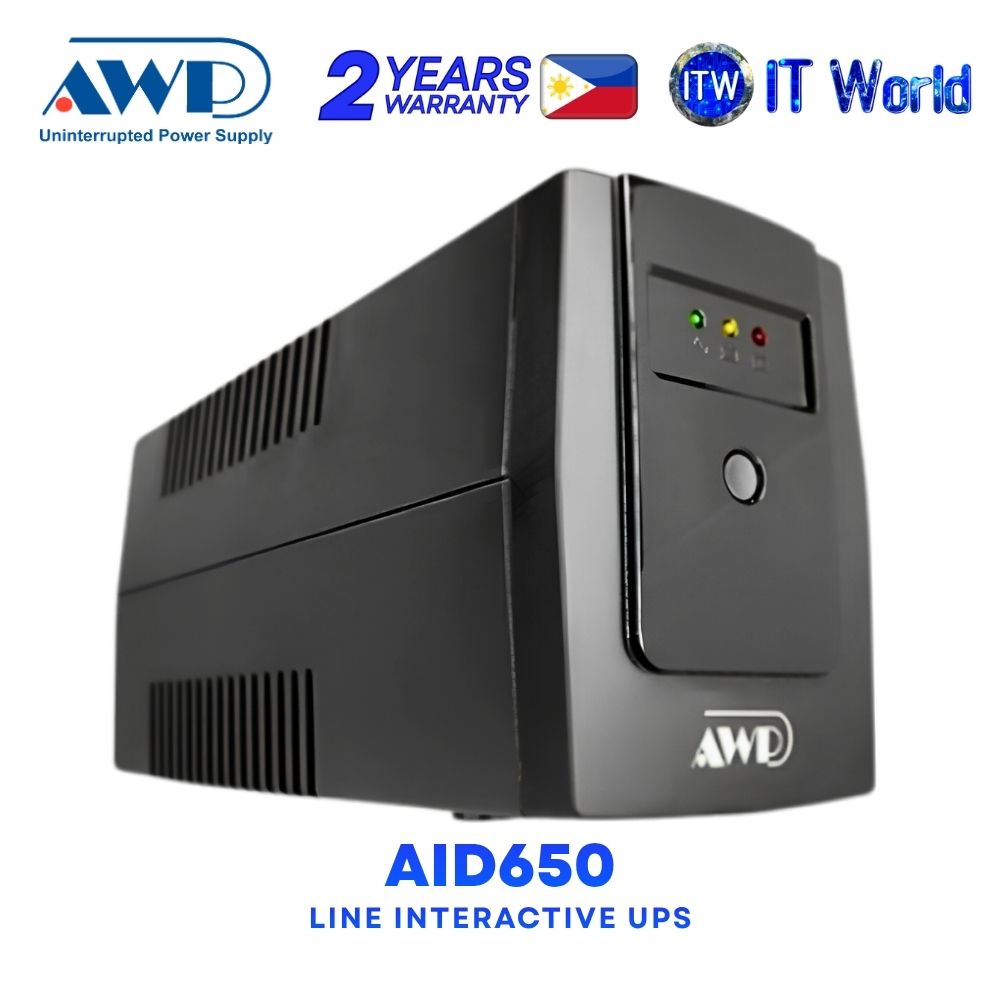

AWP AID650 650VA/390W Line Interactive UPS itw
⚡ Capacity: 650VA / 390W
🔋 Battery: 1x 12V/7Ah
🔌 Sockets: 4x US Standard Sockets
🖥️ Form Factor: Tower / Desk Type
🧠 Control: Microprocessor-based digital control
⚙️ AVR: Boost & Buck AVR for automatic voltage regulation
🔄 Power Features: Cold start & auto-restart on power recovery
📺 Display: LED or LCD selectable display panel
📡 Input: Wide input voltage range with auto-sensing frequency
🛡️ Protection: Surge, overload, short circuit, and battery overcharge/discharge protection
🔋 Battery Management: Temperature compensation & 3-stage charging
🔄 Charging: Automatic charging in OFF mode
🔧 Self-Test: Power-on self-test at startup
📐 Dimensions: 95 x 320 x 160mm
⚖️ Weight: 3.8 kg
Optional Features (not included in base unit):
🔗 RS232 / USB communication port
🛡️ RJ11 / RJ45 protection
⏹️ No-load shutdown
💻 Unattended safety shutdown via software when connected via RS232/USB

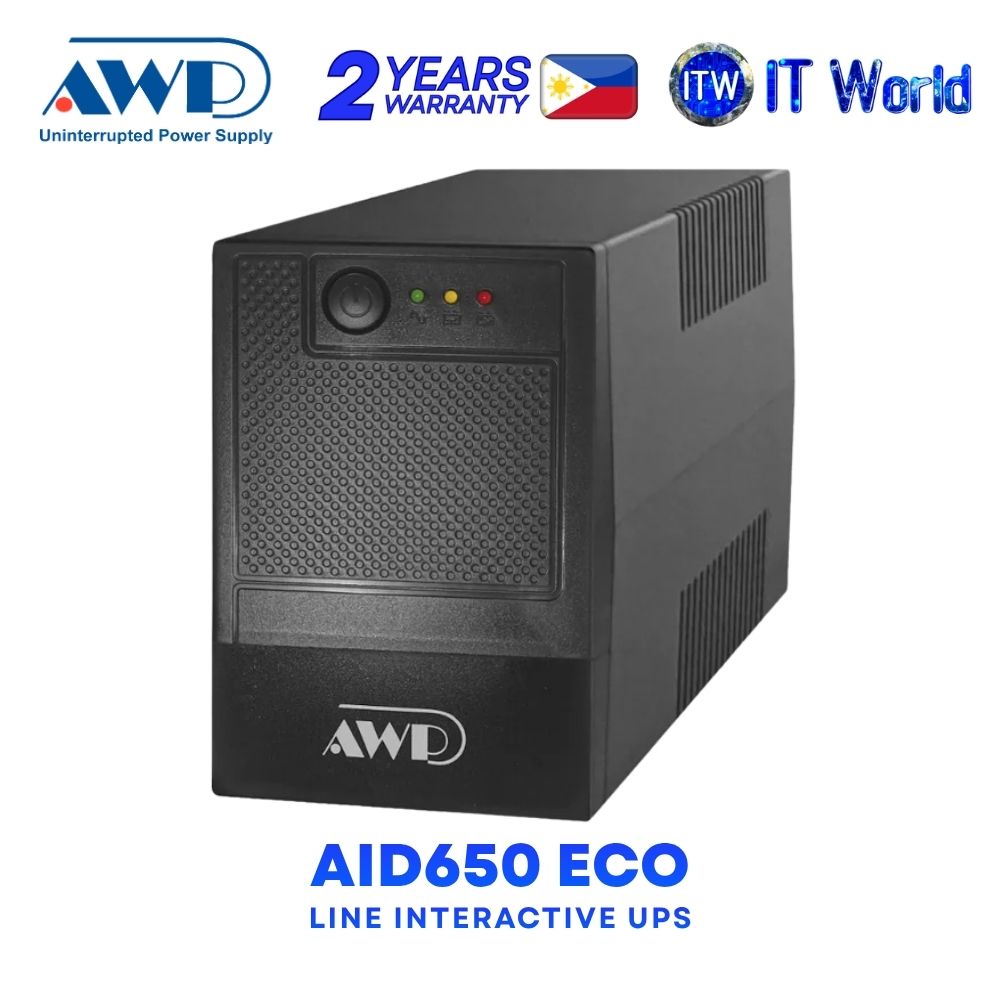

AWP AID650 ECO 650VA/240W Line Interactive UPS itw
⚡ Capacity: 650VA / 240W
🧠 Control: Microprocessor-based digital control technology
⚙️ AVR: Built-in AVR with boost and buck
🛡️ Protection: Surge, short-circuit & overload protection
📡 Frequency: Auto-sensing frequency
⚡ Conversion: High-speed synchronous conversion
🔄 Power Features: Cold start capability & intelligent power ON/OFF
🔋 Battery: 12V with intelligent battery management
📺 Display: User-friendly LED and LCD display
🔌 Input: 220/230/240 Vac, 1 Phase
📶 Input Frequency: 50/60Hz auto sense
🔌 Output: 220/230/240 Vac, 1 Phase
〰️ Waveform: Mains mode – Sinusoidal; Battery mode – Simulated sine wave
⏱️ Transfer Time: 2~7 ms; 10ms max
🔌 Socket: 4x US Standard Socket
🔋 Recharge: Fastest charging capacity / Auto charging at OFF mode
💻 Communication: USB / RS232 / SNMP (optional)
🛡️ Protections: Overload & short circuit protection; AVR boost and buck
🛠️ Case: Metal case
📐 Dimensions: 100 x 240 x 142mm
⚖️ Weight: 3.8 kg N.W. / 4.0 kg G.W.
