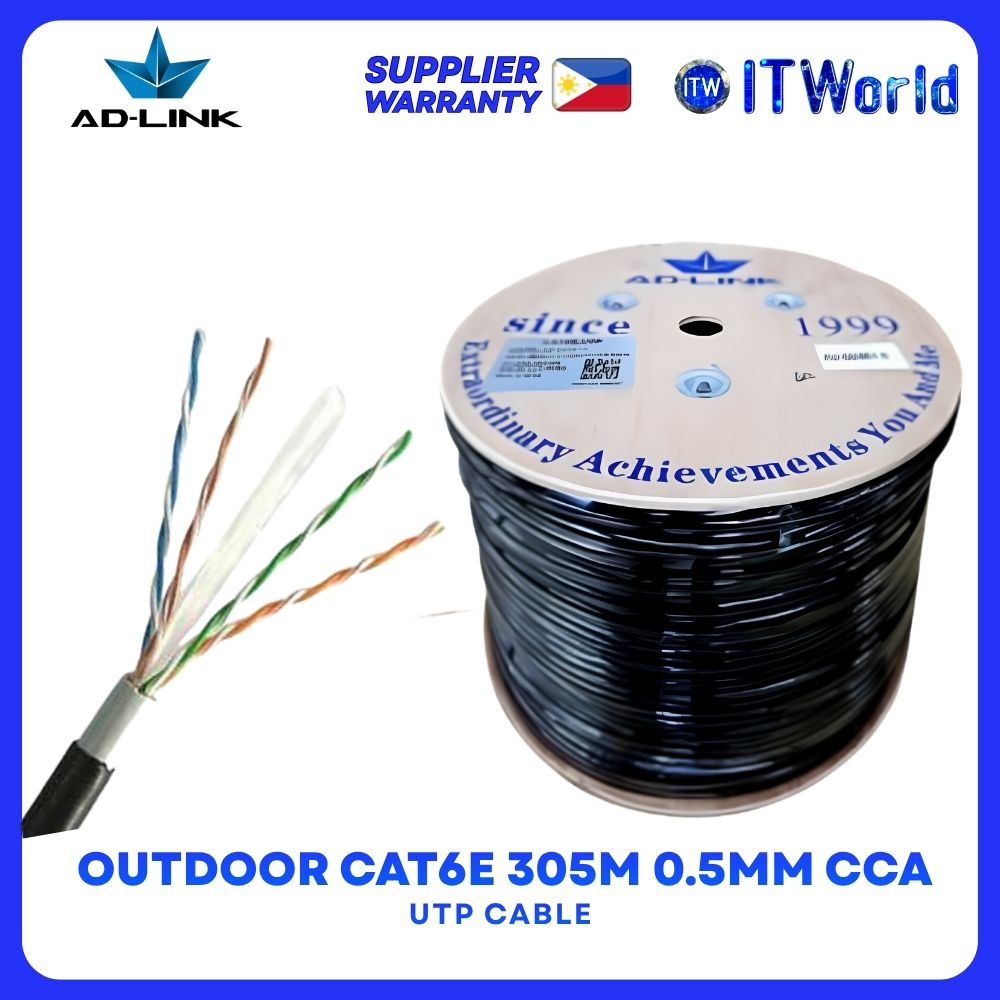

AD-Link Outdoor Cat6e UTP 305m 0.5mm Thickness CCA AD-OU601-C
✨ Ensure reliable outdoor network connectivity with the AD-Link AD-OU601-C Outdoor Cat6e UTP Cable. Designed for dependable data transmission, this 305-meter Cat6e cable features a 0.5mm CCA conductor, 23AWG wire size, and a PVC + HDPE jacket for outdoor use.

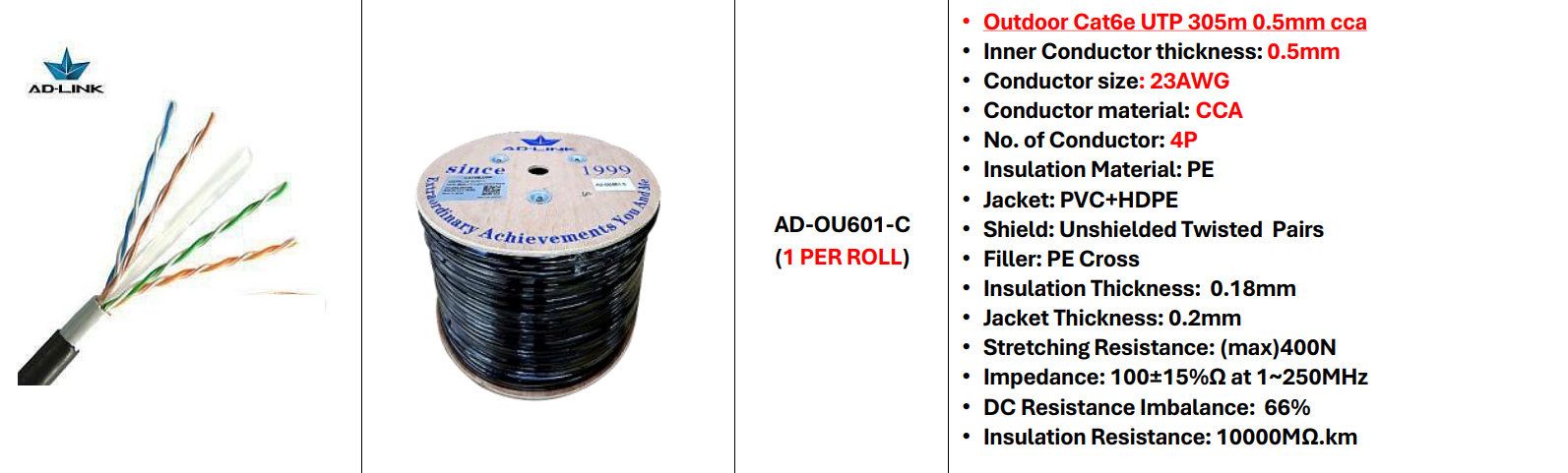

Product Highlights
📏 Cable Length: 305 meters
🌐 Category: Cat6e Outdoor UTP Cable
🔹 Conductor Thickness: 0.5mm
🧵 Wire Size: 23AWG
🛠️ Conductor Material: CCA (Copper Clad Aluminum)
🔌 Configuration: 4 Pairs (4P) Unshielded Twisted Pairs (UTP)
🧱 Insulation Material: PE
🛡️ Outer Jacket: PVC + HDPE
➕ Filler: PE Cross
📐 Insulation Thickness: 0.18mm
📦 Jacket Thickness: 0.2mm
💪 Maximum Stretching Resistance: 400N
📡 Impedance: 100±15Ω @ 1~250MHz
⚡ DC Resistance Imbalance: 66%
🔒 Insulation Resistance: 10000MΩ·km
