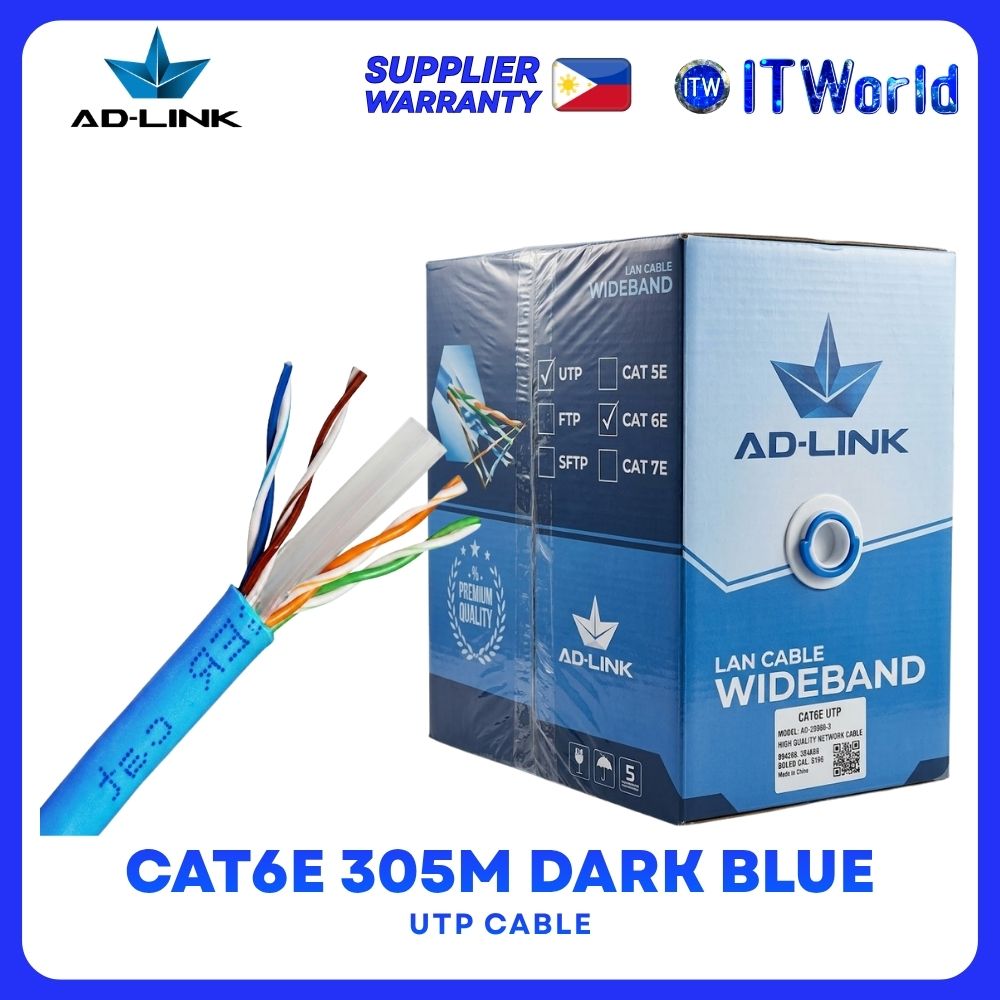

🌐 AD-Link UTP CAT6E Network Cable – 305 Meters

Reliable and cost-effective networking solution designed for structured cabling installations in homes, offices, schools, and commercial environments.

🔹 Brand: AD-Link

🔹 Model: AD-IN602-C

🔹 Type: UTP CAT6E LAN Cable

🔹 Length: 305m Box Roll

🔹 Color: Dark Blue

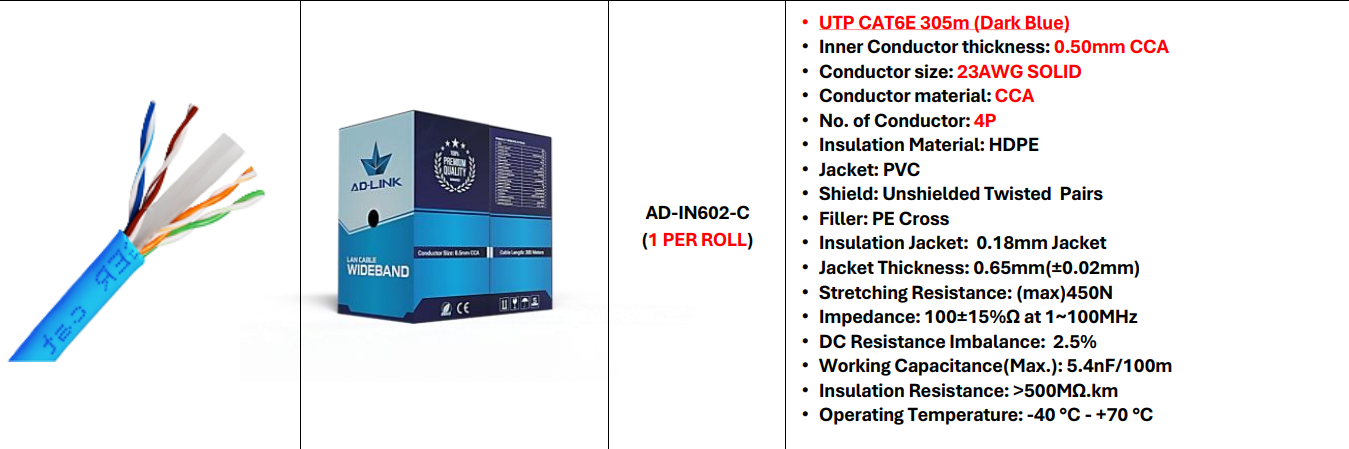

📌 Key Features & Specifications

✅ CAT6E UTP Network Cable

✅ 305-Meter Continuous Cable Roll

✅ 23AWG Solid Conductor Design

✅ 0.50mm CCA (Copper Clad Aluminum) Inner Conductor

✅ 4-Pair (4P) Twisted Pair Configuration

✅ HDPE Insulation Material

✅ Durable PVC Outer Jacket

✅ Unshielded Twisted Pair (UTP) Construction

✅ PE Cross Filler for Cable Stability

✅ 0.18mm Insulation Jacket

✅ 0.65mm (±0.02mm) Jacket Thickness

✅ Maximum Stretching Resistance: 450N

✅ Impedance: 100±15Ω @ 1~100MHz

✅ DC Resistance Imbalance: 2.5%

✅ Working Capacitance (Max.): 5.4nF/100m

✅ Insulation Resistance: >500MΩ·km

✅ Operating Temperature: -40°C to +70°C

💼 Ideal For

🏢 Office Network Installations

🏠 Home Networking Projects

🏫 Educational Institutions

🖥️ Structured Cabling Systems

📡 Data and Communication Networks
