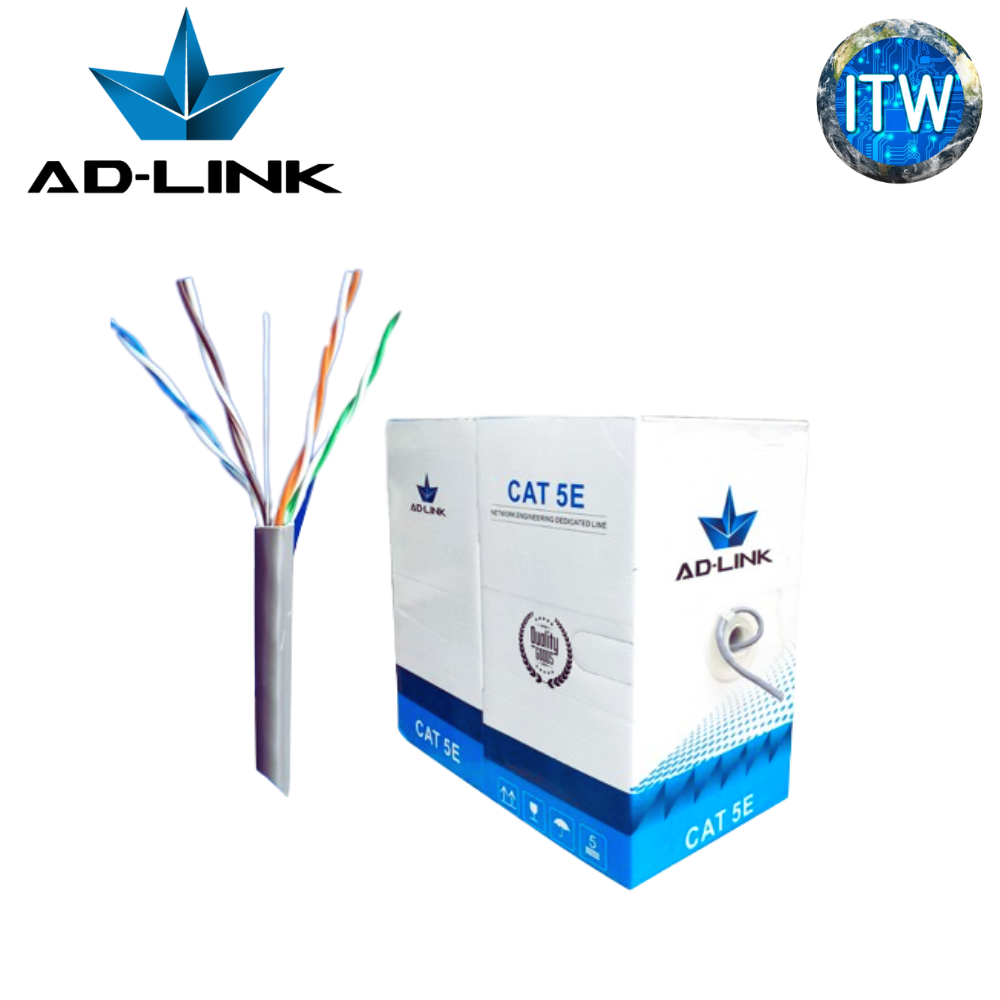

Product Name: ITW | AD-Link UTP Cat5E 305 Meter Cable Grey
■ 4 Pairs Unshielded Twisted Pair (UTP) Cable
■ Conductor Metal: Solid Bare Copper
■ Color Code: Grey
■ Conductor Diameter: 0.5mm Nominal, 24 AWG
■ Insulation Diameter: 0.860 Nominal, Insulation Material: HD-PE
■ Jacket Material: PVC UL94V-0
■ Cable Diameter: 5.0mm nominal
■ D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by TIA/EIA568C.2 and IEC 60603-7-4 standards.
■ As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
Cat5E UTP cable
■ The Category 5E cable, an enhanced version of Category 5, adheres to more stringent standards specified by TIA/EIA-568C.2 and IEC 60603-7-4. These cables are made using 24 gauge (AWG) copper wires with about three twists per inch enabling them to transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 100 MHz. They are suitable for 10BASE-T, 100BASETX Fast Ethernet and 1000BASE-T Gigabit Ethernet.
Certification
■ TIA / EIA-568C.2 standards by ETL
■ CUL listed
■ RoHs
