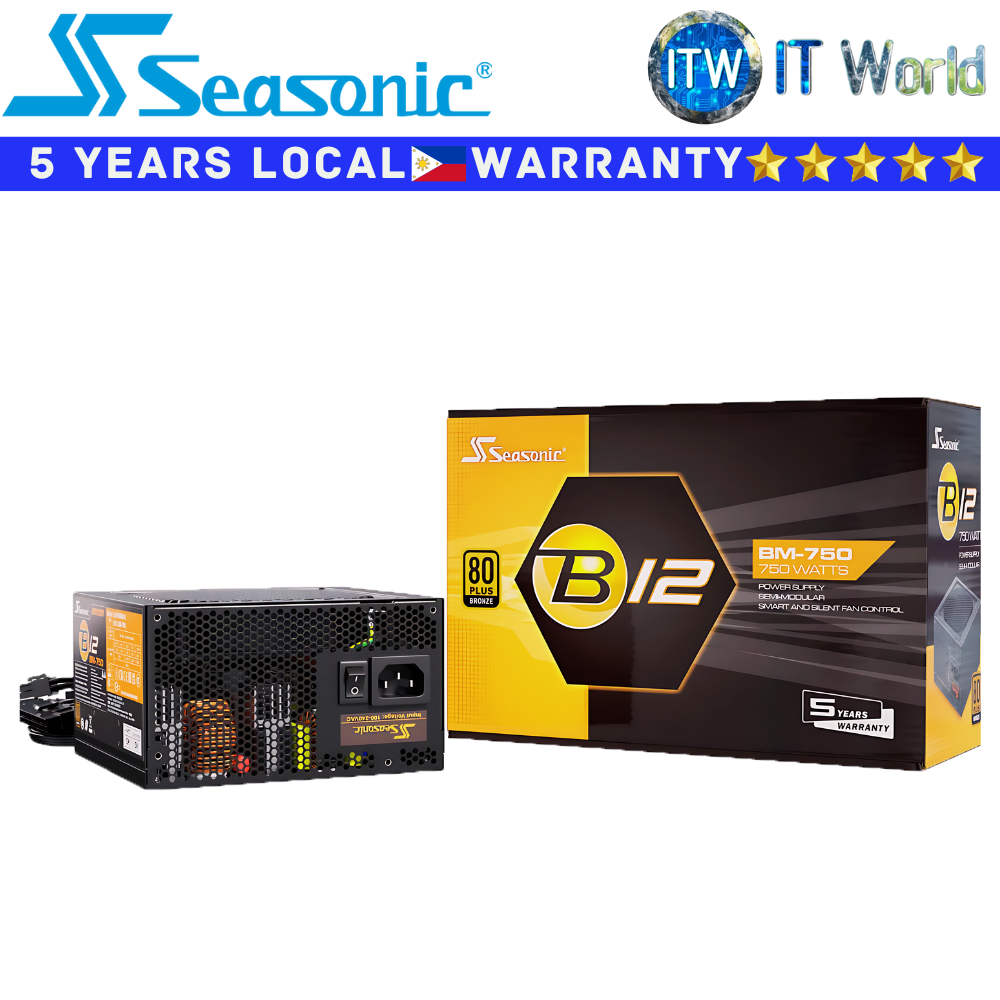

Product Name: Itw | Seasonic PSU 750W Power Suppy Unit BM Series B12 80+ Bronze ATX 12V Semi-Modular
B12 BM SERIES
> The B12 BM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic B12 BM achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the B12 BM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the B12 BM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
Specification
* 80PLUS®: Bronze
* Cybenetics Efficiency Level: TBA
* Cybenetics Noise Level: TBA
* Form Factor: ATX/EPS
* Dimensions: 140 × 150 × 86 mm
* Fan Information
> Fan Size: 120 mm
> Fan Control: Smart and Silent Fan Control
> Fan Bearing: Sleeve Bearing
> Life Expectancy: 25,000 hours at 40 °C, 15 % – 65 % RH
* Cable Information
> Modularity: Semi-Modular
> Cable type: Flat black cables
* Electrical Features
> Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
> MTBF @ 25 °C, excl. fan: 100,000 hours
> AC Input: Full Range
> Protection: OPP, OVP, OCP, SCP
* Safety and Environmental
> Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
> Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
