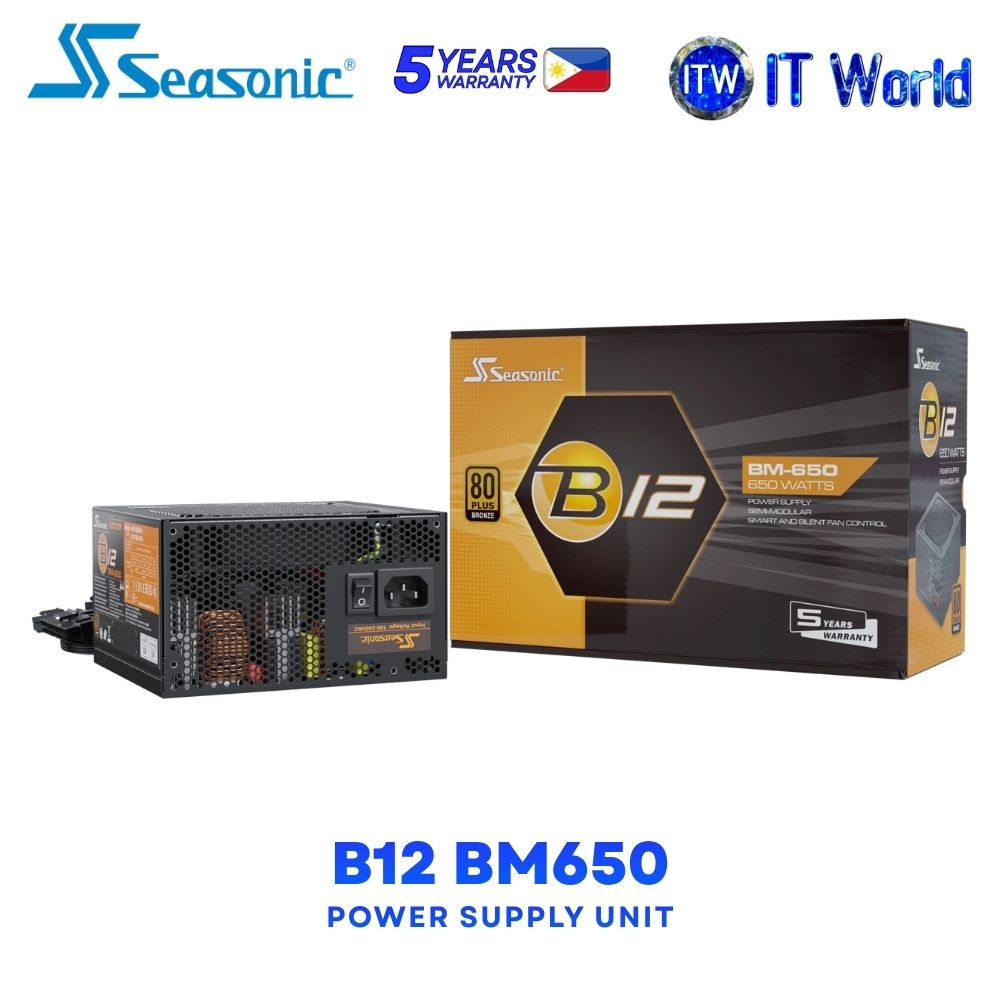

Seasonic B12 BM650 650W 80Plus Bronze Certified Semi-Modular Power Supply Unit A651BMAFH
Product Highlights & Specifications
🔌 Brand: Seasonic
📦 Model: B12 BM650 / A651BMAFH
🖥️ Product Type: 650W 80 PLUS Bronze Certified Semi-Modular Power Supply Unit
⚙️ Form Factor: ATX/EPS
🏅 Efficiency: 80 PLUS® Bronze — at least 82%, 85%, and 82% efficiency at 20%, 50%, and 100% operating loads
🔋 Total Continuous Power: 650W
⚡ +12V Output: 54A / 648W
🔌 AC Input: 100V–240V, 50Hz–60Hz, 8–4A
🧩 Modularity: Semi-Modular
🖤 Cable Type: Flat Black Cables
🌬️ Fan: 120mm with Smart and Silent Fan Control (S2FC)
⚙️ Fan Bearing: Sleeve Bearing
🛡️ Protection: OPP, OVP, OCP, SCP
🌡️ Operating Temperature: 0–50°C
⏱️ MTBF @ 25°C, excluding fan: 100,000 hours
📐 Product Dimensions: 140 × 150 × 86 mm
🔧 Design: LLC resonant converter design
🌱 Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
🛡️ Safety & EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
