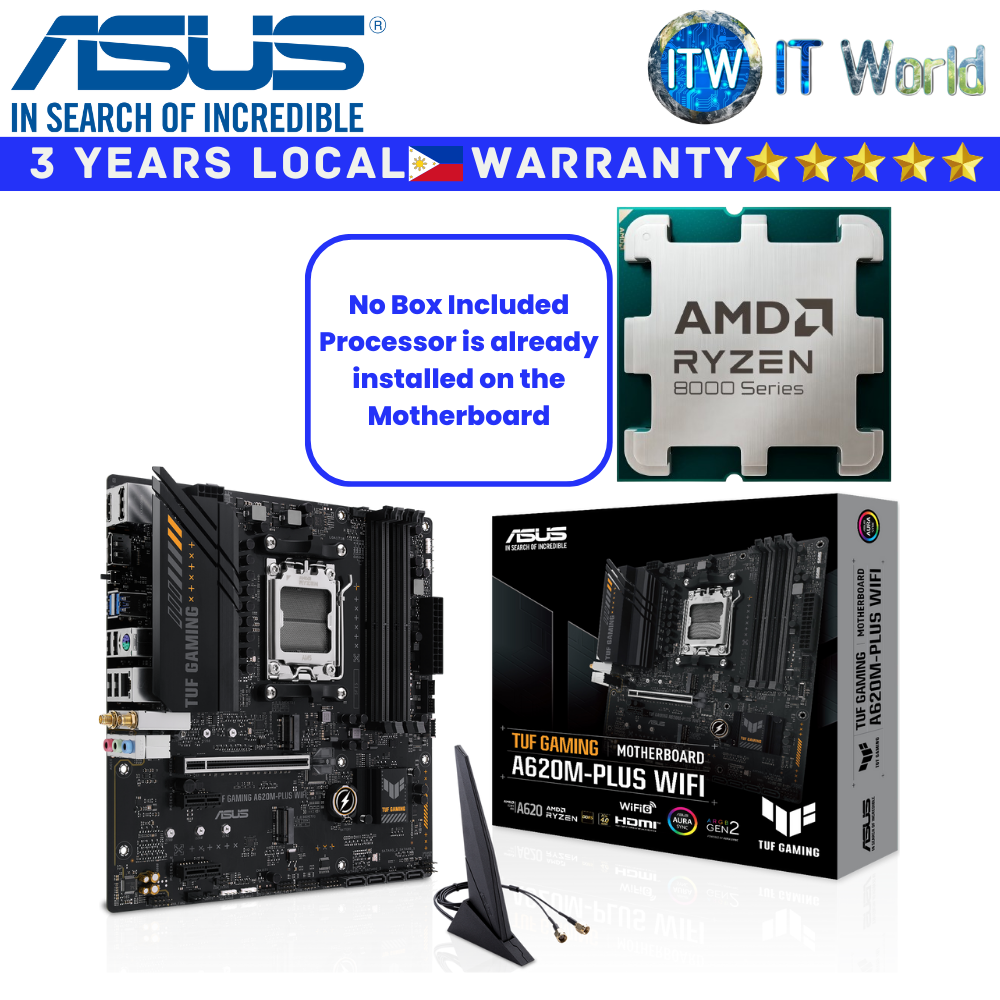

Product Name: Itw | ASUS Bundle Ryzen Motherboard AMD 5 8400F Tray Type with TUF Gaming A620M-Plus Wifi
*** AMD Ryzen 5 8400F 6-Cores 12-Threads Desktop Processor ***
General
> Name: AMD Ryzen™ 5 8400F
> Family: Ryzen
> Series: Ryzen 8000 Series
> Form Factor: Desktops
> AMD PRO Technologies: No
> Former Codename: Phoenix
> Architecture: Zen 4
> # of CPU Cores: 6
> Multithreading (SMT): Yes
> # of Threads: 12
> Max. Boost Clock: Up to 4.7 GHz
> Base Clock : 4.2 GHz
> L2 Cache: 6 MB
> L3 Cache: 16 MB
> Default TDP: 65W
> AMD Configurable TDP (cTDP): 45-65W
> Processor Technology for CPU Cores: TSMC 4nm FinFET
> CPU Compute Die (CCD) Size: 178mm²
> Package Die Count: 1
> Unlocked for Overclocking: Yes
> AMD EXPO™ Memory Overclocking Technology: Yes
> Precision Boost Overdrive: Yes
> Curve Optimizer Voltage Offsets: Yes
> AMD Ryzen™ Master Support: Yes
> CPU Socket: AM5
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
> Max. Operating Temperature (Tjmax): 95°C
> *OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
> Native USB 4 (40Gbps) Ports: 2
> Native USB 3.2 Gen 2 (10Gbps) Ports: 2
> Native USB 2.0 (480Mbps) Ports: 1
> PCI Express® Version: PCIe® 4.0
> Native PCIe® Lanes (Total/Usable): 20 , 16
> NVMe Support: Boot , RAID0 , RAID1
> System Memory Type: DDR5
> Memory Channels: 2
> Max. Memory: 256 GB
> System Memory Subtype: UDIMM
> Max Memory Speed
- 2x1R DDR5-5200
- 2x2R DDR5-5200
- 4x1R DDR5-3600
- 4x2R DDR5-3600
*** ASUS TUF Gaming A620M-Plus Wifi microATX AM5 DDR5 Motherboard ***
CPU
> AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*
Chipset
> AMD A620 Chipset
Memory
> 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 2 x DisplayPort**
> 1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Storage
> AMD Ryzen™ 7000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
> AMD A620 Chipset
- 2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types. To ensure compatibility of the device installed.
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
> AMD Ryzen™ 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
> AMD A620 Chipset
- 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
USB
> Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
> 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 2 x DisplayPort
> 1 x HDMI™ port
> 1 x Wi-Fi Module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
> 1 x PS/2 Keyboard/Mouse combo port
Form Factor
> Micro-ATX; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
