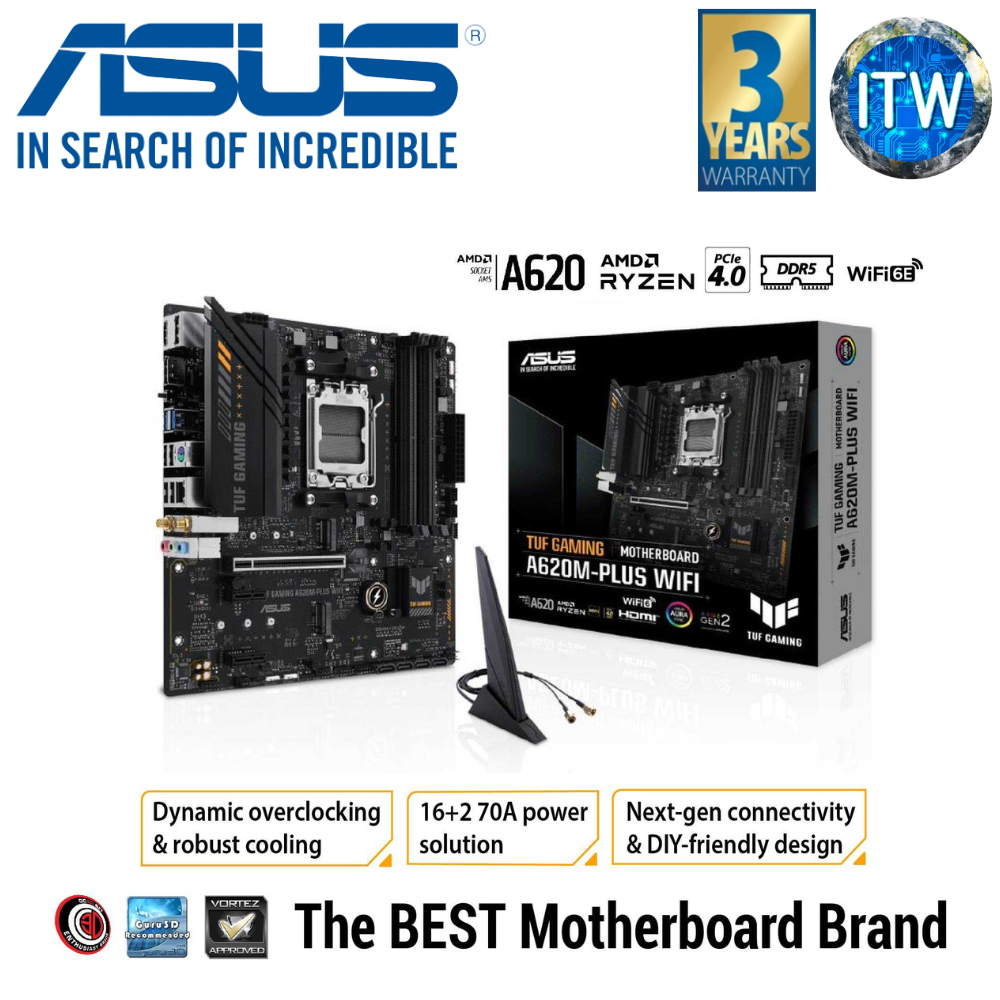

Product Name: ITW | ASUS TUF Gaming A620M-Plus WiFi microATX AM5 DDR5 Motherboard
■ AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
■ Ultrafast Connectivity: PCIe 4.0 support, dual M.2 slots, USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C®
■ ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
■ Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
■ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
■ Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specification
Model
✎ TUF GAMING A620M-PLUS WIFI
CPU
✎ AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset
✎ AMD A620 Chipset
Memory
✎ 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
✎ Dual Channel Memory Architecture
✎ Supports AMD Extended Profiles for Overclocking (EXPO™)
✎ OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
✎ 2 x DisplayPort**
✎ 1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
✎ AMD Ryzen™ 7000 Series Desktop Processors*
■ 1 x PCIe 4.0 x16 slot
✎ AMD A620 Chipset
■ 2 x PCIe 3.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
✎ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
✎ AMD Ryzen™ 7000 Series Desktop Processors
■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
✎ AMD A620 Chipset
■ 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
✎ 1 x Realtek 2.5Gb Ethernet
✎ TUF LANGuard
Wireless & Bluetooth
✎ Wi-Fi 6
✎ 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
✎ Supports 2.4/5GHz frequency band
✎ Bluetooth® v5.3
USB
✎ Rear USB (Total 6 ports)
■ 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
■ 4 x USB 2.0 ports (4 x Type-A)
✎ Front USB (Total 7 ports)
■ 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
■ 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
■ 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
✎ Realtek 7.1 Surround Sound High Definition Audio CODEC*
■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
■ Supports up to 24-Bit/192 kHz playback
✎ Audio Features
■ Audio Shielding
■ Premium audio capacitors
■ Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
✎ 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
✎ 4 x USB 2.0 ports (4 x Type-A)
✎ 2 x DisplayPort
✎ 1 x HDMI™ port
✎ 1 x Wi-Fi Module
✎ 1 x Realtek 2.5Gb Ethernet port
✎ 3 x Audio jacks
✎ 1 x BIOS FlashBack™ button
✎ 1 x PS/2 Keyboard/Mouse combo port
Operating System
✎ Windows® 11, Windows® 10 64-bit
Form Factor
✎ Micro-ATX / 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
