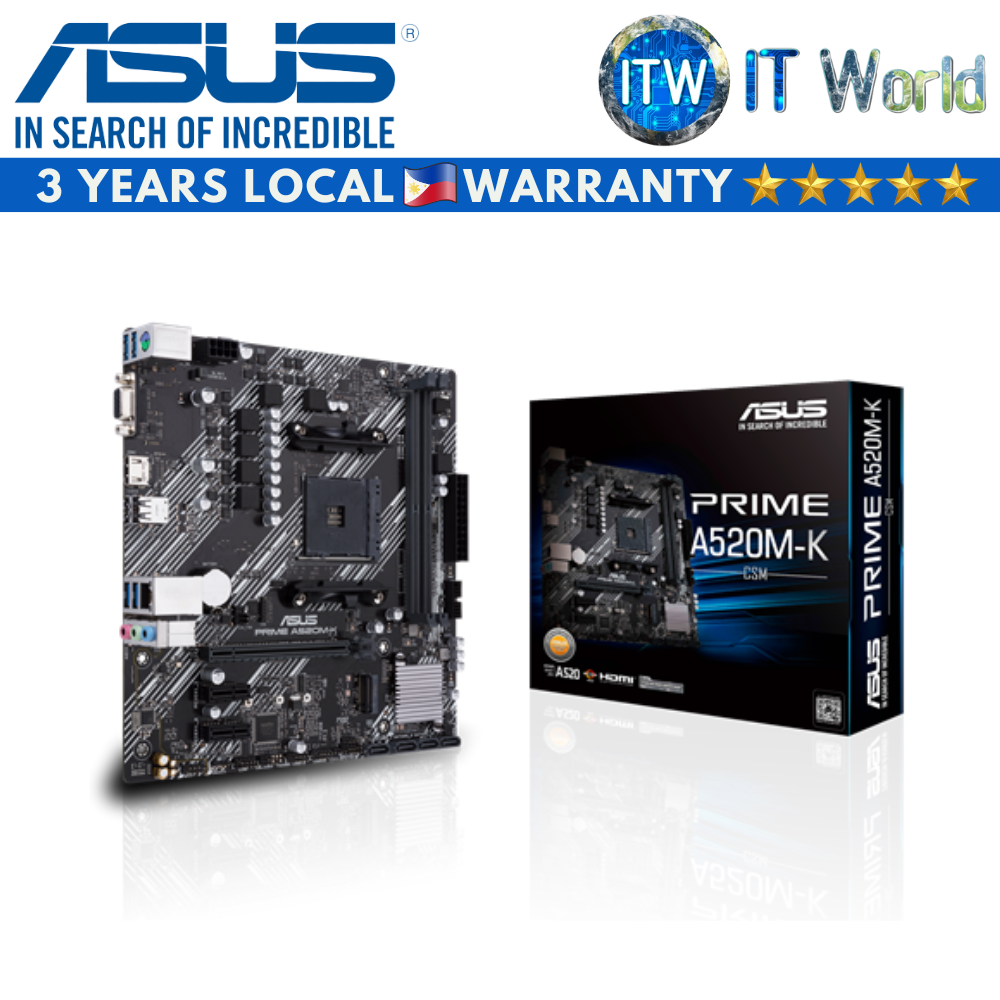

Product Name: ITW | ASUS Prime A520M-K micro-ATX AM4 DDR4 Motherboard
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
■ AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
■ Comprehensive cooling: PCH heatsink and Fan Xpert
■ Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
■ 5X Protection III: Multiple hardware safeguards for all-around system protection
Specification
Model
✎ PRIME A520M-K
CPU
✎ AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *
Chipset
✎ AMD A520
Memory
✎ 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
✎ Dual Channel Memory Architecture
✎ ECC Memory (ECC mode) support varies by CPU.
Graphic
✎ 1 x D-Sub
✎ 1 x HDMI 2.1(4K@60HZ)
Expansion Slots
✎ AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
■ 1 x PCIe 3.0 x16 (x16 mode)
✎ AMD A520 Chipset
■ 2 x PCIe 3.0 x1
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
✎ AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
■ 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
✎ AMD A520 Chipset
■ 4 x SATA 6Gb/s port(s),
■ Support Raid 0, 1, 10
LAN
✎ Realtek RTL8111H 1Gb Ethernet
✎ ASUS LANGuard
Audio
✎ Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
■ Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
✎ Audio Feature
■ Audio Shielding
■ Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
✎ Rear USB Port ( Total 6 )
■ 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
■ 2 x USB 2.0 port(s)(2 x Type-A)
✎ Front USB Port ( Total 6 )
■ 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
■ 4 x USB 2.0 port(s)(4 x Type-A)
Back I/O Ports
✎ 1 x PS/2 keyboard/mouse combo port(s)
✎ 1 x D-Sub
✎ 1 x HDMI
✎ 1 x LAN (RJ45) port(s)
✎ 4 x USB 3.2 Gen 1 (blue) Type-A
✎ 2 x USB 2.0
✎ 3 x Audio jack(s)
Internal I/O Ports
✎ 1 x CPU Fan connector(s)
✎ 1 x Chassis Fan connector(s)
✎ 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
✎ 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
✎ 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
✎ 1 x SPI TPM header
✎ 4 x SATA 6Gb/s connector(s)
✎ 1 x S/PDIF out header(s)
✎ 1 x 24-pin EATX Power connector(s)
✎ 1 x 8-pin EATX 12V Power connectors
✎ 1 x Front panel audio connector(s) (AAFP)
✎ 1 x Clear CMOS jumper(s)
✎ 1 x System panel connector
✎ 1 x COM port header
✎ 1 x Speaker connector
Form Factor
✎ mATX / 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
