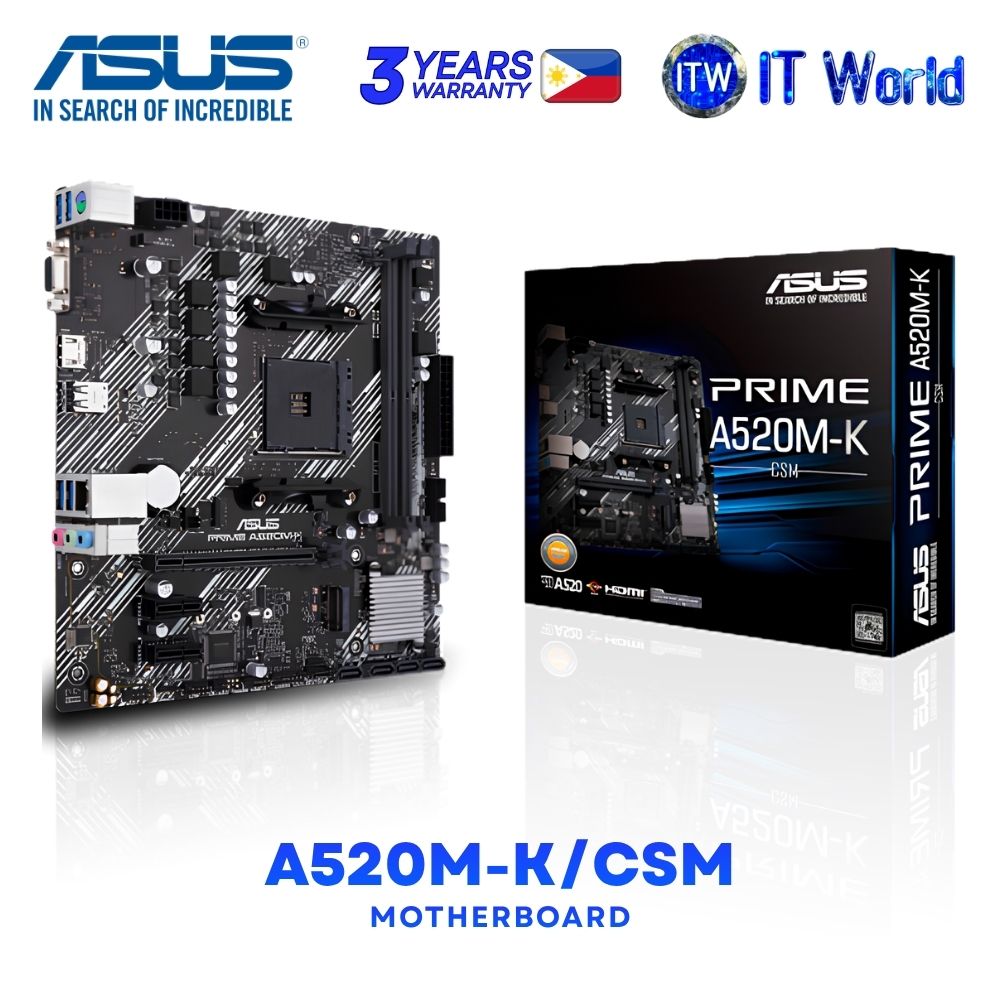

ASUS Prime A520M-K/CSM micro-ATX AM4 DDR4 AMD A520 Chipset Motherboard
⚙️ Build your PC with the ASUS Prime A520M-K/CSM, a micro-ATX motherboard powered by the AMD A520 chipset and designed for compatible AMD Ryzen™ desktop processors. Featuring DDR4 memory support, M.2 storage connectivity, Gigabit Ethernet, and versatile USB ports, it provides essential connectivity and practical features for your desktop PC build.
Key Features & Specifications
⚙️ Motherboard Model: ASUS PRIME A520M-K/CSM
⚙️ Chipset: AMD A520
🔌 CPU Socket: AMD AM4 socket, supporting compatible AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series desktop processors.
🧠 Memory Support: 2 × DDR4 DIMM slots, up to 64GB total memory, dual-channel architecture, and supported memory speeds up to 4866MHz (O.C.), depending on configuration.
Expansion Slots
🎮 1 × PCIe 3.0 x16 slot
🎮 2 × PCIe 3.0 x1 slots
Storage Connectivity
💾 1 × M.2 Socket 3 slot supporting 2242, 2260, and 2280 devices
💾 M.2 support for PCIe 3.0 x4 and SATA modes
💾 4 × SATA 6Gb/s ports
💾 RAID 0, 1, and 10 support
Display Outputs
🖥️ 1 × HDMI 2.1, supporting up to 4K at 60Hz
🖥️ 1 × D-Sub
🌐 Networking: Realtek RTL8111H Gigabit Ethernet (1Gb LAN) with ASUS LANGuard.
🔊 Audio: Realtek ALC887/897 7.1-channel High Definition Audio CODEC, with audio shielding and dedicated audio PCB layers.
USB Connectivity
🔗 Rear: 4 × USB 3.2 Gen 1 Type-A and 2 × USB 2.0 Type-A
🔗 Front: Supports 2 × USB 3.2 Gen 1 Type-A and 4 × USB 2.0 Type-A through internal headers
❄️ Cooling Features: PCH aluminum heatsink design and Fan Xpert for fan management.
🛡️ ASUS 5X Protection III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O.
🧰 Software & BIOS: ASUS Armoury Crate, AI Suite 3, TurboV EVO, EPU, Fan Xpert, ASUS EZ Flash 3, CrashFree BIOS 3, and UEFI BIOS EZ Mode.
🔗 Operating System Support: Windows® 10 64-bit.
📐 Form Factor: Micro-ATX (mATX), measuring 22.6 × 22.1 cm (8.9 × 8.7 inches).
Included Accessories
📦 User manual
📦 ACC Express Activation Key Card
📦 I/O Shield
📦 2 × SATA 6Gb/s cables
📦 Supporting DVD
📦 M.2 SSD screw package
Why Choose the ASUS Prime A520M-K/CSM?
✅ Flexible PC Building: AM4 socket and DDR4 memory support for compatible AMD Ryzen™ processors.
✅ Convenient Storage Options: M.2 and four SATA 6Gb/s ports for supported storage devices.
✅ Essential Connectivity: Gigabit Ethernet, HDMI, D-Sub, and USB 3.2 Gen 1 Type-A ports.
✅ Reliable Protection Features: ASUS 5X Protection III provides multiple hardware safeguards.
✅ Compact Design: The micro-ATX form factor suits compatible compact desktop PC builds.
