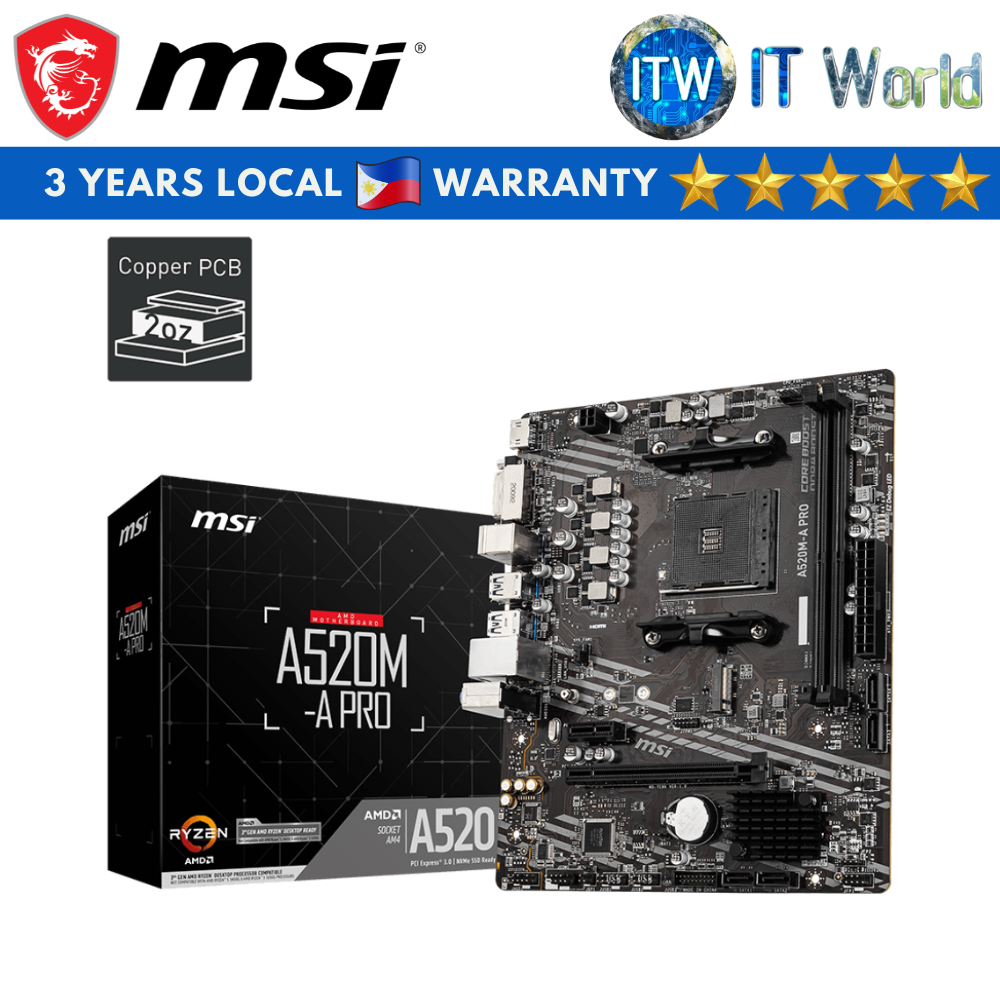

Product Name: ITW | MSI A520M-A Pro micro-ATX AM4 DDR4 Motherboard
A520M-A PRO
■ Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
■ Supports DDR4 Memory, up to 4600(OC) MHz
■ Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
■ Core Boost: With premium layout and digital power design to support more cores and provide better performance.
■ DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
■ 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
■ Audio Boost: Reward your ears with studio grade sound quality
■ Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Specification
CPU
✎ Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
CHIPSET
✎ AMD A520 Chipset
MEMORY
✎ 2x DDR4 memory slots, support up to 64GB
■ Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
■ Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
> 1DPC 1R max speed 4600 MHz
> 1DPC 2R max speed 3866 MHz
✎ Dual channel memory architecture
✎ Supports non-ECC UDIMM memory
✎ Supports ECC UDIMM memory (non-ECC mode)
✎ Supports un-buffered memory
EXPANSION SLOT
✎ 1x PCIe 3.0 x1 slot
✎ 1x PCIe x16 slot
ONBOARD GRAPHICS
✎ 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
✎ 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
✎ Maximum shared memory of 16 GB
Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE
✎ AMD A520 Chipset
■ 4x SATA 6Gb/s ports
■ 1x M.2 slot (Key M) (from AMD Processor)
> Supports PCIe 3.0
> Supports SATA 6Gb/s
> Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
RAID
✎ Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
✎ Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
✎ AMD A520 Chipset
■ 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
■ 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
✎ AMD Processor
■ 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
✎ Realtek® ALC892/ALC897 Codec
■ 7.1-Channel High Definition Audio
LAN
✎ 1x Realtek® RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
✎ 1x 24-pin ATX main power connector
✎ 1x 4-pin ATX 12V power connector
✎ 4x SATA 6Gb/s connectors
✎ 1x M.2 slots (M-Key)
✎ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
✎ 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
✎ 1x 4-pin CPU fan connector
✎ 1x 4-pin system fan connectors
✎ 1x Front panel audio connector
✎ 2x System panel connectors
✎ 1x Chassis Intrusion connector
✎ 1xTPM module connector
✎ 1x Clear CMOS jumper
BACK PANEL PORTS
✎ LAN port
✎ HDMI™
✎ DVI-D
✎ Keyboard / Mouse
✎ USB 3.2 Gen 1 5Gbps Type-A
✎ USB 3.2 Gen 1 5Gbps Type-A
✎ USB 2.0 Ports
✎ Audio Connectors
DIMENSIONS
✎ Micro-ATX Form Factor
✎ 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
