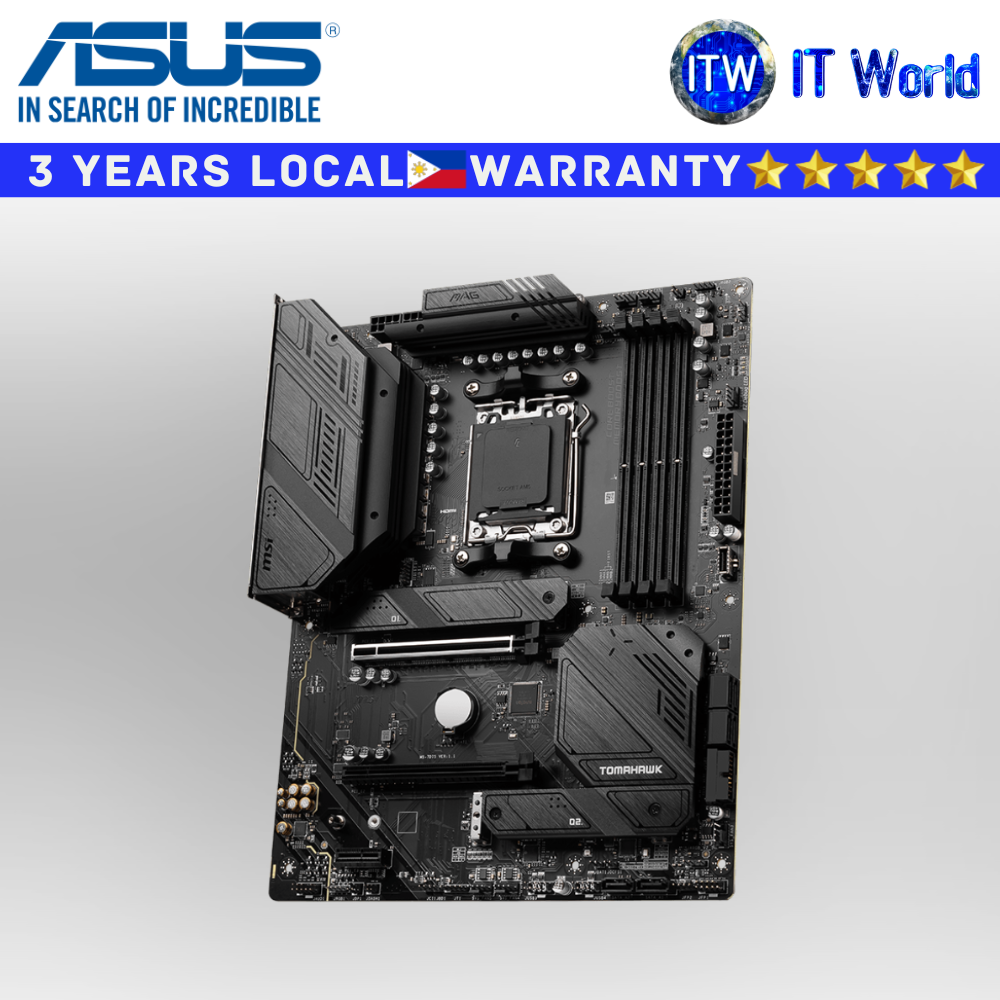

Itw | ASUS Motherboard MAG B650 Tomahawk Wi-Fi ATX PWR 4x DDR5 (7 7700X with B650 Tomahawk Wi-Fi)

Product name:

Itw | ASUS Motherboard MAG B650 Tomahawk WiFi ATX_PWR 4x DDR5 (7 7700X with B650 Tomahawk Wifi)

Chipset: AMD B650

CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Socket: AM5

Memory: 4x DDR5, Maximum Capacity 256GB

Memory Support: DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Max Overclocking Frequency:

1DPC 1R: Up to 7600+ MHz

1DPC 2R: Up to 6400+ MHz

2DPC 1R: Up to 6400+ MHz

2DPC 2R: Up to 5400+ MHz

Memory Features:

Dual-Channel Mode Support

Non-ECC, Un-buffered Memory Support

AMD EXPO Support

Onboard Graphics:

1x HDMI™ (HDMI 2.1 with HDR, max resolution 4K 60Hz*)

1x DisplayPort (DP 1.4, max resolution 8K 60Hz*)

*Only available on processors with integrated graphics

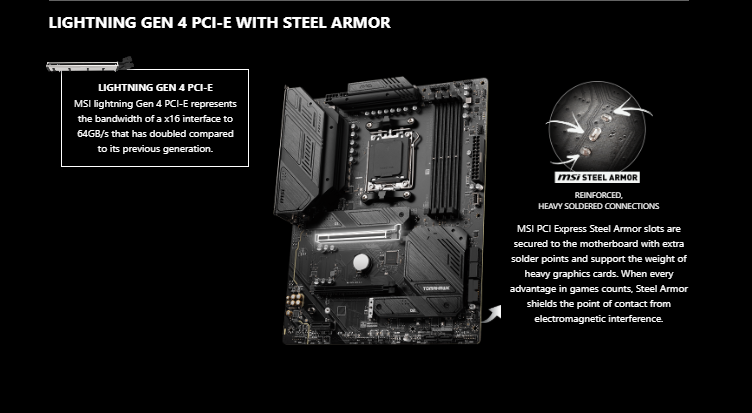

Expansion Slots:

2x PCI-E x16

Ryzen™ 9000 / 7000: Supports x16/x2

Ryzen™ 8700 / 8600 / 8400: Supports x8/x2

Ryzen™ 8500 / 8300: Supports x4/x2

1x PCI-E x1

PCI_E1 (Gen 4.0 x16, from CPU)

PCI_E2 (Gen 4.0 x2, from Chipset)

PCI_E3 (Gen 3.0 x1, from Chipset)

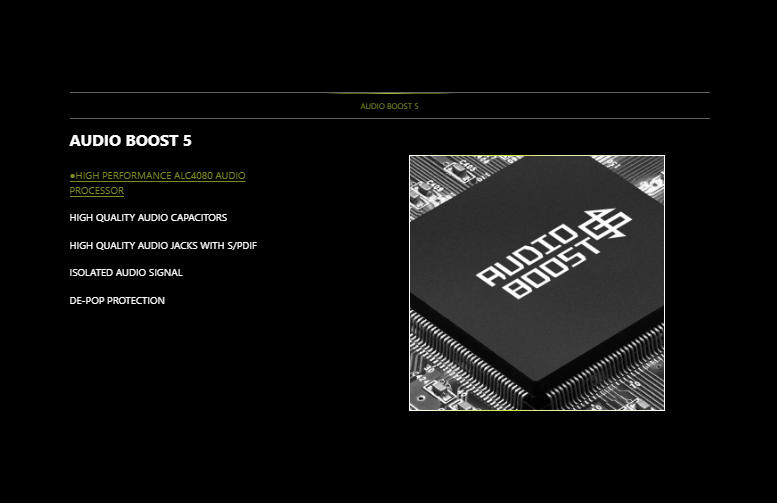

Audio: Realtek® ALC4080 Codec

7.1-Channel High Performance

S/PDIF Output Support

Up to 32-Bit/384 kHz Playback on Front Panel

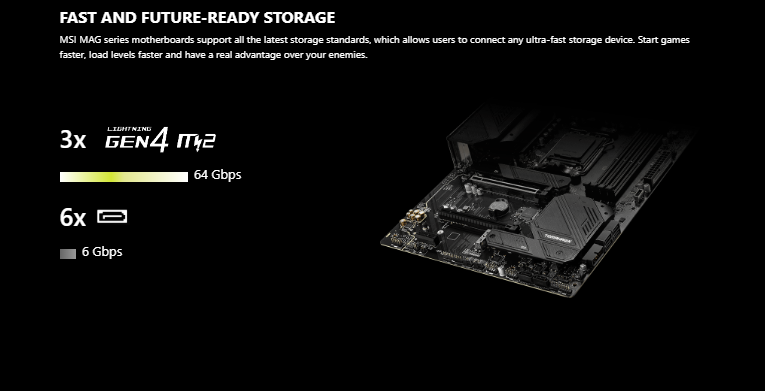

Storage:

3x M.2

M.2_1: PCIe 4.0 x4, supports 22110/2280 (From CPU)

M.2_2: PCIe 4.0 x4, supports 2280/2260 (From CPU)*

M.2_3: PCIe 4.0 x4, supports 2280/2260 (From Chipset)**

6x SATA 6G

M.2_2 unavailable with Ryzen™ 8500 / 8300

** M.2_3 & PCI_E2 share bandwidth

RAID Support:

SATA: RAID 0, 1, 10*

M.2 NVMe: RAID 0, 1

SATA_A1_A2 do not support RAID

USB Ports:

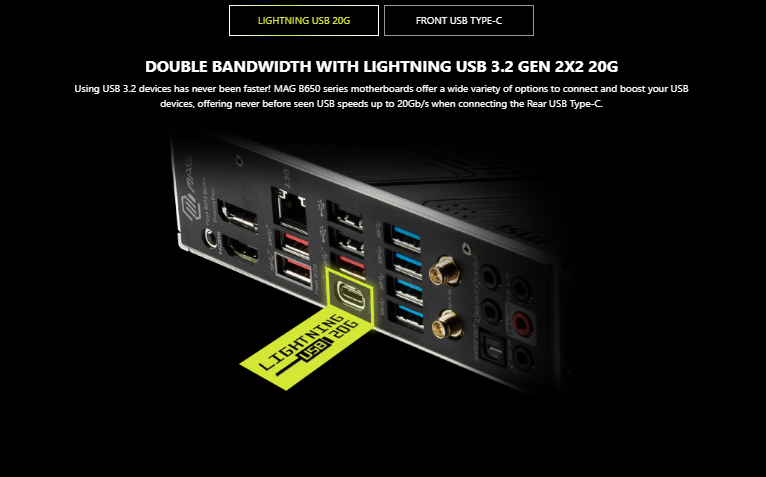

Rear: 2x USB 2.0, 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 20Gbps Type C

Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C

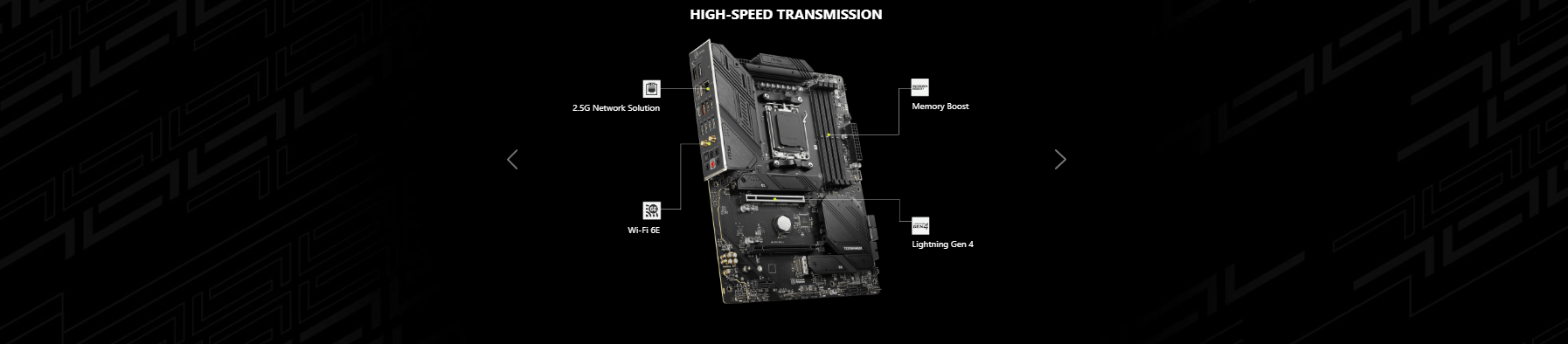

LAN: Realtek® RTL8125BG 2.5Gbps

Internal I/O:

1x ATX_PWR

2x CPU_PWR

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x JDASH (Tuning Controller Connector)

2x Addressable V2 RGB LED (JARGB_V2)

2x RGB LED (JRGB)

1x TPM Header (TPM 2.0 Support)

4x USB 2.0 Ports

2x USB 5Gbps Type A Ports

1x USB 10Gbps Type C Port

Wireless LAN & Bluetooth:

Wi-Fi 6E (Pre-installed in M.2 Key-E)

MU-MIMO TX/RX Support

Bandwidth: 20/40/80/160MHz in 2.4GHz / 5GHz / 6GHz*

Supports 802.11 a/b/g/n/ac/ax

Bluetooth® 5.3**

*Wi-Fi 6E 6GHz availability depends on country regulations

**Bluetooth 5.3 available in Windows 10 (21H1) & Windows 11

LED Feature: 4x EZ Debug LED

***
