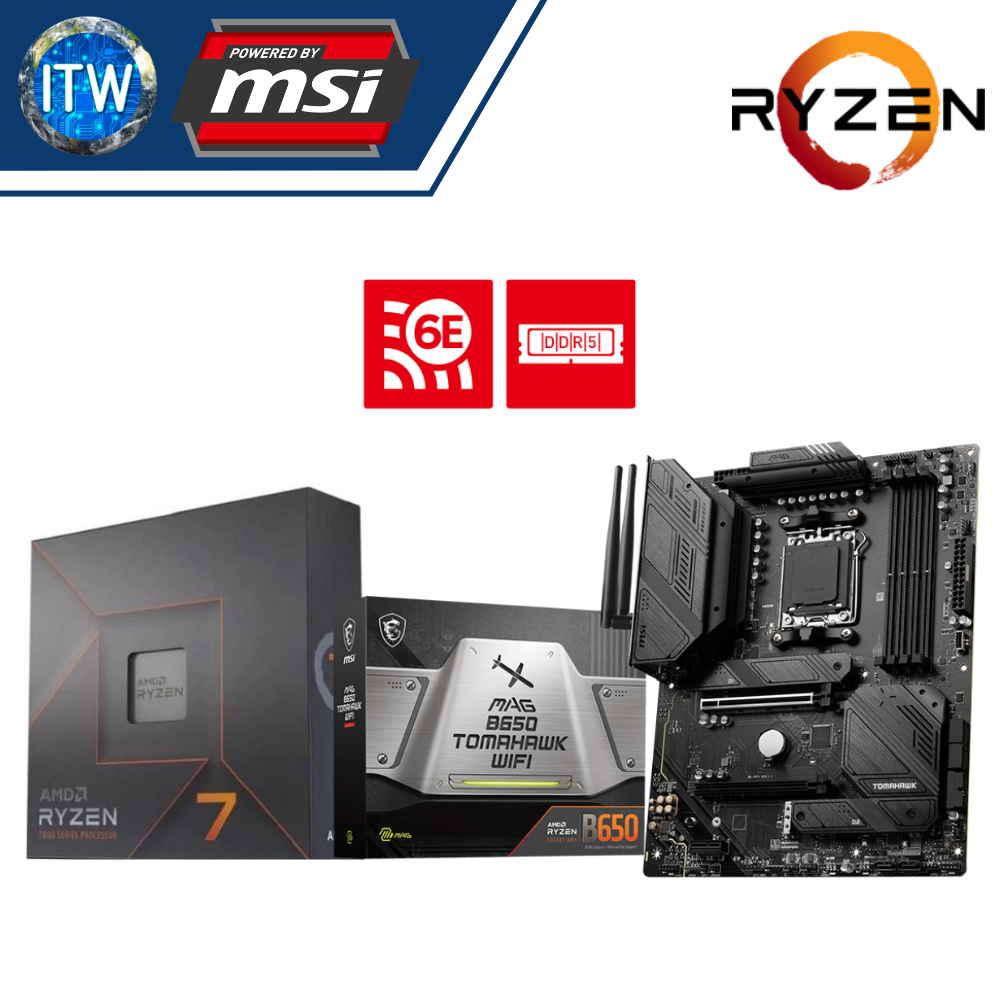

Product Name: AMD Ryzen 7 7700X Desktop Processor w/o Cooler with MSI MAG B650 Tomahawk WiFi Motherboard Bundle
■ ■ AMD Ryzen 7 7700X 8-Core, 16-Thread Desktop Processor without Cooler ■ ■
Specification
General
✎ Platform: Desktop
✎ Product Family: AMD Ryzen™ Processors
✎ Product Line: AMD Ryzen™ 7 Processors
✎ # of CPU Cores: 8
✎ # of Threads: 16
✎ Max. Boost Clock: Up to 5.4GHz
✎ Base Clock: 4.5GHz
✎ L1 Cache: 512KB
✎ L2 Cache: 8MB
✎ L3 Cache: 32MB
✎ Default TDP: 105W
✎ Unlocked for Overclocking: Yes
✎ CPU Socket: AM5
✎ Thermal Solution (PIB): Not included
✎ Max. Operating Temperature (Tjmax): 95°C
✎ Launch Date: 9/27/2022
✎ OS Support
■ Windows 11 - 64-Bit Edition
■ Windows 10 - 64-Bit Edition
■ RHEL x86 64-Bit
■ Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
✎ System Memory Type: DDR5
✎ Memory Channels: 2
✎ Max Memory Speed
■ 2x1R DDR5-5200
■ 2x2R DDR5-5200
■ 4x1R DDR5-3600
■ 4x2R DDR5-3600
Graphics Capabilities
✎ Graphics Model: AMD Radeon™ Graphics
✎ Graphics Core Count: 2
✎ Graphics Frequency: 2200 MHz
✎ GPU Base: 400 MHz
Product IDs
✎ Product ID Boxed: 100-100000591WOF
✎ Product ID Tray: 100-000000591
Key Features
✎ Supported Technologies
■ AMD EXPO™ Technology
■ AMD Ryzen™ Technologies
■ ■ MSI MAG B650 Tomahawk WiFi AM5 ATX DDR5 Mystic Light RGB Motherboard ■ ■
Specification
CHIPSET
✎ AMD B650
CPU SUPPORT
✎ Supports AMD Ryzen™ 7000 Series Desktop Processors
✎ Socket AM5
MEMORY
✎ 4x DDR5, Maximum Memory Capacity 128GB
✎ Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
ONBOARD GRAPHICS
✎ 1x HDMI™
✎ 1x DisplayPort
✎ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
✎ Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
✎ 2x PCI-E x16 slot
✎ Support x16/ x4
✎ 1x PCI-E x1 slot
✎ PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
✎ PCI_E2 PCIe 4.0 supports up to x2 (From Chipset)
✎ PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
✎ 3x M.2 slot
✎ M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ 6x SATA 6G port
RAID
✎ Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
✎ Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB
✎ 2x USB 2.0 (Rear)
✎ 4x USB 2.0 (Front)
✎ 4x USB 3.2 Gen1 Type A (Rear)
✎ 2x USB 3.2 Gen1 Type A (Front)
✎ 3x USB 3.2 Gen2 Type A (Rear)
✎ 1x USB 3.2 Gen2 Type C (Front)
✎ 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
✎ Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH
✎ AMD Wi-Fi 6E
✎ The Wireless module is pre-installed in the M.2 (Key-E) slot
✎ Supports MU-MIMO TX/RX
✎ Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
✎ Supports 802.11 a/ b/ g/ n/ ac/ ax
✎ Supports Bluetooth® 5.2**
"* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."
AUDIO
✎ Realtek® ALC4080 Codec
✎ 7.1-Channel High Performance Audio
✎ Supports S/PDIF output
✎ Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
✎ 1x Power Connector(ATX_PWR)
✎ 2x Power Connector(CPU_PWR)
✎ 1x CPU Fan
✎ 1x Pump Fan
✎ 6x System Fan
✎ 2x Front Panel (JFP)
✎ 1x Chassis Intrusion (JCI)
✎ 1x Front Audio (JAUD)
✎ 1x Tuning Controller connector(JDASH)
✎ 2x Addressable V2 RGB LED connector (JARGB_V2)
✎ 2x RGB LED connector(JRGB)
✎ 1x TPM pin header(Support TPM 2.0)
✎ 4x USB 2.0
✎ 2x USB 3.2 Gen1 Type A
✎ 1x USB 3.2 Gen2 Type C
LED FEATURE
✎ 4x EZ Debug LED
BACK PANEL PORTS
✎ DisplayPort 1.4
✎ 2.5G LAN Port
✎ USB 2.0 Port
✎ USB 3.2 Gen 1 5Gbps Type-A
✎ Wi-Fi / Bluetooth Antenna
✎ HD Audio Connectors
✎ Flash BIOS Button
✎ HDMI™ 2.1 Port
✎ USB 3.2 Gen 2 10Gbps Type-A
✎ USB 3.2 Gen 2x2 20Gbps Type-C
✎ Optical S/PDIF OUT
OPERATING SYSTEM
✎ Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
✎ ATX / 243.84mmx304.8mm
