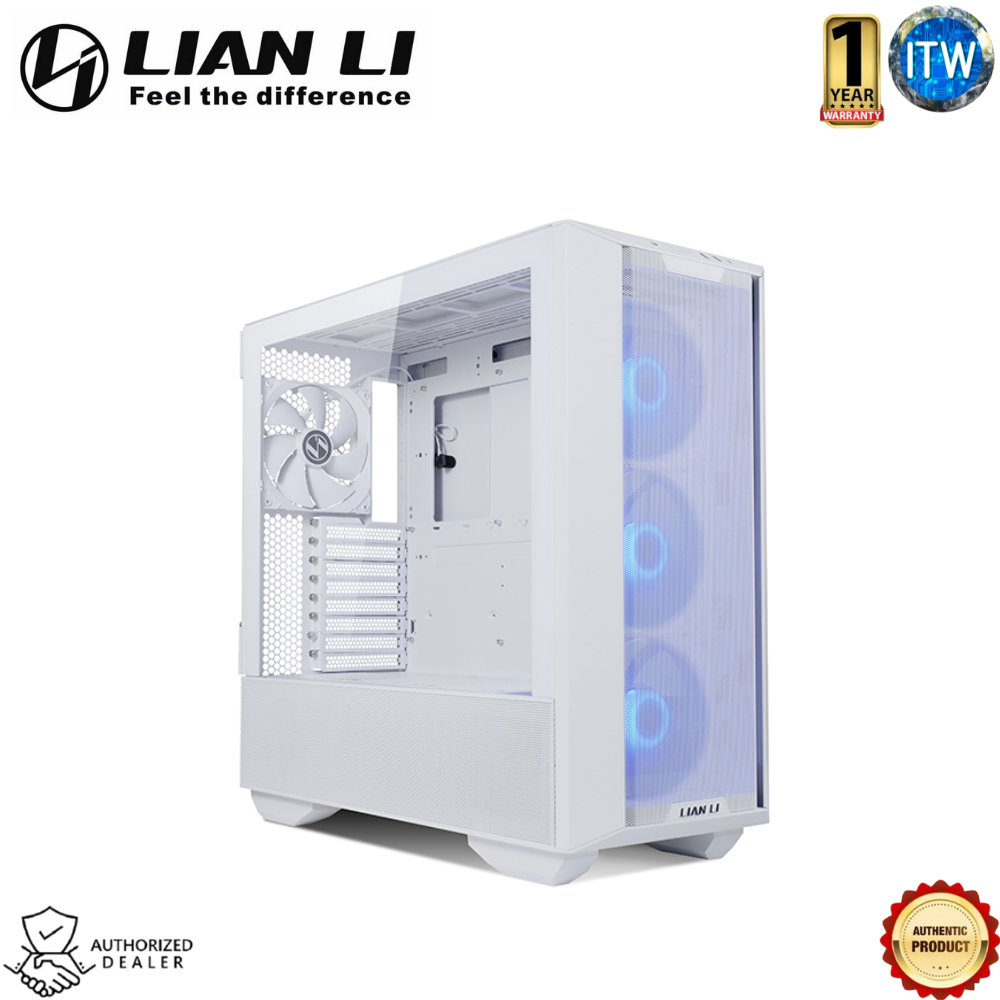

LANCOOL III
- Mid-tower modular chassis for all kinds of configurations
- Equipped with 4 × 140 PWM fans (ARGB or non-RGB)
- Featured airflow optimized mesh structure and hinged side panels
- Supports up to 420 radiator or 3 x 360 radiators and a maximum of 10 fans
- Offers 12 storage drives mounting locations
- Upgraded cable management solution for a clean build
AVAILABLE IN– TWO COLORS, TWO MODELS
The LANCOOL III black features a premium hairline brushed aluminum element that looks as good as it feels, while the LANCOOL III white features a minimalist white powder coating. The tempered glass panel allows showing off the internal components.
SPECIFICATIONS
PRODUCT NAME
LIAN LI LANCOOL III RGB
MODEL
LANCOOL 3R-X
LANCOOL 3R-W
COLOR
Black
White
DIMENSION
(D) 526mm x (W) 238mm x (H) 523mm
MOTHERBOARD
E-ATX (width: under 280mm)/ATX/MICRO-ATX/MINI-ITX
PSU CLEARANCE
ATX (Under 220mm)
MATERIALS
Aluminum (Door handles)
0.8mm SGCC (exterior and interior)
4.0mm tempered glass (both sides)
INCLUDED FANS
Front: 3 x 140mm ARGB PWM fans
(300~1650 RPM / DC 12 V, 0.23A, 0.35A / 83.5 CFM / 2.3 mm H2O / 33dB-A)
Rear: 1x 140mm PWM fan
(200~1800 RPM / DC 12 V, 0.24A / 83.5 CFM / 2.3 mm H2O / 33dB-A)
FAN SUPPORT
Front (multi-way fan/radiator bracket): 3 x 120mm or 3 x 140mm
Top: 3 x 120 or 3 x 140mm
Rear: 1 x 120mm or 140mm
Above PSU Chamber: 3 x 120mm
RADIATOR SUPPORT
Front: 360mm or 420mm
Top: 360mm or 420mm
Above PSU Chamber: 360mm
GPU LENGTH CLEARANCE
435mm (Max)
CPU HEIGHT CLEARANCE
187mm (Max)
STORAGE
Behind MB tray: 2 x 2.5″ SSD
Behind right side PSU shroud panel: 3 x 2.5’’ SSD
Hard drive cage: 4 x 3.5″ HDD/2.5″ SSD
Above PSU chamber: 3 x 2.5″ SSD
EXPANSION SLOT
8
IO PORTS
1 x Power Button
1 x Reset Button
1 x Light Color Button (C)
1 x Light Mode Button (M)
2 x USB 3.0
1 x USB Type C
1 x Audio
DUST FILTERS
1 x Bottom (Tray)
WARRANTY
1 year
