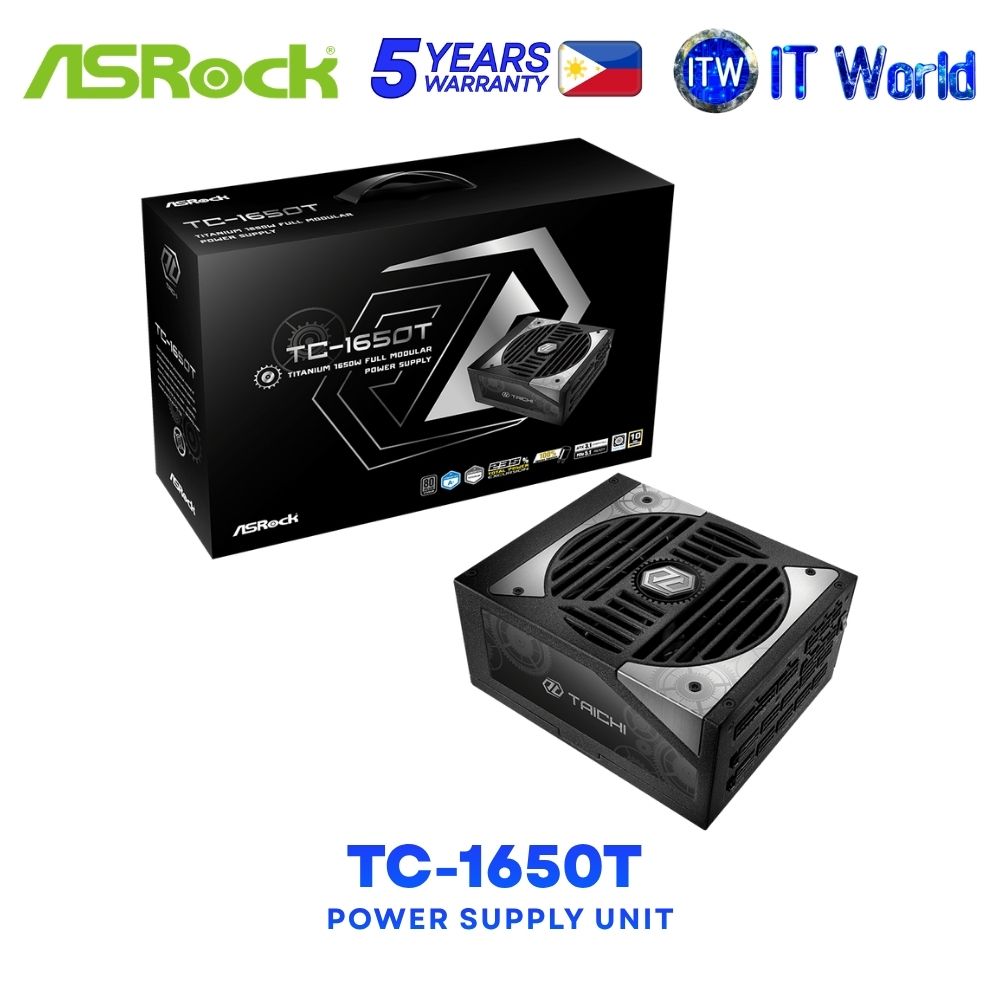

ASRock TC-1650T 1650W 80+ Titanium ATX3.1 & PCIe5.1 Ready Fully Modular Power Supply Unit
⚡ Power your high-performance PC build with the ASRock TC-1650T 1650W 80 PLUS Titanium Power Supply Unit, designed with ATX 3.1 and PCIe 5.1 readiness, premium components, and advanced cooling features. Built for reliable and efficient power delivery, this fully modular PSU combines high-end certification, intelligent fan control, and comprehensive protection.
Key Features & Highlights
🏆 80 PLUS Titanium Certified – Delivers Titanium-level power efficiency.
💎 Cybenetics TITANIUM / LAMBDA A+ Certified – Recognized for efficiency and acoustic performance.
🔌 ATX 3.1 & PCIe 5.1 Ready – Designed with support for next-generation power requirements.
🧩 Fully Modular Cable Design – Allows flexible cable connections and cleaner cable management.
🌈 Dual-Color Native 12V-2x6 Connector – Features a dual-color design with PCIe 5.1 Cable TempGuard.
🇯🇵 100% Japanese Capacitors – Equipped with highly reliable Japanese capacitors.
🌬️ 135mm Striped Axial FDB Fan – Designed for efficient cooling.
🎛️ iCOOL Intelligent Fan Control – Includes a selectable iCOOL Mode switch.
⚡ 5V BOOST Mode – Features a selectable 5V BOOST switch.
🛡️ Comprehensive Protection – Supports OCP, SCP, OVP, UVP, OTP, and OPP protection.
🔋 235% Total Power Excursion – Supports a total power excursion rating of 235%.
⏳ 100,000 Hours MTBF – Rated mean time between failures at 25°C.
Technical Specifications
⚡ Brand: ASRock
⚡ Model: TC-1650T
⚡ Product Type: Fully Modular Power Supply Unit
⚡ Total Power: 1650W
⚡ Efficiency Certification: 80 PLUS Titanium
⚡ Cybenetics Certification: TITANIUM / LAMBDA A+
⚡ ATX Version: ATX 3.1
⚡ PCIe Compatibility: PCIe 5.1 Ready
⚡ Continuous 12V Output: 137.5A
⚡ Cooling Fan: 135mm Striped Axial FDB Fan
⚡ iCOOL Mode: Yes (Switch)
⚡ 5V BOOST: Yes (Switch)
⚡ Capacitors: All Japanese
⚡ PCIe 5.1 Cable TempGuard: Yes
⚡ Total Power Excursion: 235%
⚡ MTBF: 100,000 Hours @ 25°C
⚡ Protection Features: OCP, SCP, OVP, UVP, OTP, OPP
Cable Type
🔌 24-pin & 12+4-pin: Sleeved
🔌 Others: Individual Braided Pattern
AC Input
🔌 115–240V~, 50–60Hz, 15–8A
🔌 100–240V~, 50–60Hz, 15–8A
Connector Configuration
🔌 1 × 24-pin Motherboard Connector
🔌 2 × EPS 12V CPU Connectors (4+4-pin)
🔌 2 × PCIe 5.1 Connectors (12+4-pin) Dual Color
🔌 8 × PCIe Connectors (6+2-pin)
🔌 6 × 4-pin Peripheral Connectors
🔌 12 × SATA 5-pin Connectors
Product Dimensions
📦 (L × W × H): 180 × 150 × 86 mm
