Product name: Itw | MSI SPATIUM M470 PCIe 4.0 NVMe M.2 1TB and 2TB SSD
SPECIFICATIONS

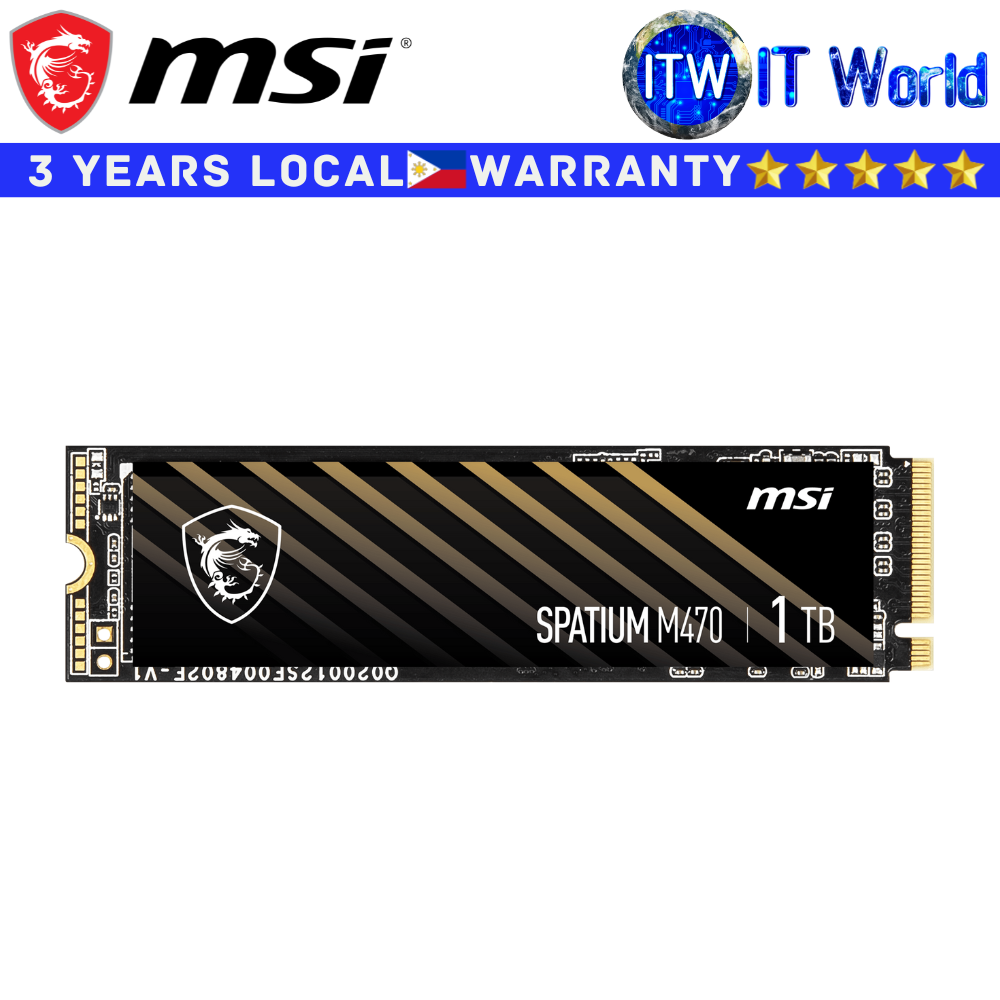

SPATIUM M470 PCIe 4.0 NVMe M.2 1TB
Model name: SPATIUM M461 PCIe 4.0 NVMe M.2
Capacity: 1TB
Controller: Phison E16
Flash memory: 3D NAND
Dram cache: 1GB DDR4
Form factor: M.2 2280
Interface: PCIe Gen4x4, NVMe 1.3
Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential read up to (MB/S): 5000
Sequential write up to (MB/S): 4400
Random read up 4KB up to (IOPS): 600,000
Random write up 4KB up to (IOPS): 600,000
Maximum operating power (W): 6.3
Idle power PS3 (MW): 20
Low power L1.2 (MW): 2
Operatating temperatures: 0°C – 70°C
Storage temperatures: -40°C – 85°C
Terabytes written (TBW): 1600
Mean time etween failure (MTBF): Up to 1,700,000 Hours
Advance features:
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
Pyrite (Encryption, Data Security)

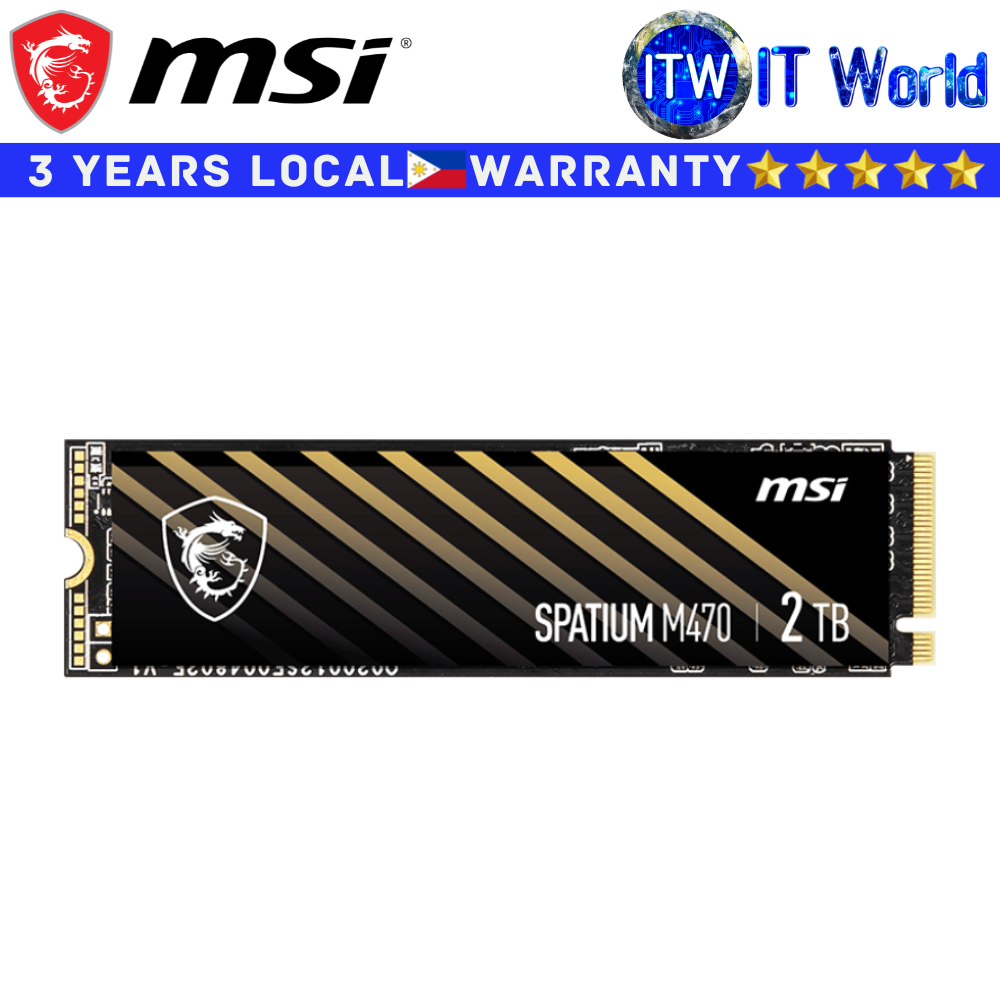

SPATIUM M470 PCIe 4.0 NVMe M.2 2TB
Model name: SPATIUM M461 PCIe 4.0 NVMe M.2
Capacity: 2TB
Controller: Phison E16
Flash memory: 3D NAND
Dram cache: 2GB DDR4
Form factor: M.2 2280
Interface: PCIe Gen4x4, NVMe 1.3
Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential read up to (MB/S): 5000
Sequential write up to (MB/S): 4400
Random read up 4KB up to (IOPS): 600,000
Random write up 4KB up to (IOPS): 600,000
Maximum operating power (W): 7.0
Idle power PS3 (MW): 25
Low power L1.2 (MW): 2
Operatating temperatures: 0°C – 70°C
Storage temperatures: -40°C – 85°C
Terabytes written (TBW): 3300
Mean time etween failure (MTBF): Up to 1,700,000 Hours
Advance features:
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
Pyrite (Encryption, Data Security)
