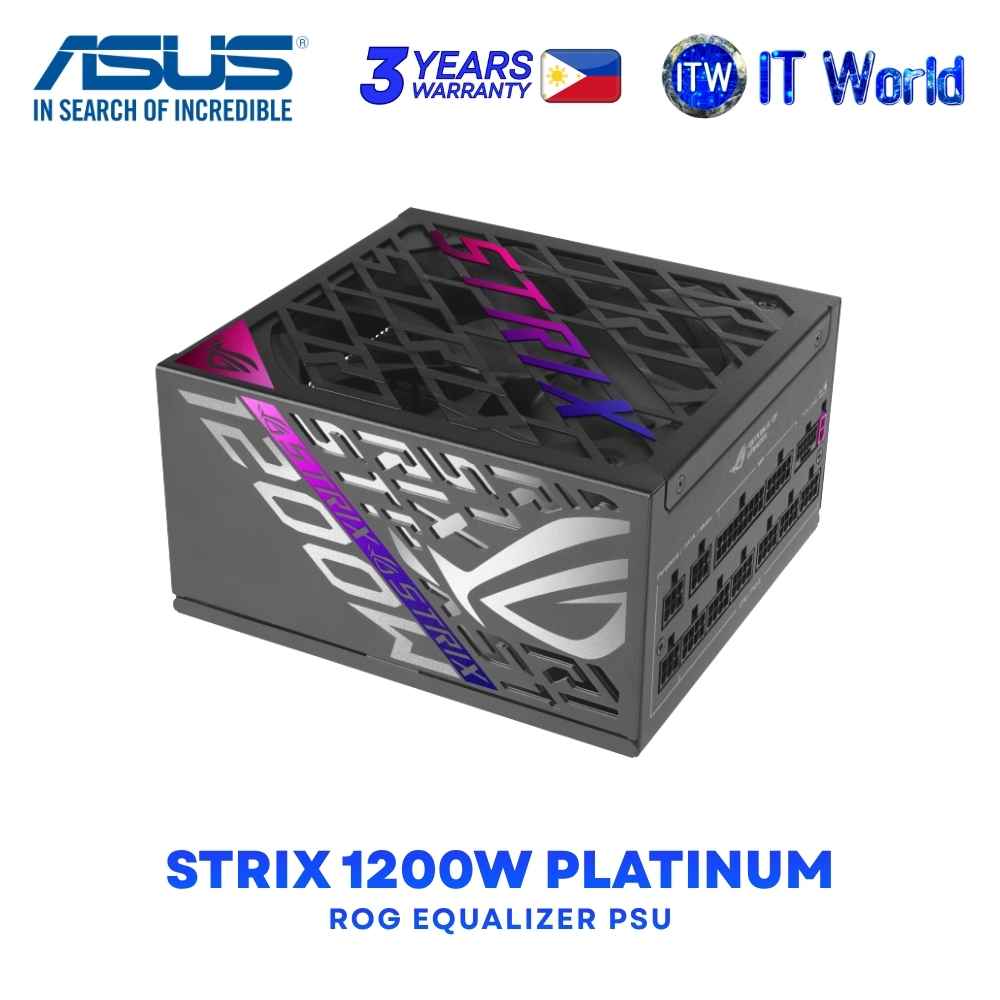

ASUS ROG Strix 1200W Platinum ATX 3.1 80+ Platinum PSU ROG-STRIX-1200P-GAMING-E
⚡ ASUS ROG Strix 1200W Platinum (ROG Equalizer)
Power up your high-performance PC build with the ASUS ROG Strix 1200W Platinum, featuring 1200W total output, 80 PLUS Platinum efficiency, and ATX 3.1 compatibility. Equipped with a ROG EQUALIZER 12V-2x6 PCIe cable with GPU-First design, multiple protection features, and a 0dB fan button for flexible cooling operation.
⭐ Key Features
⚡ 1200W Total Output – Delivers up to 1200W of power.
🏆 80 PLUS Platinum Efficiency – Cybenetics Platinum efficiency certification for both 115V and 230V.
🔌 ATX 3.1 Standard – Built to the ATX 3.1 standard.
🎮 12V-2x6 PCIe Connector – Includes a ROG EQUALIZER 12V-2x6 PCIe cable with GPU-First design.
🛡️ Comprehensive Protection – OPP, OVP, UVP, SCP, OCP, and OTP.
🤫 0dB Fan Button – When ON, the fan spins only when the system reaches a certain load; when OFF, the fan continuously spins at all load levels.
🔇 Cybenetics Noise Level A – Certified noise level rating.
🔋 Active PFC – Active power factor correction.
⏳ Long Service Life Rating – MTBF of more than 120,000 hours at 25°C.
🛠️ 10-Year Warranty – Manufacturer-stated warranty period.
📋 Technical Specifications
Brand: ASUS ROG
Model: ROG Strix 1200W Platinum (ROG Equalizer)
Product Type: Power Supply Unit (PSU)
Form Factor: ATX12V
ATX Standard: ATX 3.1
Total Output: 1200W
80 PLUS Certification: Platinum
Cybenetics Efficiency: Platinum (115V / 230V)
PFC Type: Active PFC
AC Input Range: 100–240V AC
DC Output Rails: +3.3V, +5V, +12V, -12V, +5Vsb
Maximum Current: +3.3V 25A / +5V 25A / +12V 100A / -12V 0.3A / +5Vsb 3A
Combined Output: +3.3V and +5V: 130W / +12V: 1200W / -12V: 3.6W / +5Vsb: 15W
Protection Features: OPP / OVP / UVP / SCP / OCP / OTP
AURA SYNC: No
0dB Fan Button: Yes
MTBF: >120,000 hours at 25°C
Hazardous Materials Compliance: RoHS
Warranty: 10 years
🔌 Cable Connectors
1 × Motherboard 24/20-pin
2 × CPU 4+4-pin
1 × PCIe 16-pin (12V-2x6)
4 × PCIe 6+2-pin
6 × SATA
3 × Peripheral
