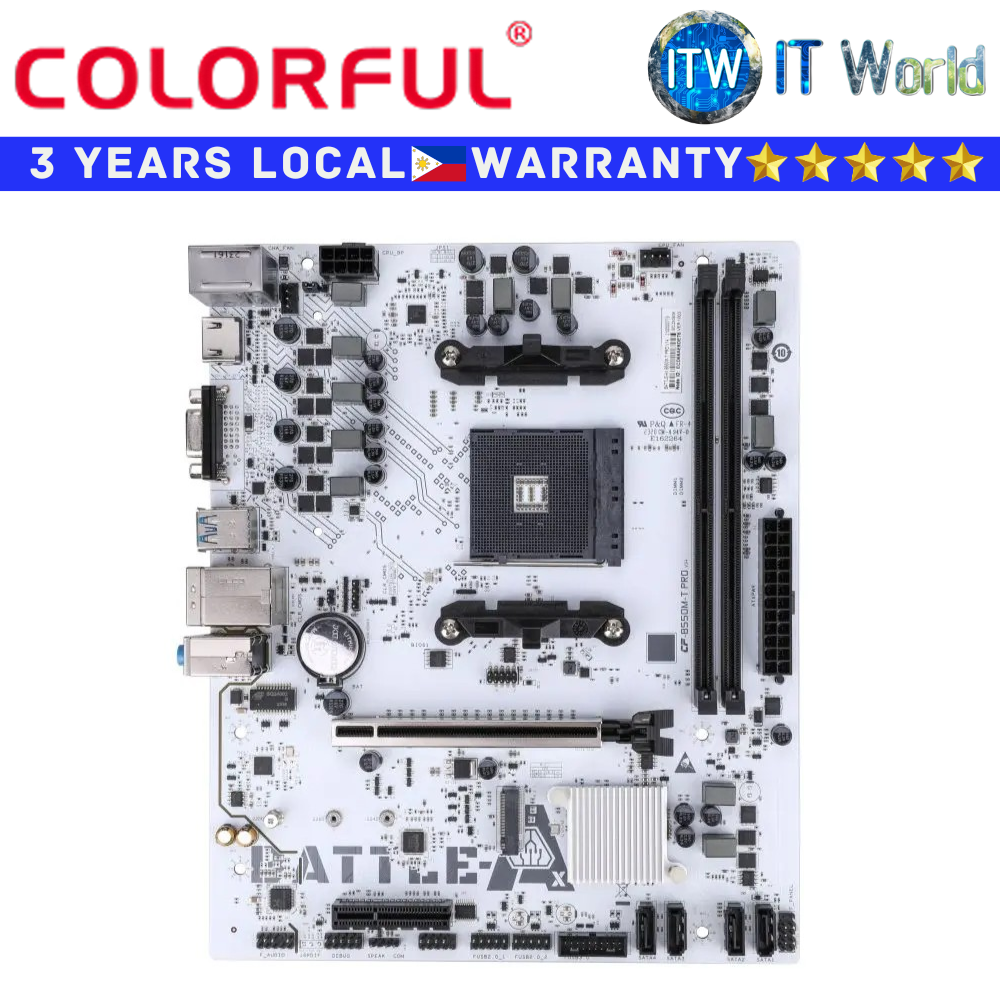

Product Name: Itw | Colorful Motherboard Battle-AX B550M-T PRO V14 White micro-ATX AM4 DDR4
Feature Highlights
* BATTLE-AX series white motherboard
* Provide 1 PCIe 4.0 x4 M.2 SSD slot
* Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
* Equipped with Realtek 2.5G fast wired network card
* Provide HDMI+VGA display interface
* Six major protective technologies ensure more stable product operation
* Strict testing of 200 processes with guaranteed quality
* Comprehensive upgrade of PCB atomization process
Specification
Model
> BATTLE-AX B550M-T PRO V14
Product Series
> BATTLE-AX series
Chipset
> AMD B550
Processor
> Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
Memory
> 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology
SATA Ports
> 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)
Board I/O
> Rear I/O
- 2×USB 2.0 interfaces
- 4×USB 3.2 Gen 1 Type-A interfaces
- 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
- 1×VGA interface
- 1×PS/2 interface
- 1×2.5G network interface
- 3×audio interfaces (audio input/audio output/microphone)
> On board
- 1×CPU fan pin
- 1×system fan pin
- 2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
- 1×12V 4-pin RGB pin
- 1×Front audio pin
- 1×front panel pin
- 1×speaker pin
- 1×Clear CMOS jumper
- 1×COM port pin
- 1×BIOS burner pin
- 1×Debug light pin
- 1×USB live control jumper
Expansion Slots
> 1×PCIe 4.0 x16 slot
> 1×PCIe 3.0 x4 slot
BIOS
> 128M UEFI, support multiple languages
Power Management
> Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor
> CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitori
LAN
> RTL8125 2.5Gbit LAN
Audio
> Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration
> M-ATX
> 197mm x 240mm
