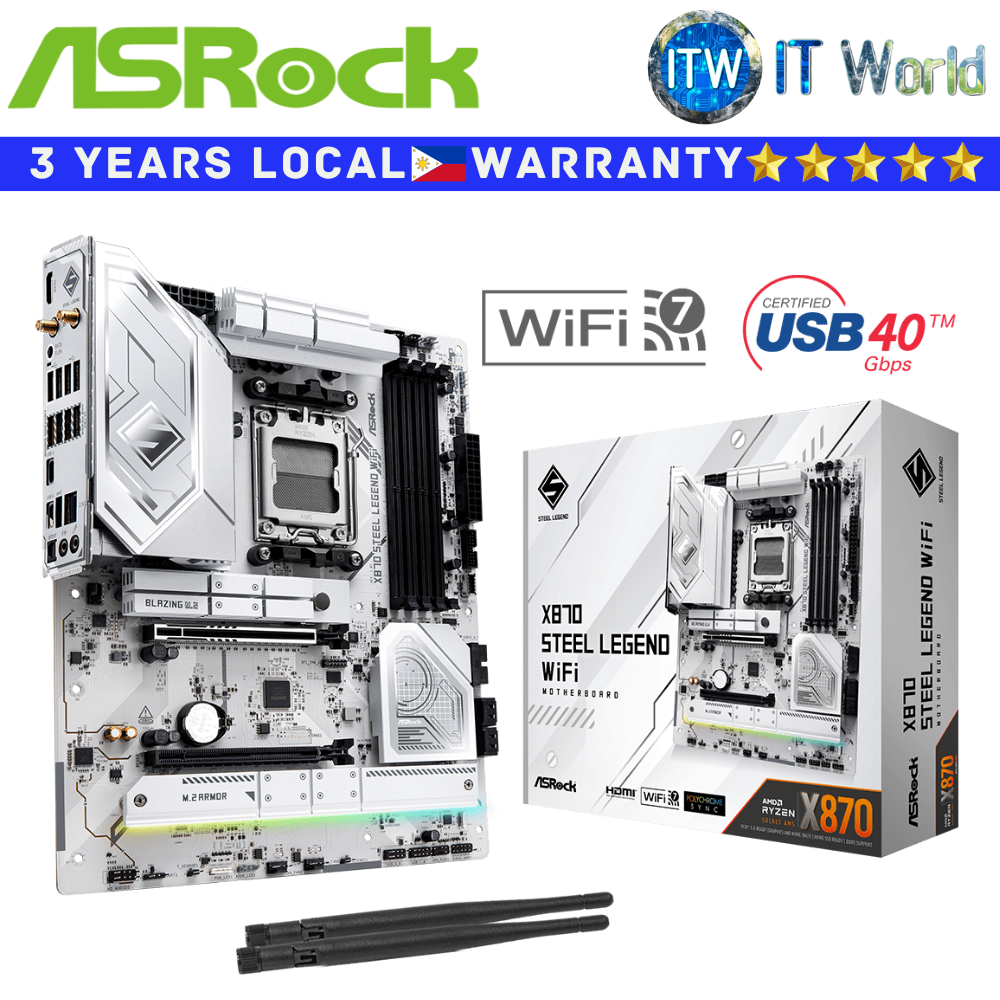

Product Name: Itw | ASRock Motherboard X870 Steel Legend Wifi ATX AM5 DDR5

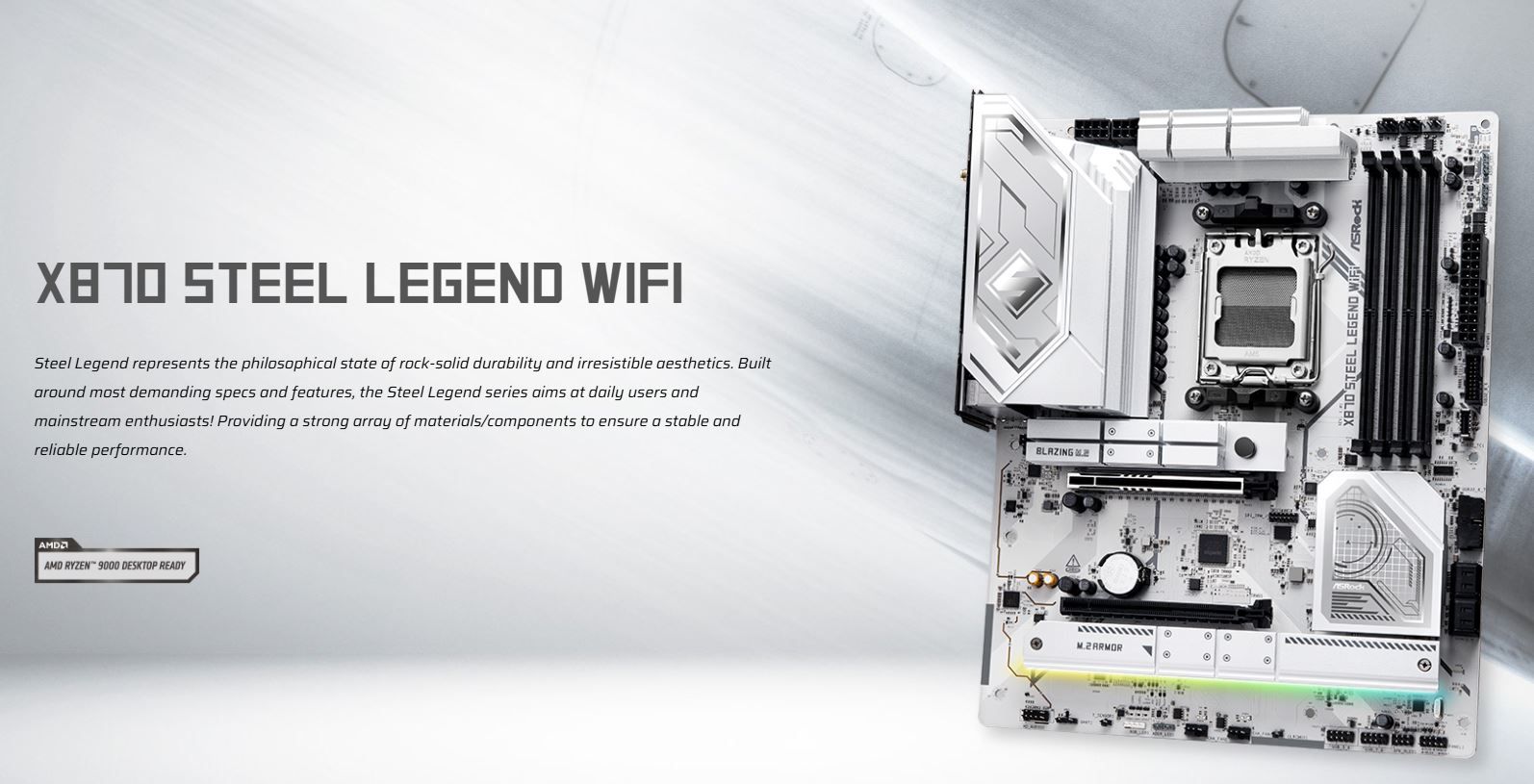

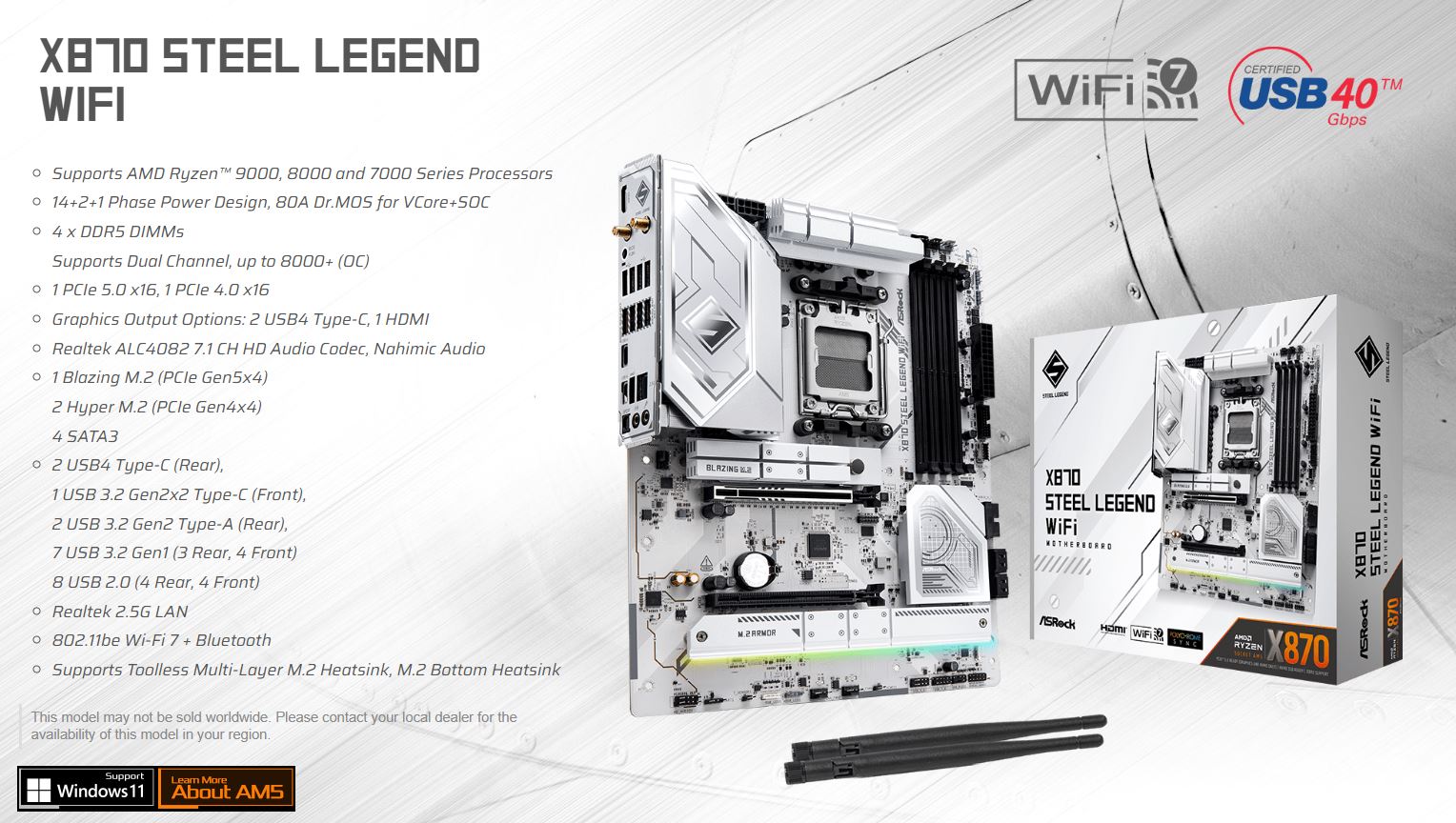

X870 Steel Legend WiFi
> Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors

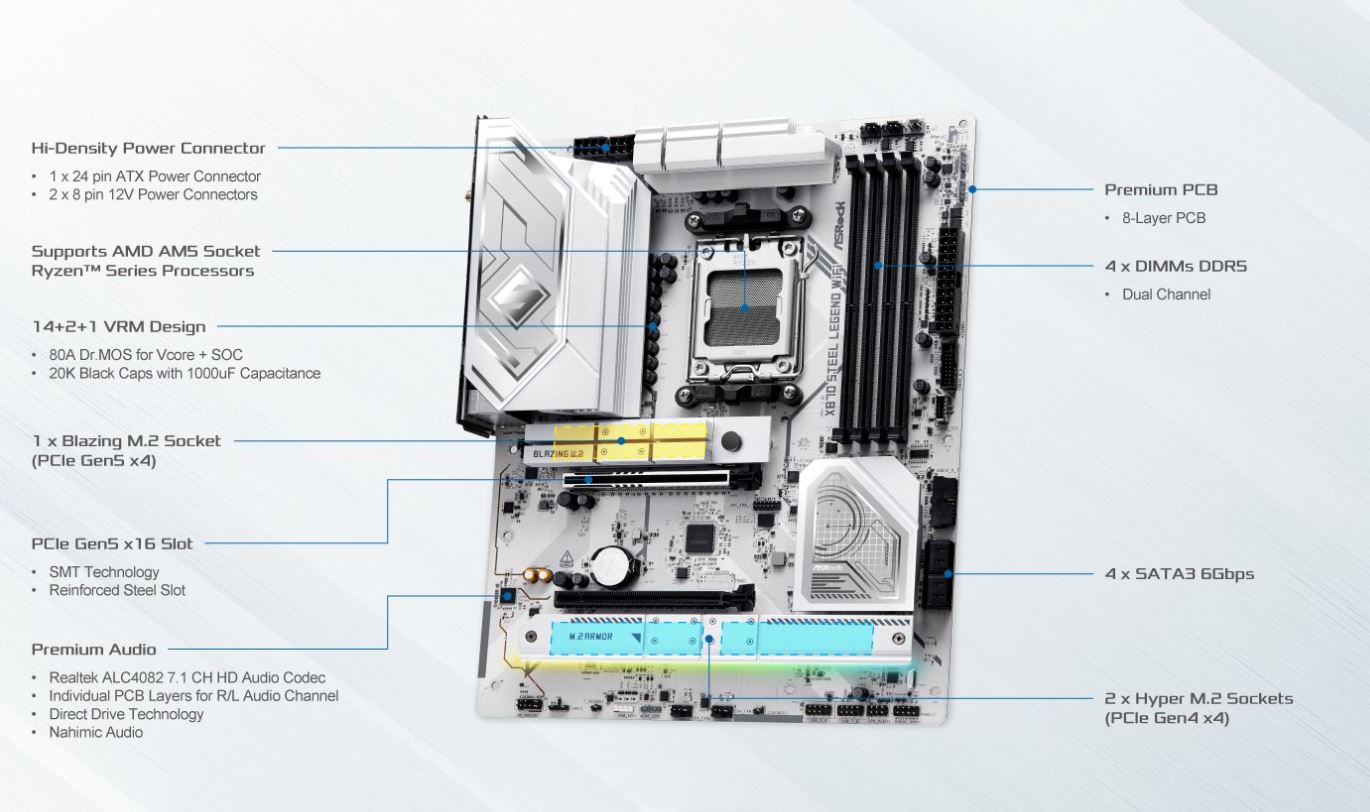

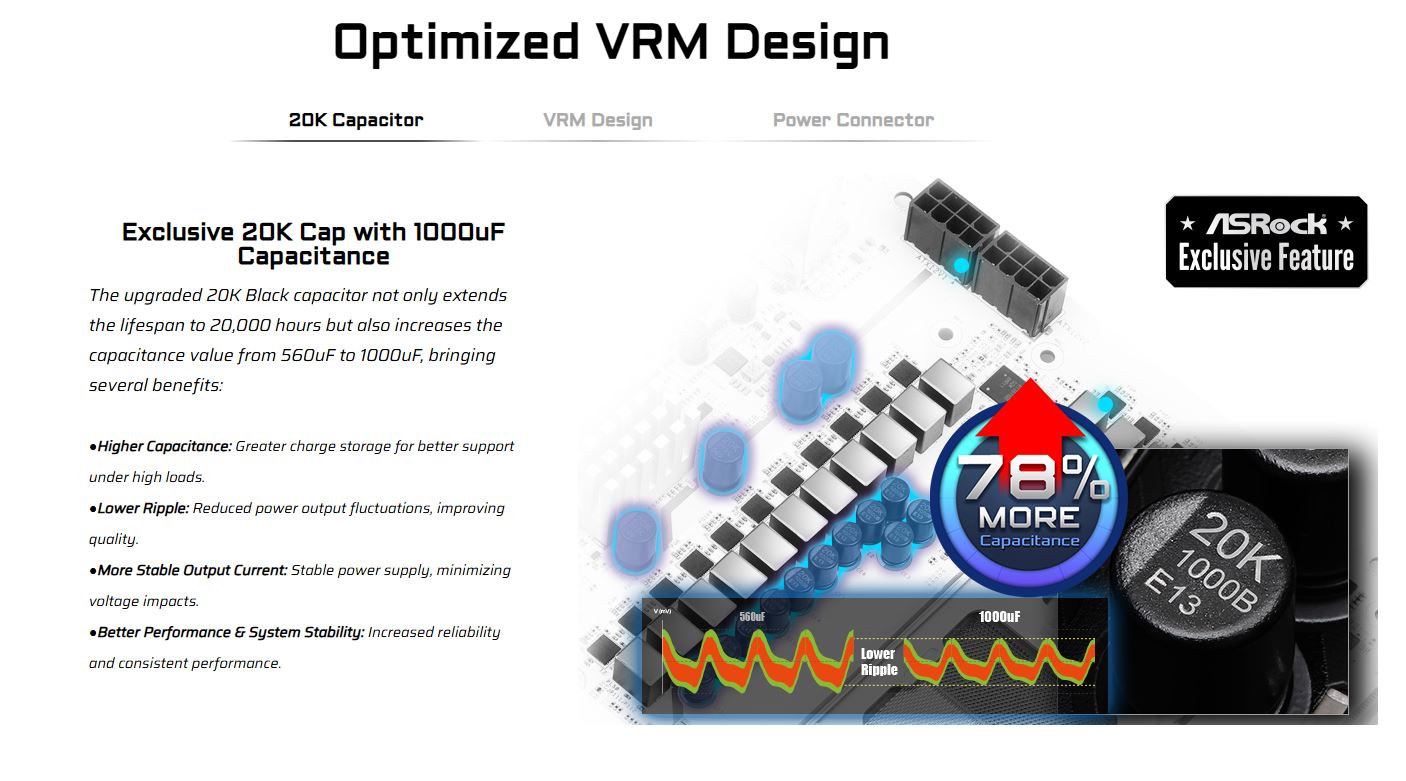

> 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
> 4 x DDR5 DIMMs
> Supports Dual Channel, up to 8000+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
> Graphics Output Options: 2 USB4 Type-C, 1 HDMI
> Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
> 1 Blazing M.2 (PCIe Gen5x4)
> 2 Hyper M.2 (PCIe Gen4x4)
> 4 SATA3
> 2 USB4 Type-C (Rear),
> 1 USB 3.2 Gen2x2 Type-C (Front),
> 2 USB 3.2 Gen2 Type-A (Rear),
> 7 USB 3.2 Gen1 (3 Rear, 4 Front)
> 8 USB 2.0 (4 Rear, 4 Front)
> Realtek 2.5G LAN
> 802.11be Wi-Fi 7 + Bluetooth

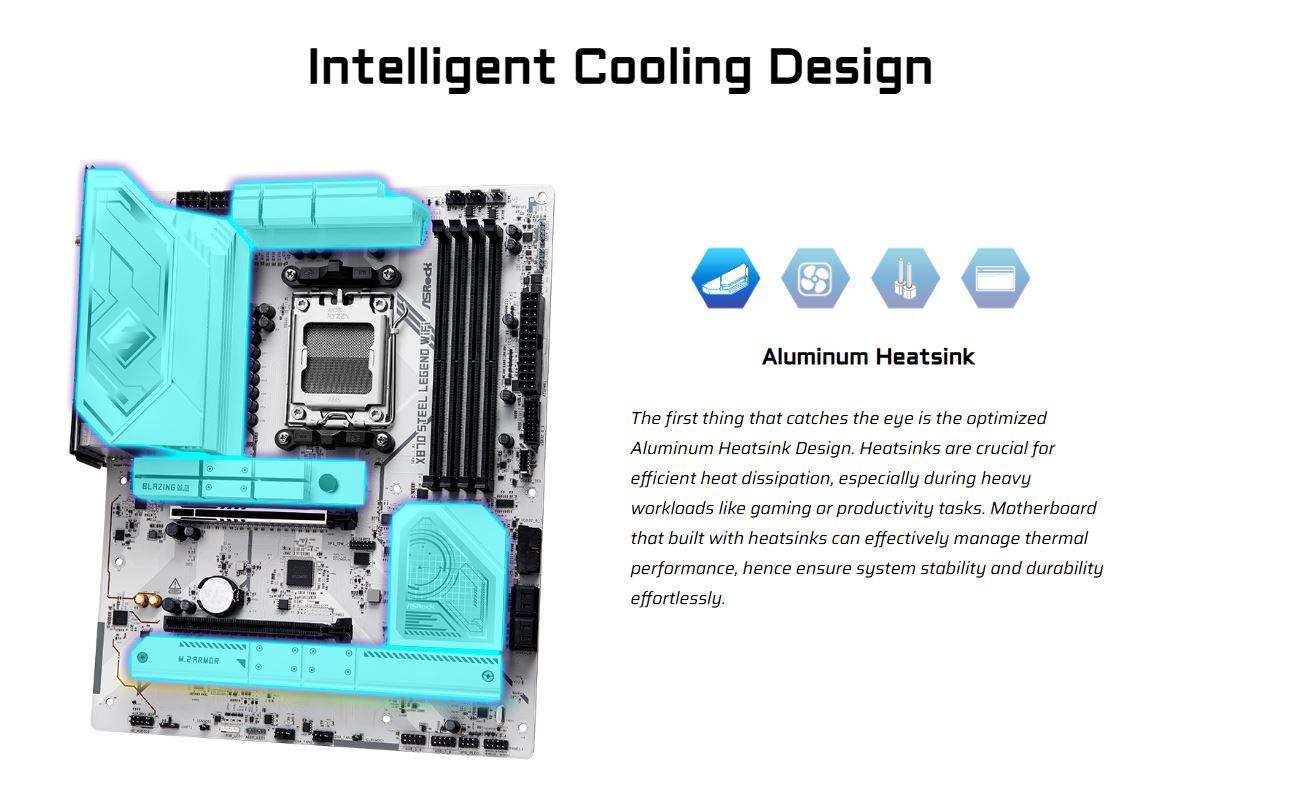

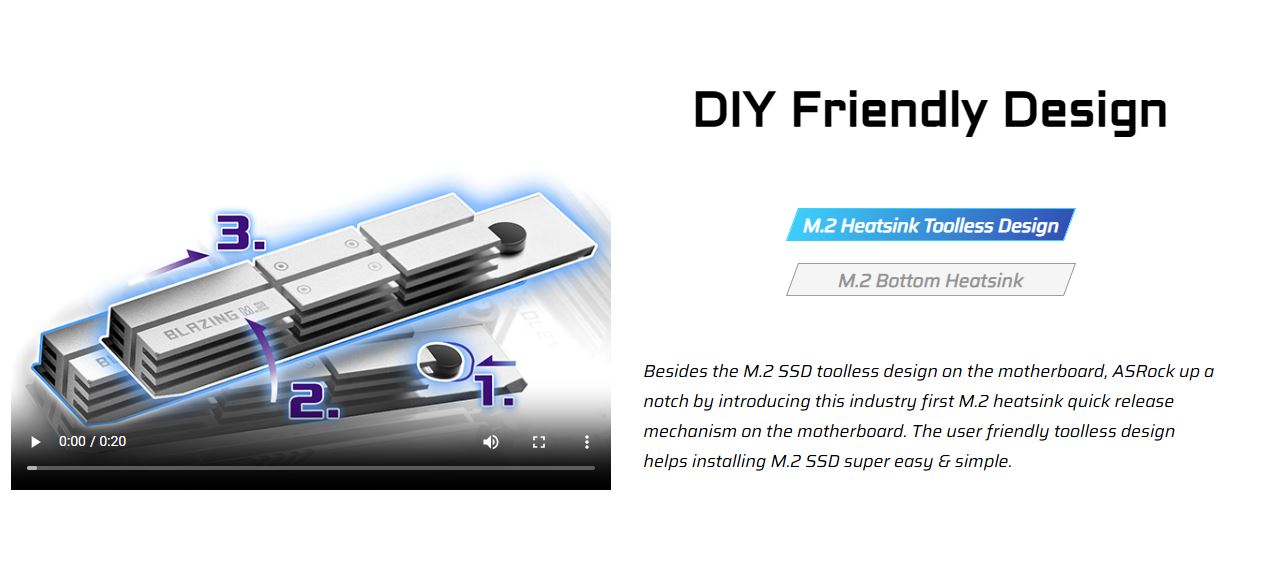

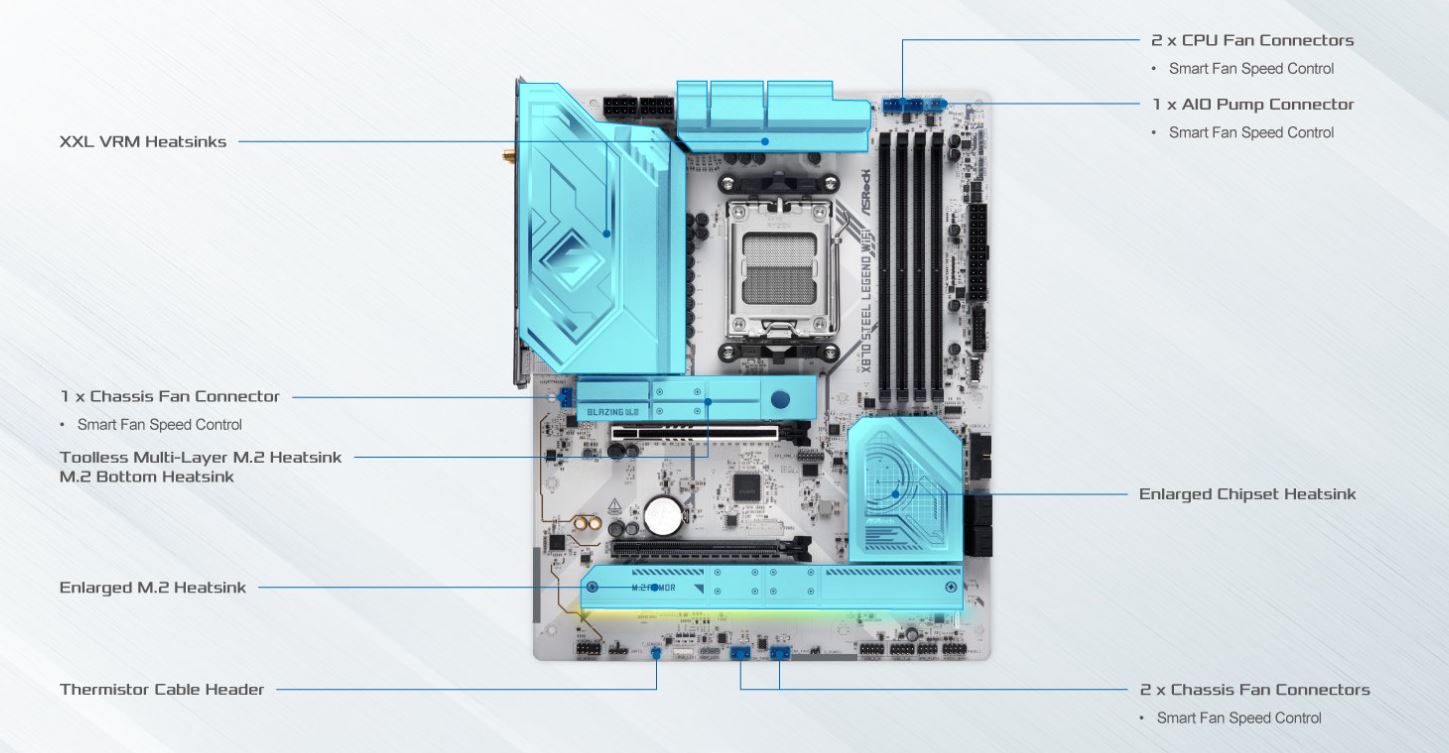

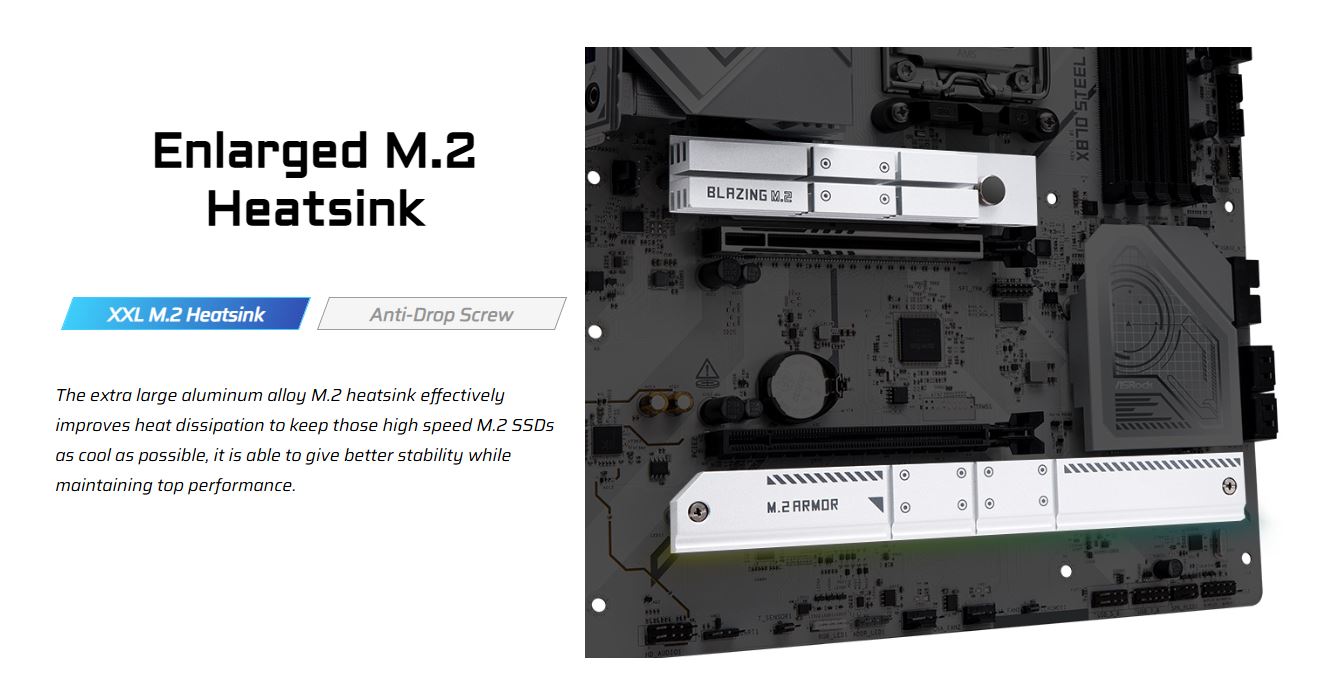

> Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset
> AMD X870
Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
> Max. capacity of system memory: 256GB

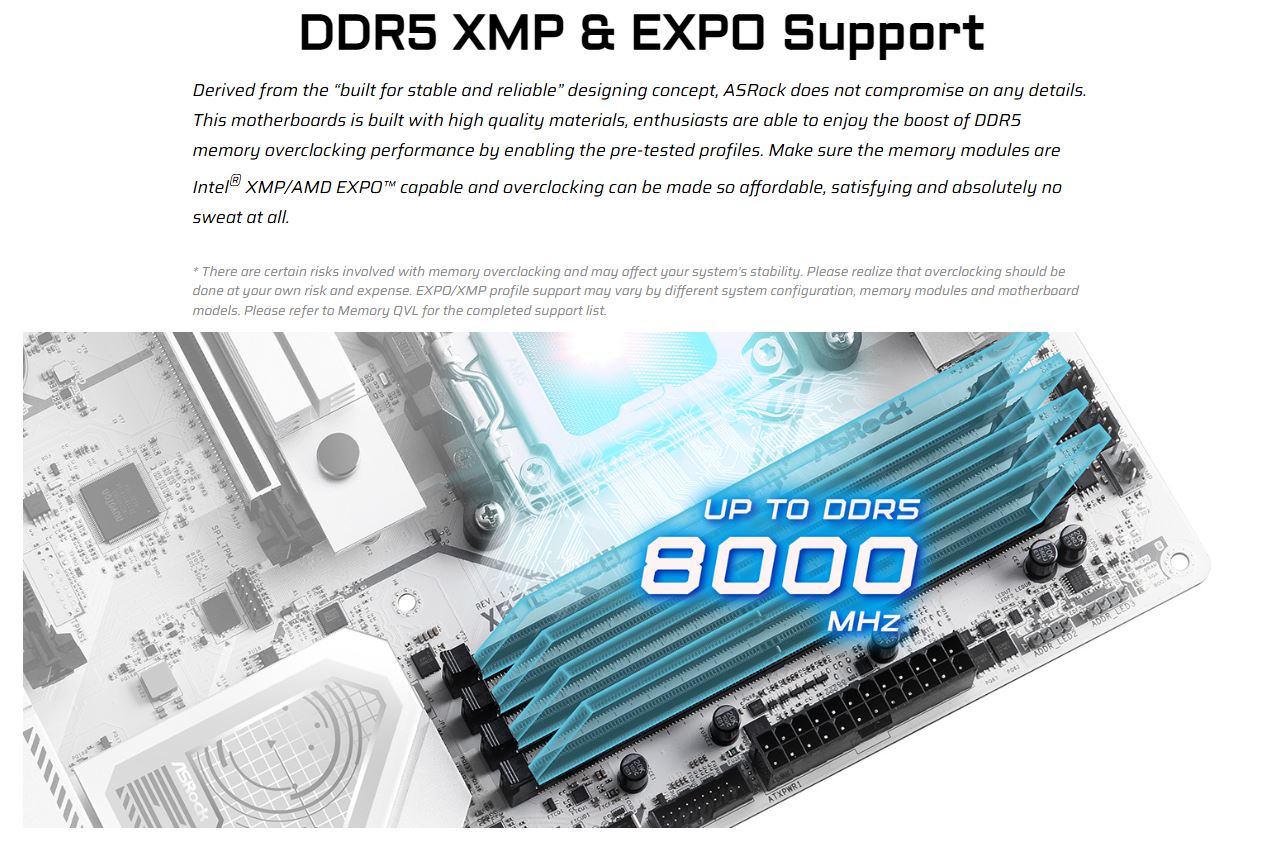

> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
> Individual PCB Layers for R/L Audio Channel
> Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
> Nahimic Audio

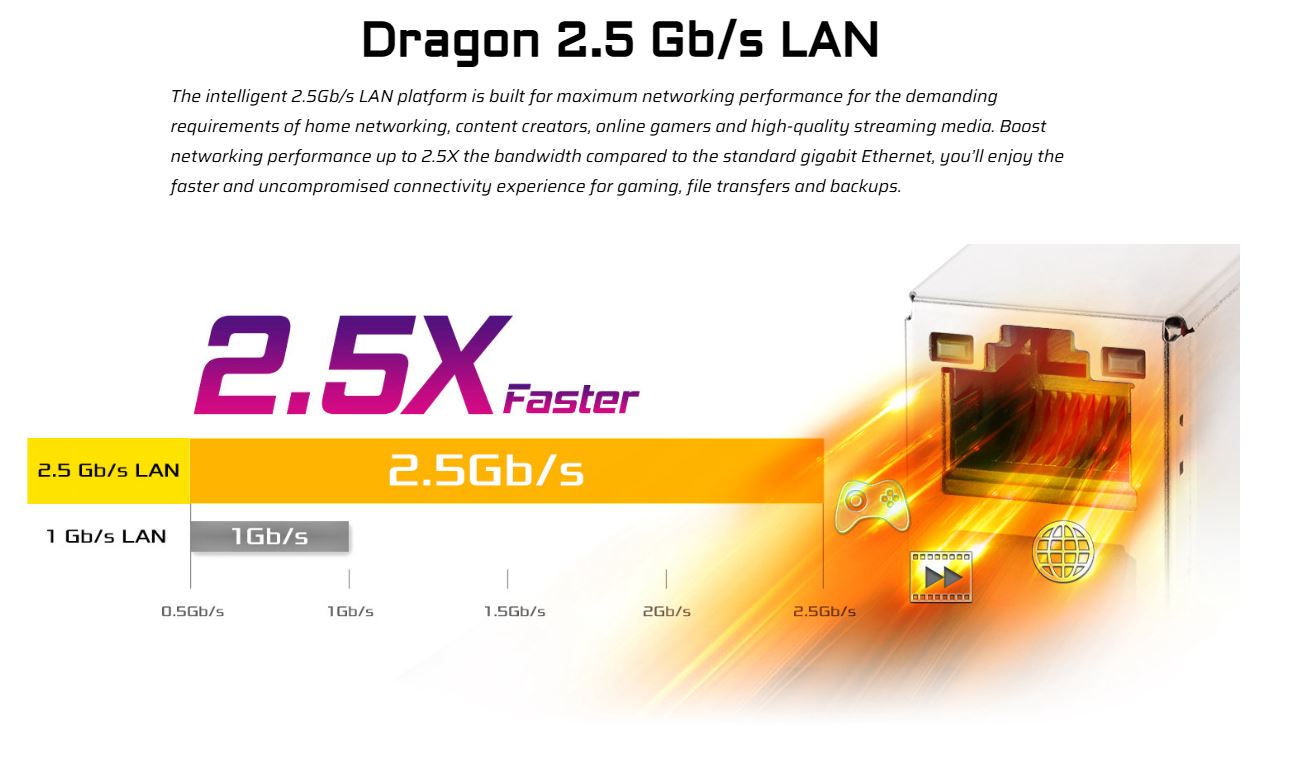

LAN
> 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
> Dragon RTL8125BG
> Supports Dragon 2.5G LAN Software
> Smart Auto Adjust Bandwidth Control
> Visual User Friendly UI
> Visual Network Usage Statistics
> Optimized Default Setting for Game, Browser, and Streaming Modes
> User Customized Priority Control
Wireless LAN
> 802.11be 2x2 Wi-Fi 7 Module
> Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
> Supports 2.4GHz/5GHz/6GHz* frequency band
> Supports 160MHz channel bandwidth with 6GHz* frequency band
> 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.4
> Supports MU-MIMO
* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
> CPU
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
> Chipset
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks
Storage

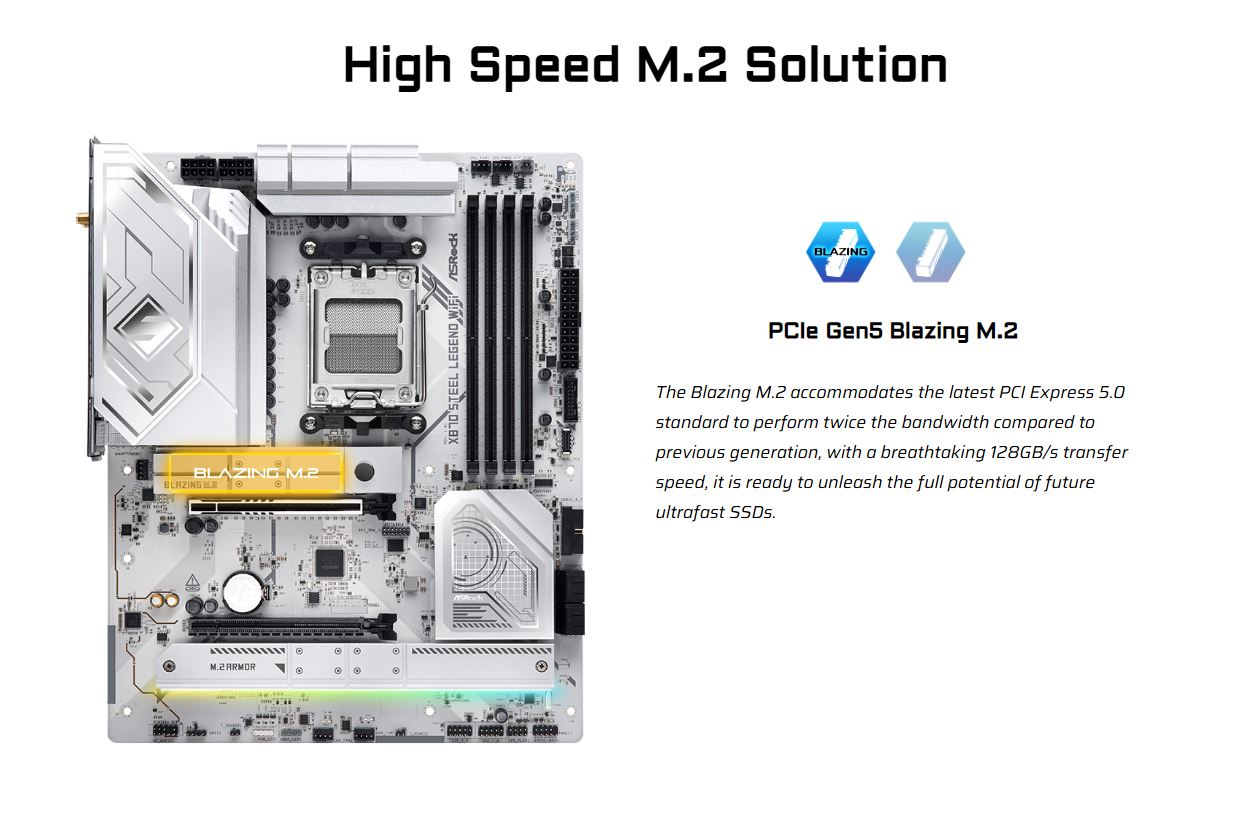

> CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
> Chipset
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
> ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
USB
> CPU
- 2 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)
> Chipset
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection

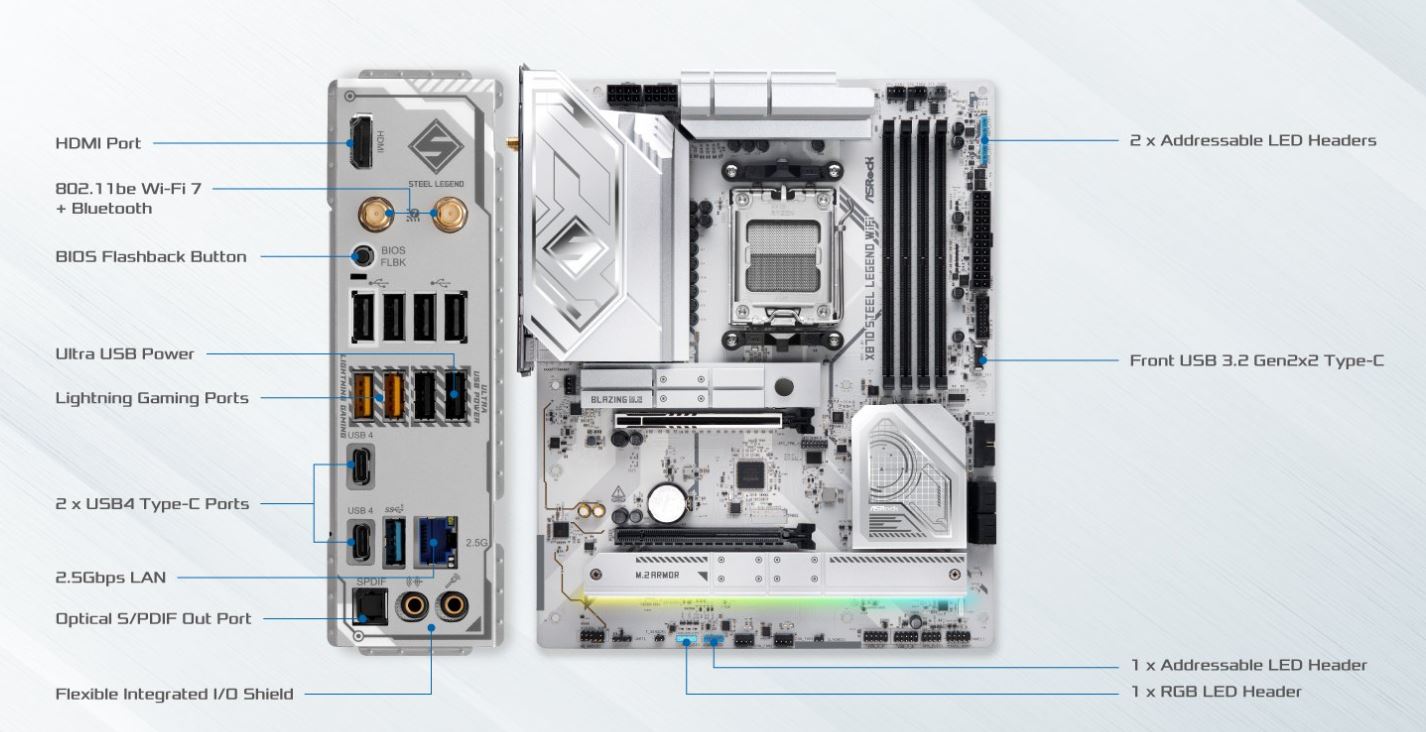

Rear Panel I/O
> 2 x Antenna Ports
> 1 x HDMI Port
> 1 x Optical SPDIF Out Port

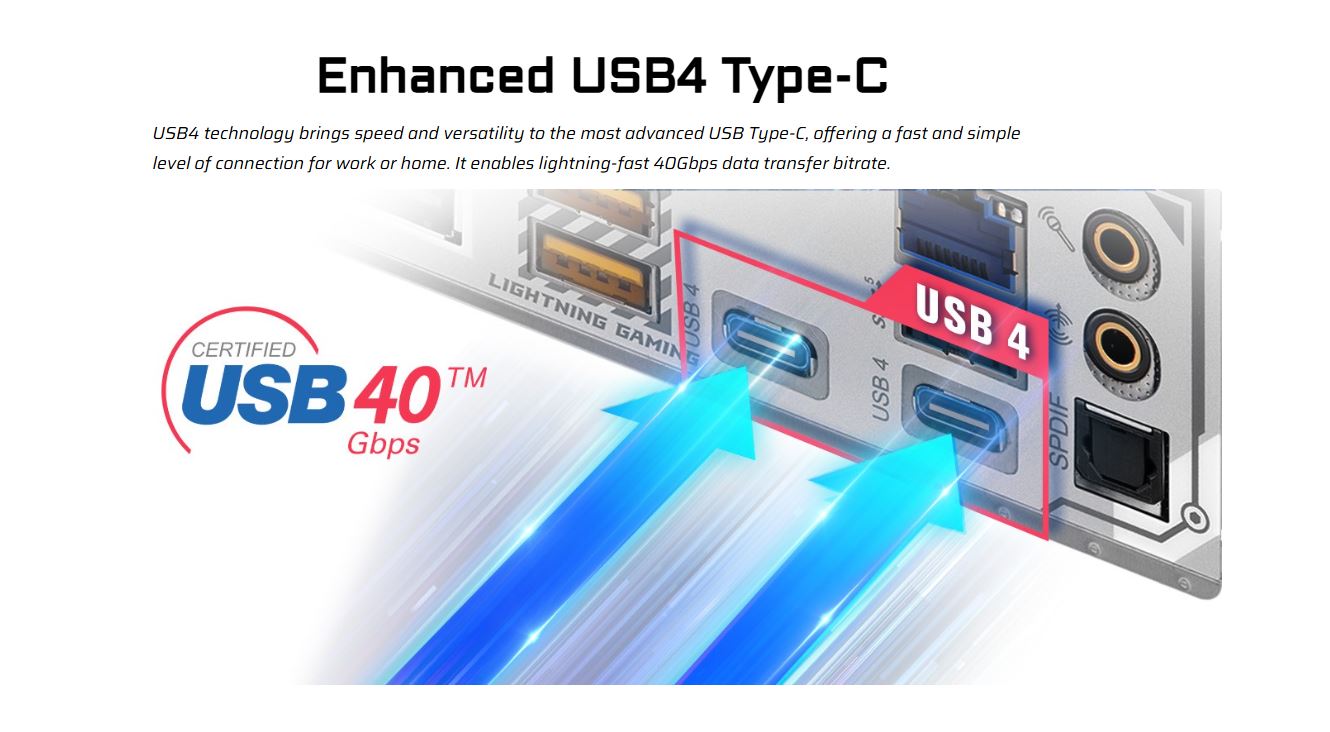

> 2 x USB4 Type-C Ports (40 Gb/s)*

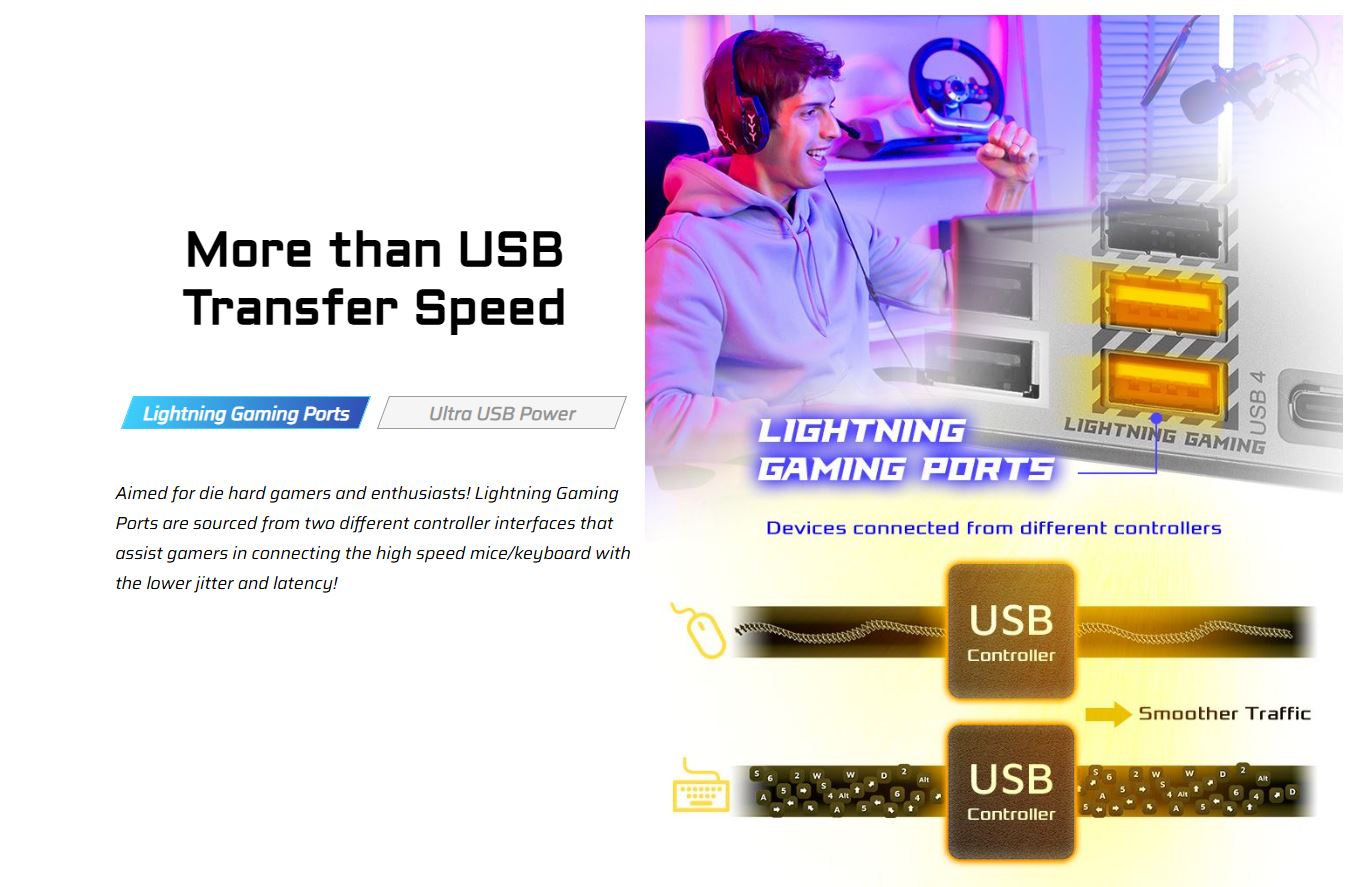

> 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports)
> 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power)
> 4 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x BIOS Flashback Button
> 1 x Line Out Jack (Gold Audio Jack)
> 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Form Factor
> ATX: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

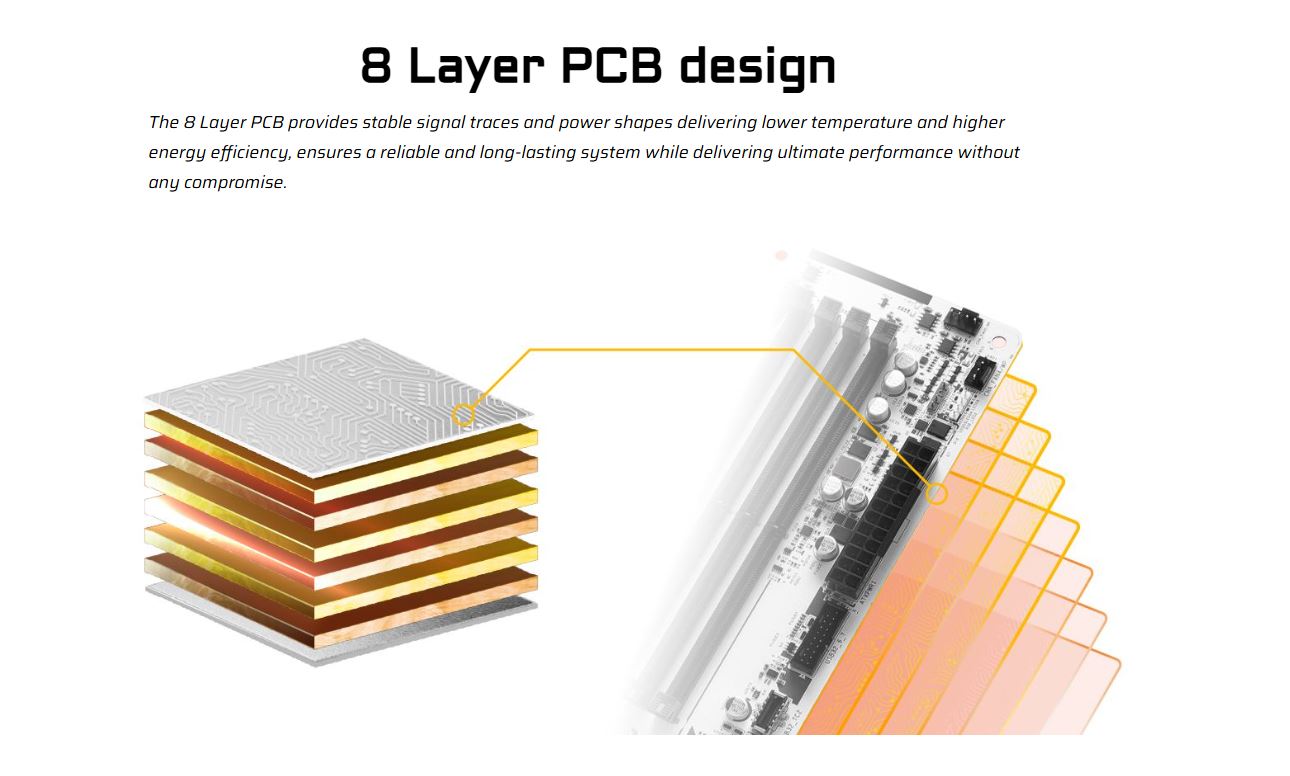

> 8 Layer PCB
